Driver or Passenger Seat Head Restraint Guide Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

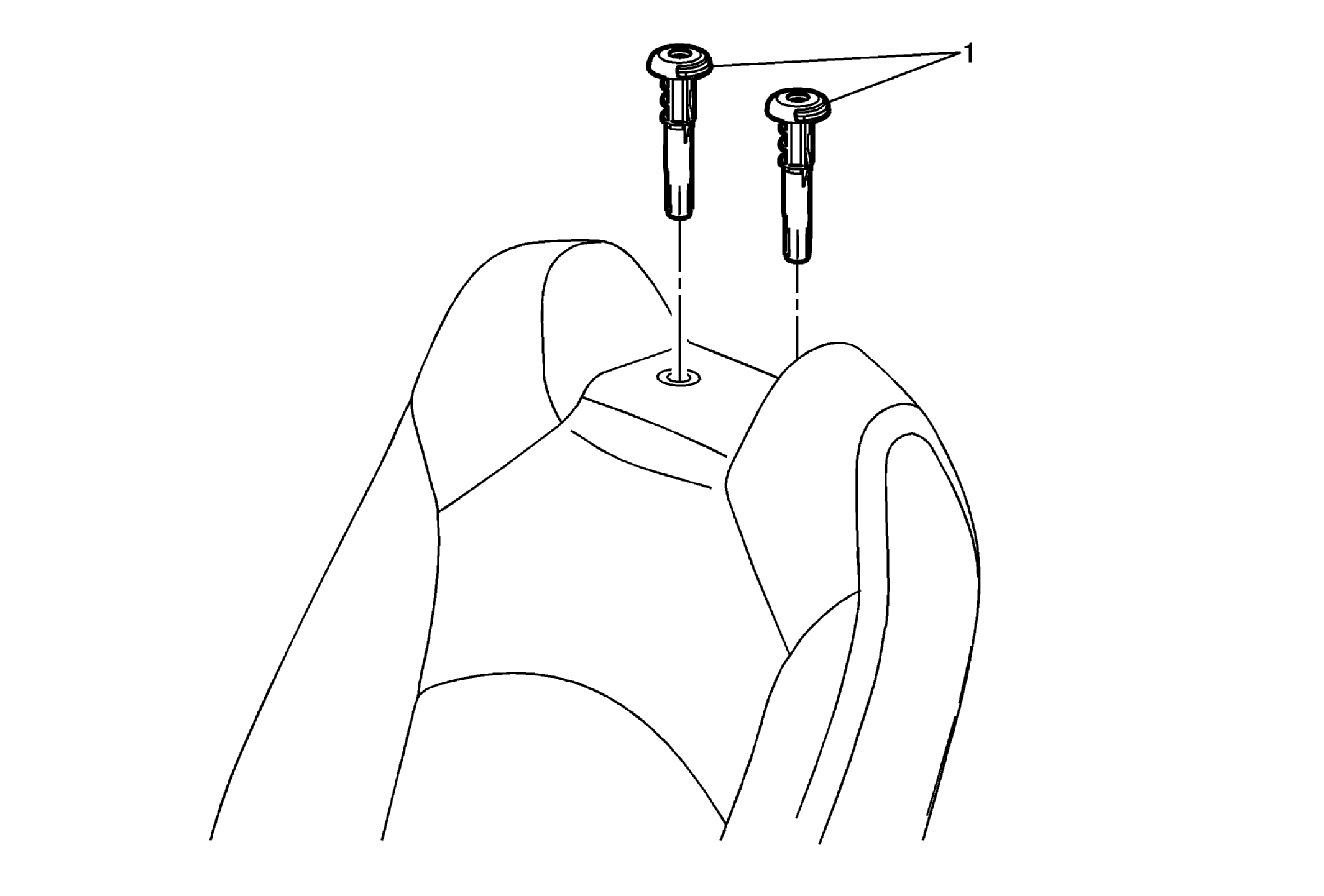

Fig 1: Driver or Passenger Seat Head Restraint Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement . Remove the driver or passenger seat back cushion finish panel. Refer to Front Seat Back Cushion Finish Panel Replacement .
1	Driver or Passenger Seat Head Restraint Guide (Qty: 2) Procedure Use a rubber mallet or equivalent to tap upward on the bottom of the head restraint guide to remove from the seat back frame.

Callout

Component Name

Preliminary Procedure

Remove the driver or passenger seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement .
Remove the driver or passenger seat back cushion finish panel. Refer to Front Seat Back Cushion Finish Panel Replacement .

Driver or Passenger Seat Head Restraint Guide (Qty: 2)
Procedure
Use a rubber mallet or equivalent to tap upward on the bottom of the head restraint guide to remove from the seat back frame.
