Driver Seat Lumbar Support Actuator Lever Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

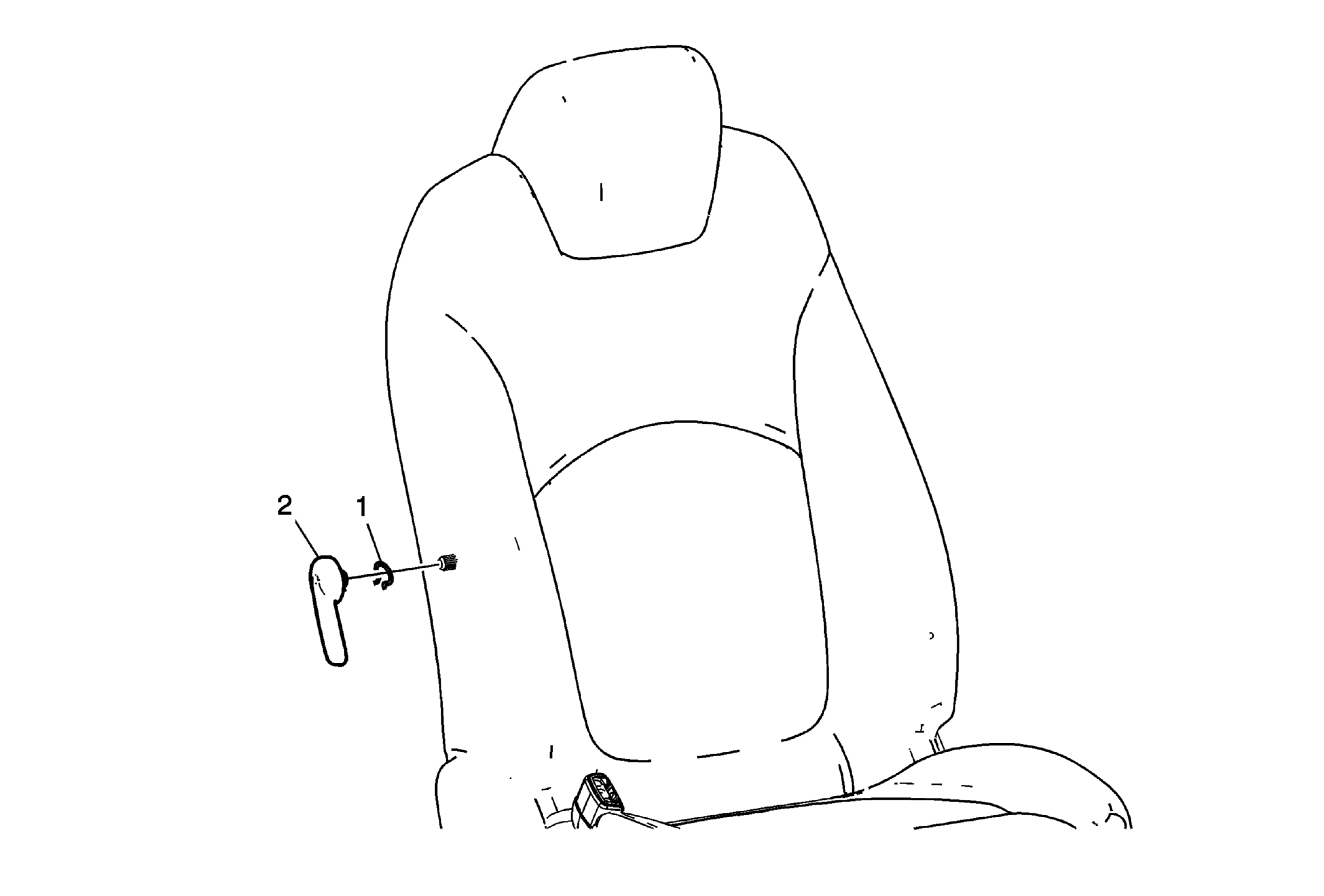

| Callout |
Component Name |
| 1 |
Front Seat Lumbar Support Actuator Lever Retainer Clip
Procedure
Using a flat-bladed tool, push the retainer clip rearward and pull outward to release the lever. |
| 2 |
Front Seat Lumbar Support Actuator Lever |
