Section 456 (Component Locations - Electrical Center Identification Views - X50A To Z88 With Z88/V92)
>>
Electrical Center Identification Views
>>
X50A Fuse Block- Underhood Bottom View
X50A Fuse Block- Underhood Bottom View
WARNING:
This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

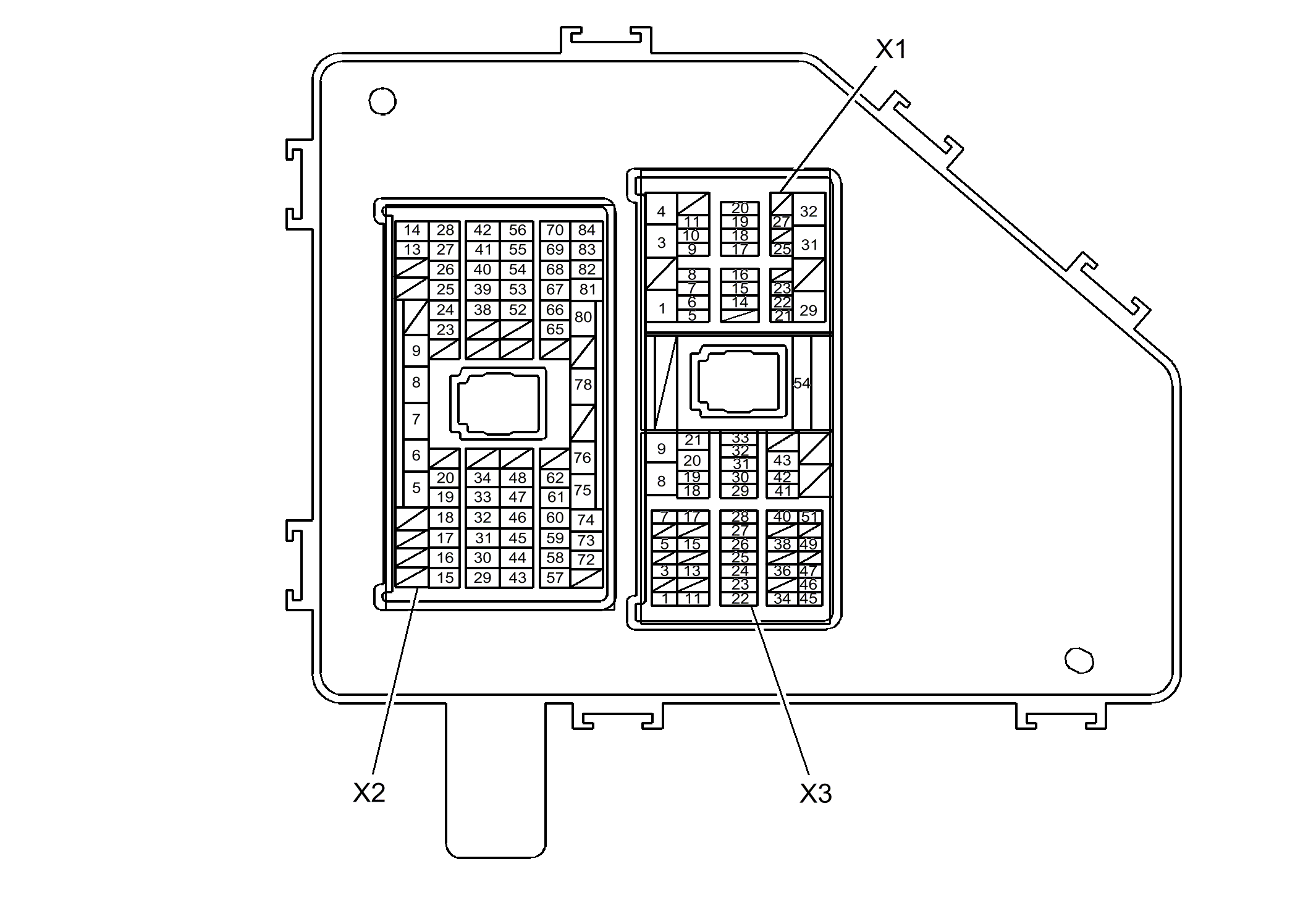

Fig 1: X50A Fuse Block- Underhood Bottom View
Courtesy of GENERAL MOTORS COMPANY
