X50A Fuse Block - Underhood Top View (Z88 with TVD)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

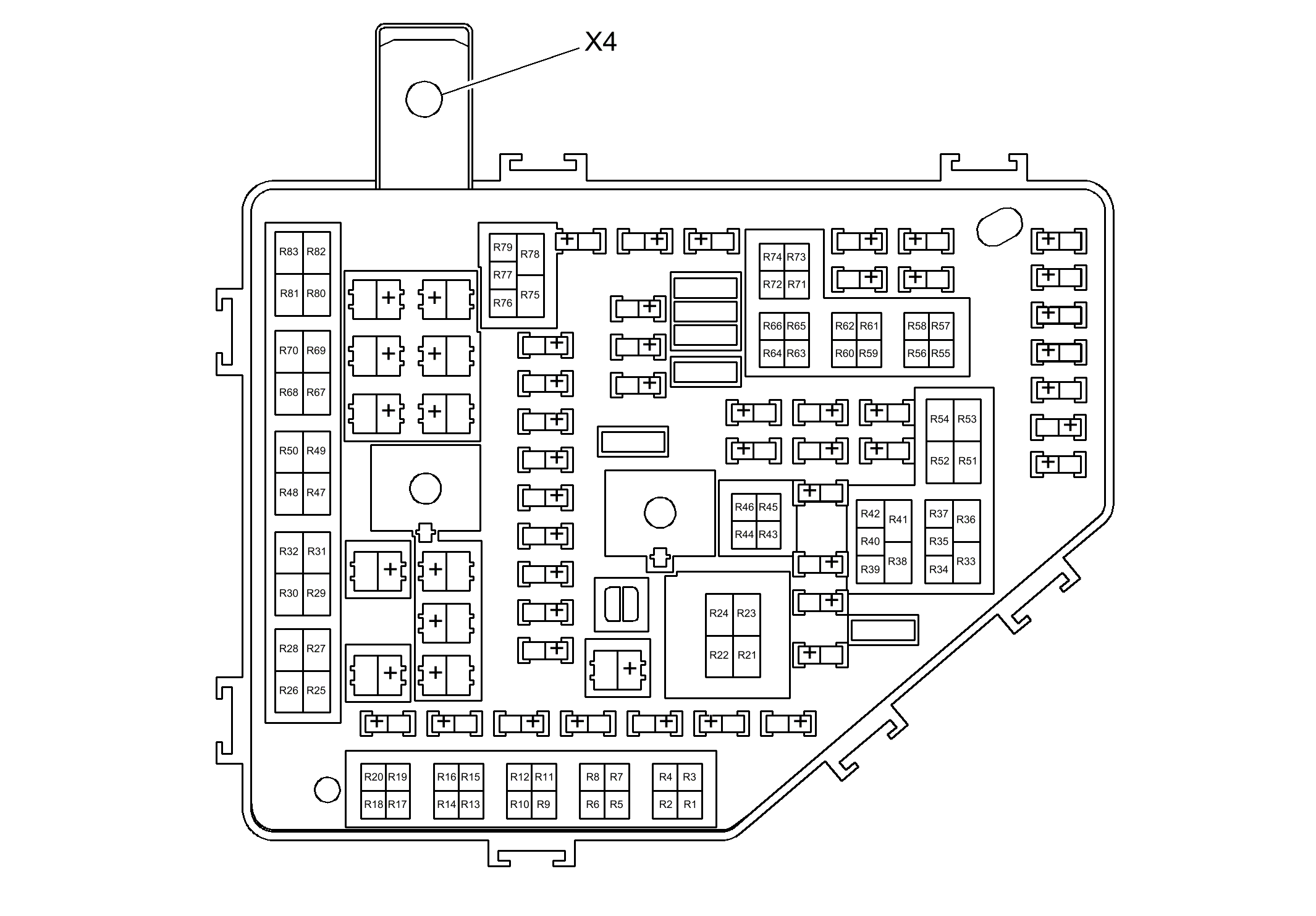

Fig 1: X50A Fuse Block - Underhood Top View (Z88 with TVD)
GM3749560Courtesy of GENERAL MOTORS COMPANY
