Rear Seat Belt Buckle Replacement (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

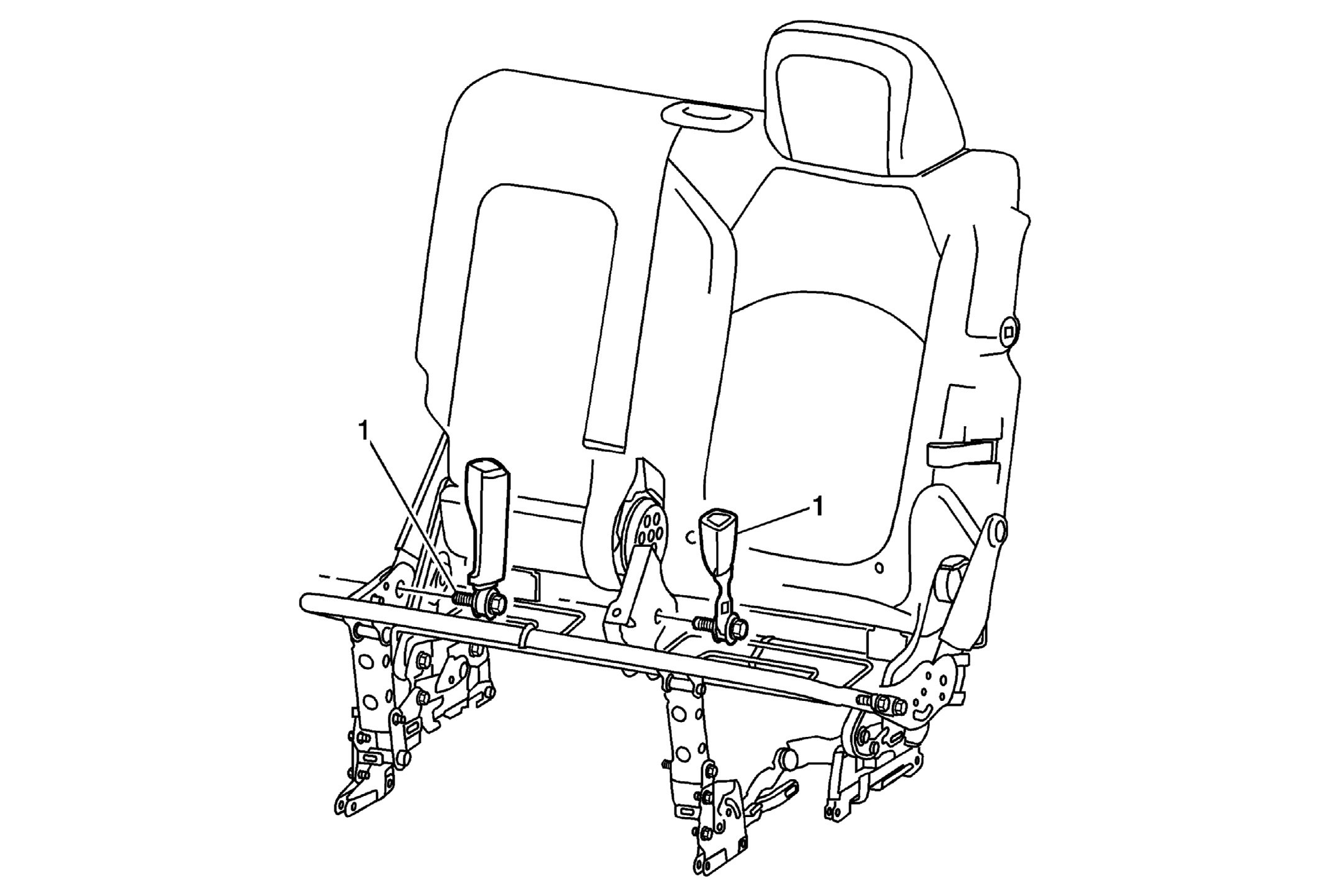

Fig 1: Rear Seat Belt Buckle (With 60 Percent)
GM1858613Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Belt Buckle
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Position the rear row seat to the easy entry position.
  2. Seat belt buckle and bolt are serviced as an assembly.

Tighten
53 N.m (39 lb ft)
