Front Seat Belt Buckle Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

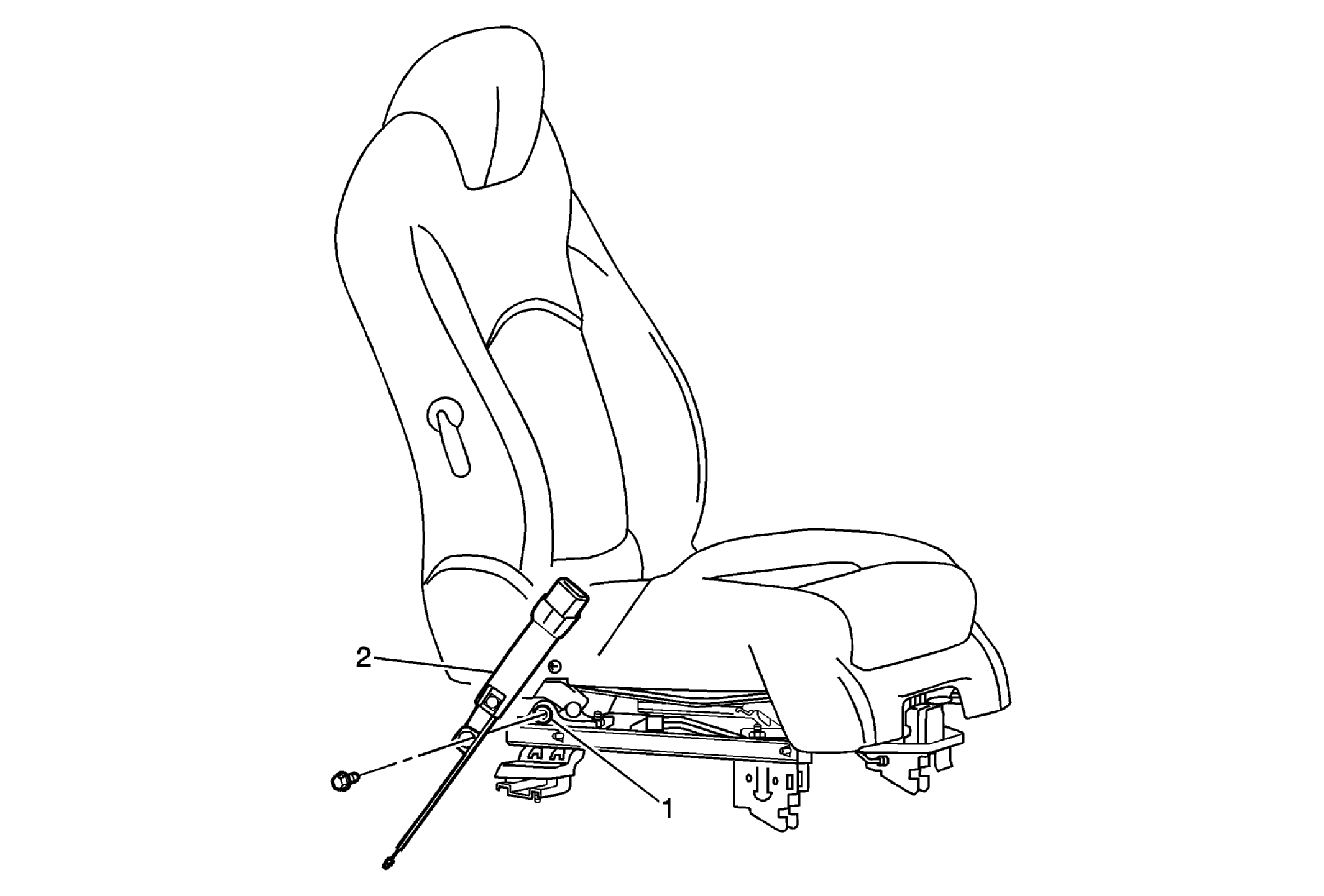

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front seat. Refer to Bucket Seat Removal and Installation . |
|
| 1 | Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 52 N.m (38 lb ft) |
| 2 | Seat (Buckle Side) Belt Assembly Procedure Disconnect the electrical connector. |
