3rd Row Center Seat Belt Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

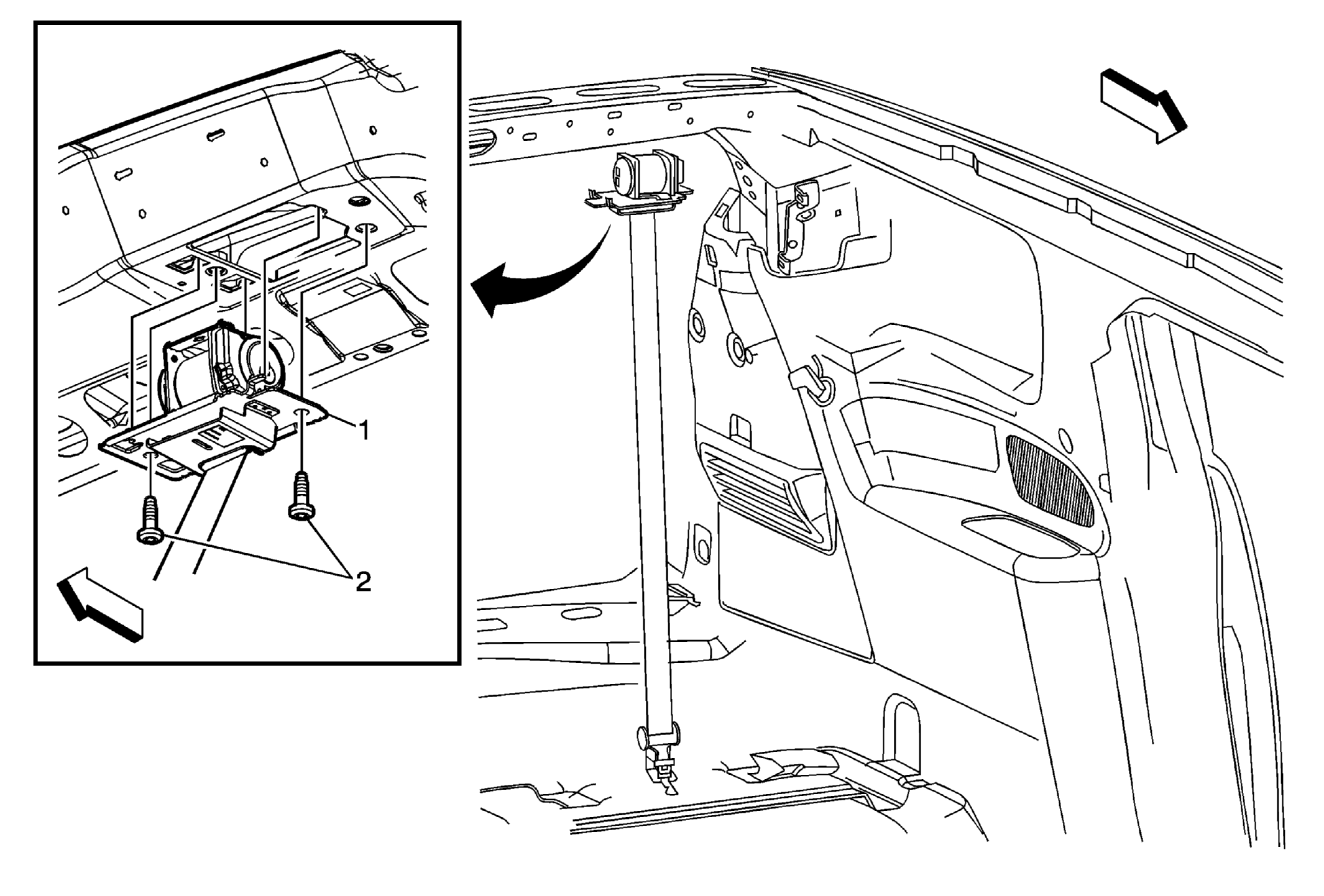

Fig 1: 3rd Row Center Seat Belt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the headliner assembly. Refer to Headlining Trim Panel Replacement .
1	Rear Seat Number 2 Center Seat Belt Retractor Assembly
2	Rear Seat Number 2 Center Seat Belt Retractor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)

Callout

Component Name

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the headliner assembly. Refer to Headlining Trim Panel Replacement .

Rear Seat Number 2 Center Seat Belt Retractor Assembly

Rear Seat Number 2 Center Seat Belt Retractor Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)
