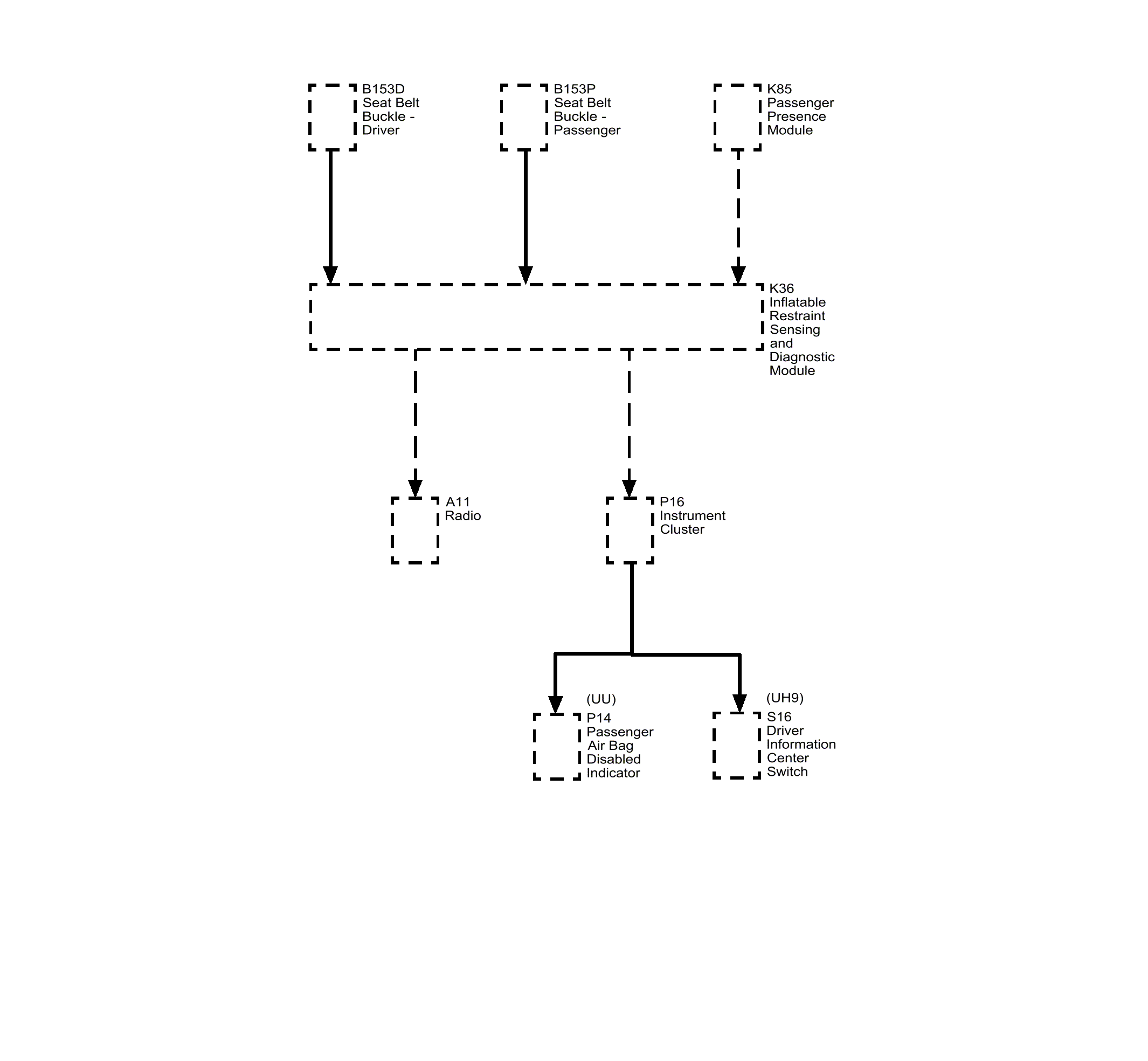

Seat Belt Block Diagram
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| UH9 | CLUSTER: INST, COOL TEMP, TRIP ODOM, TACH, DR INFO CTR (DO NOT USE AFTER MY 2009 ON NEW/MAJOR PRGMS) |
| B153D | B153D Seat Belt Buckle - Driver |
| B153P | B153P Seat Belt Buckle - Passenger |
| K85 | Passenger Presence Module |
| K36 | K36 Inflatable Restraint Sensing and Diagnostic Module |
| A11 | A11 Radio |
| P16 | P16 Instrument Cluster |
| P14 | P14 Passenger Air Bag Disabled Indicator |
| S16 | S16 Driver Information Center Switch |
