Roof Side Rail Airbag Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

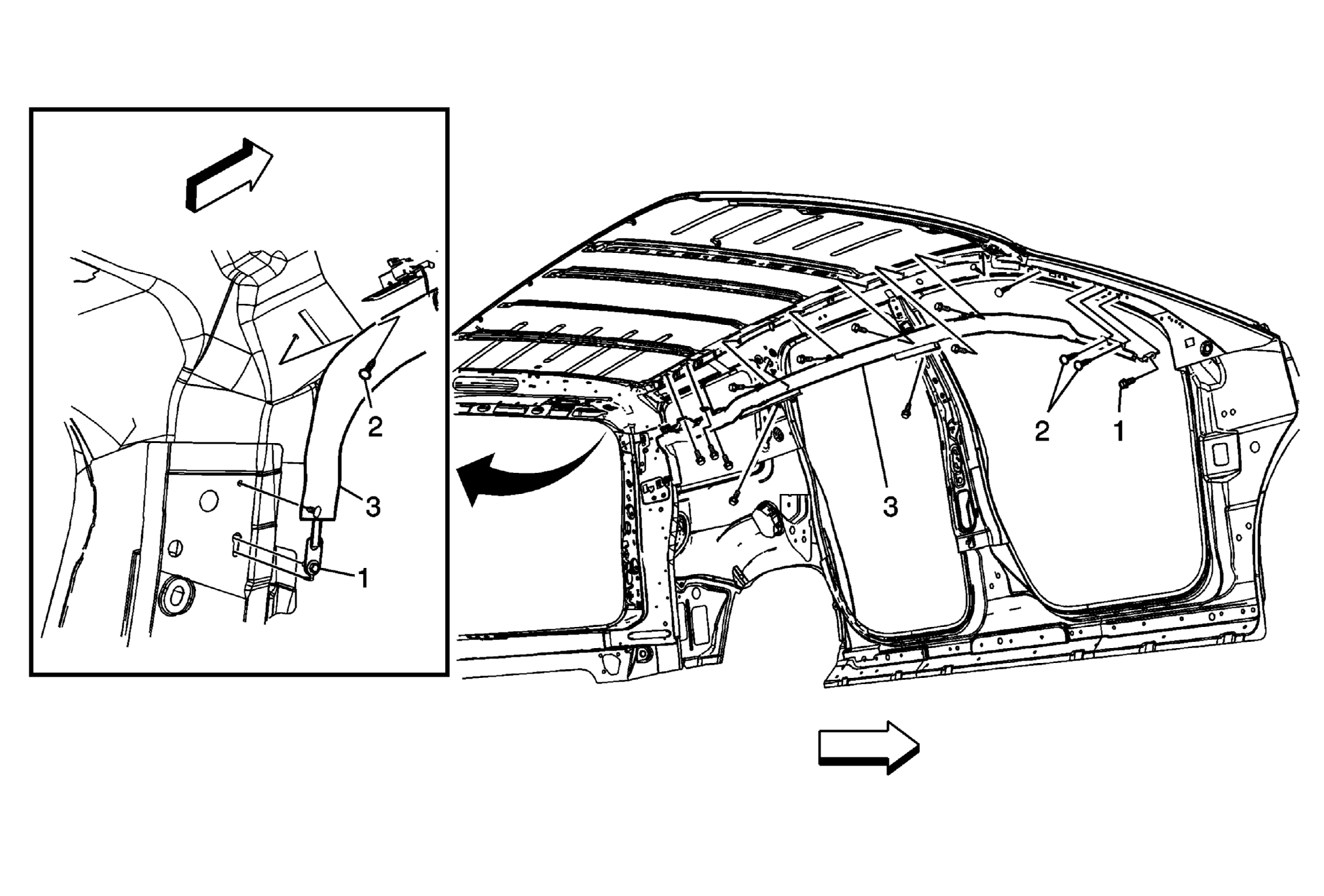

Fig 1: Roof Side Rail Inflatable Restraint Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the headliner assembly. Refer to Headlining Trim Panel Replacement .
1	Inflatable Restraint Roof Side Rail Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Inflatable Restraint Roof Side Rail Retainer (Qty: 6)
3	Inflatable Restraint Roof Side Rail Module Assembly WARNING: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS. WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Procedure Disconnect the electrical connector.
