Passenger Door Harness Routing

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

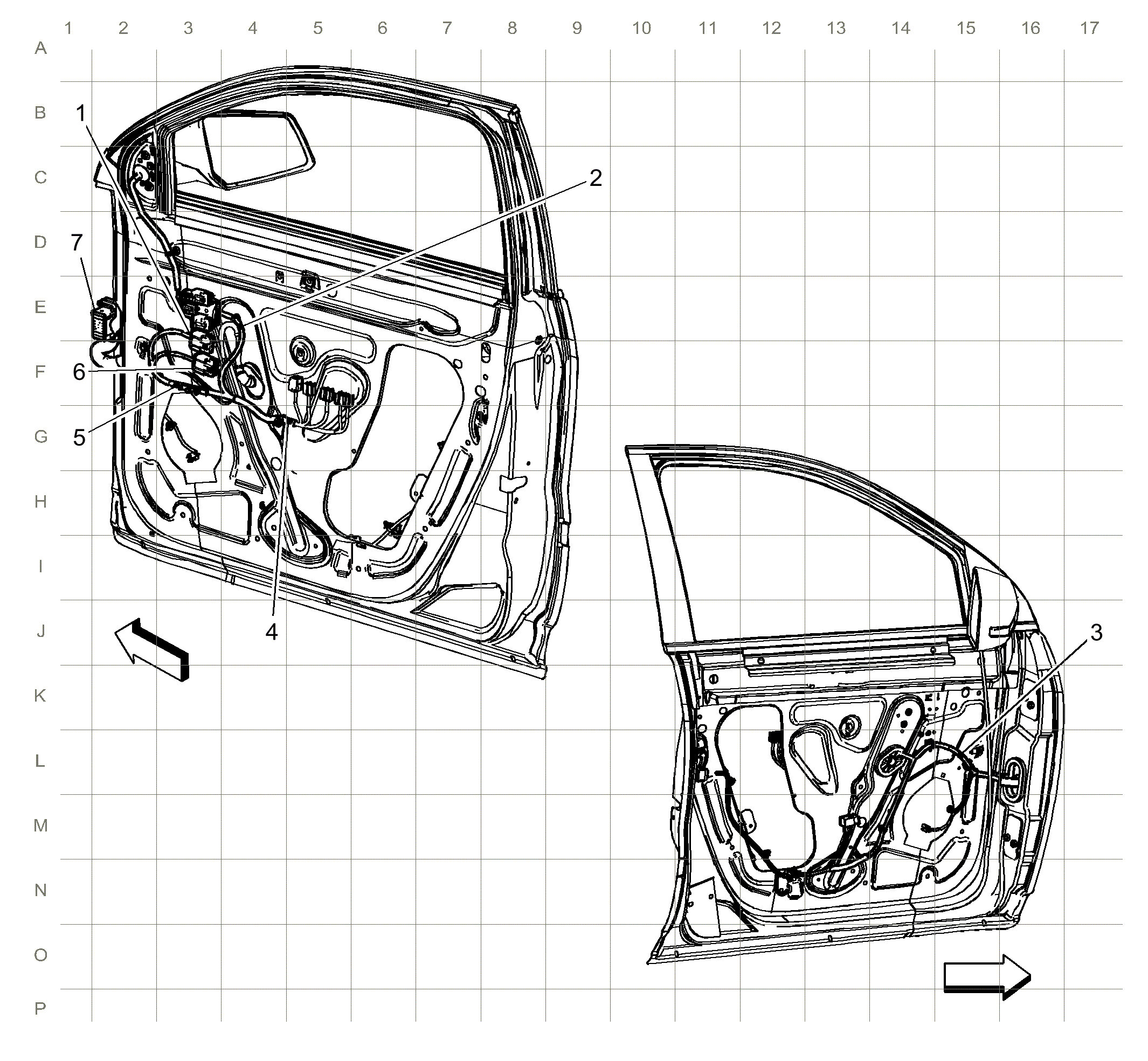

Fig 1: Passenger Door Harness Routing
GM2867699Courtesy of GENERAL MOTORS COMPANY
Items
1. X666
2. J602
3. J600
4. J666
5. J602
6. X664
7. X600
