Section 451 (Component Locations, Wiring Harness Routing And Connector End Views - Miscellaneous)
>>
Component Locator, Wiring Harness Routing And Connector End Views - Miscellaneous
>>
Wiring Harness Routing
>>
Left Rear Door Harness Routing
Left Rear Door Harness Routing
WARNING:
This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

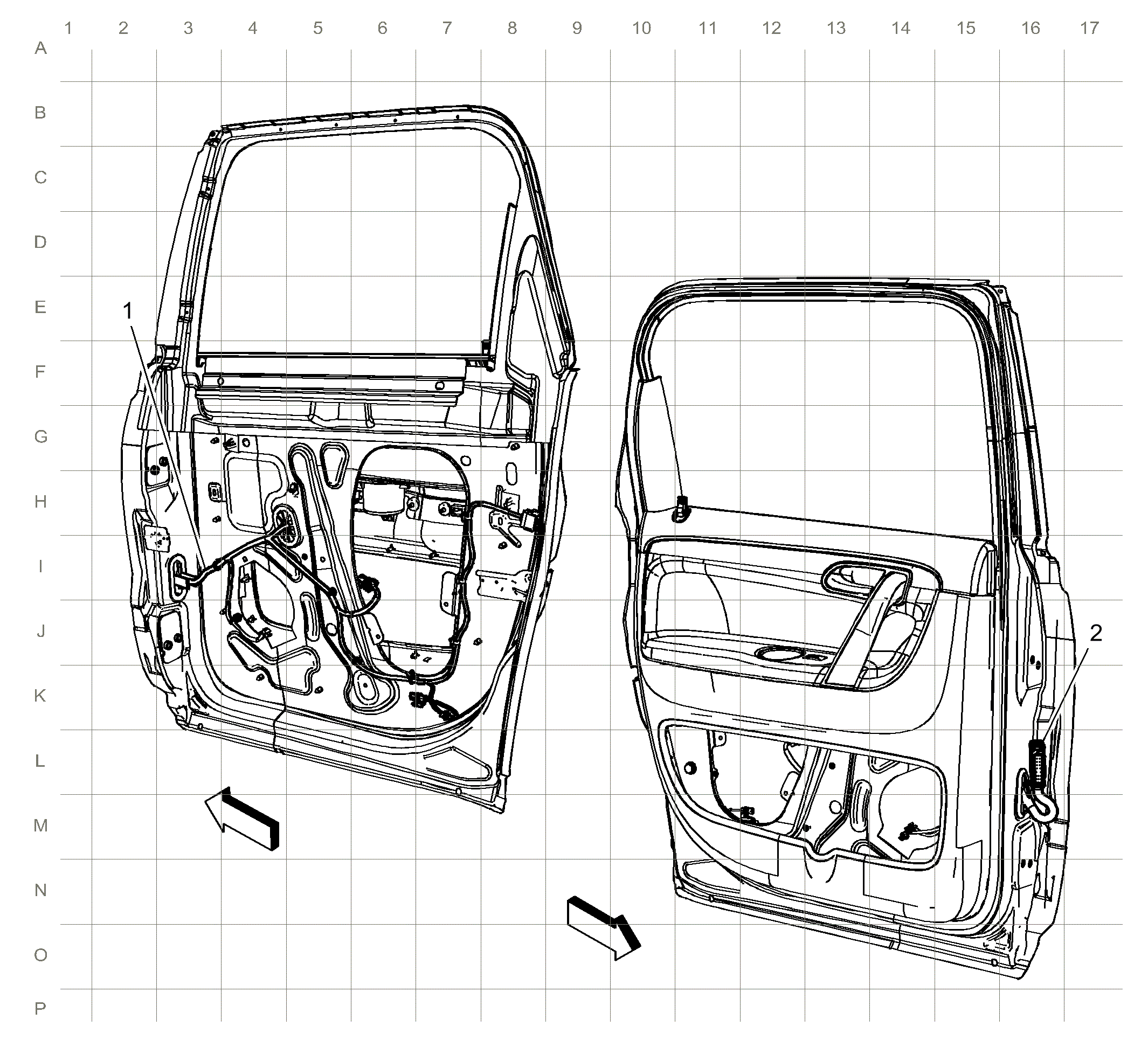

Fig 1: Left Rear Door Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1. J711
2. X700
