Driver Door Harness Routing

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

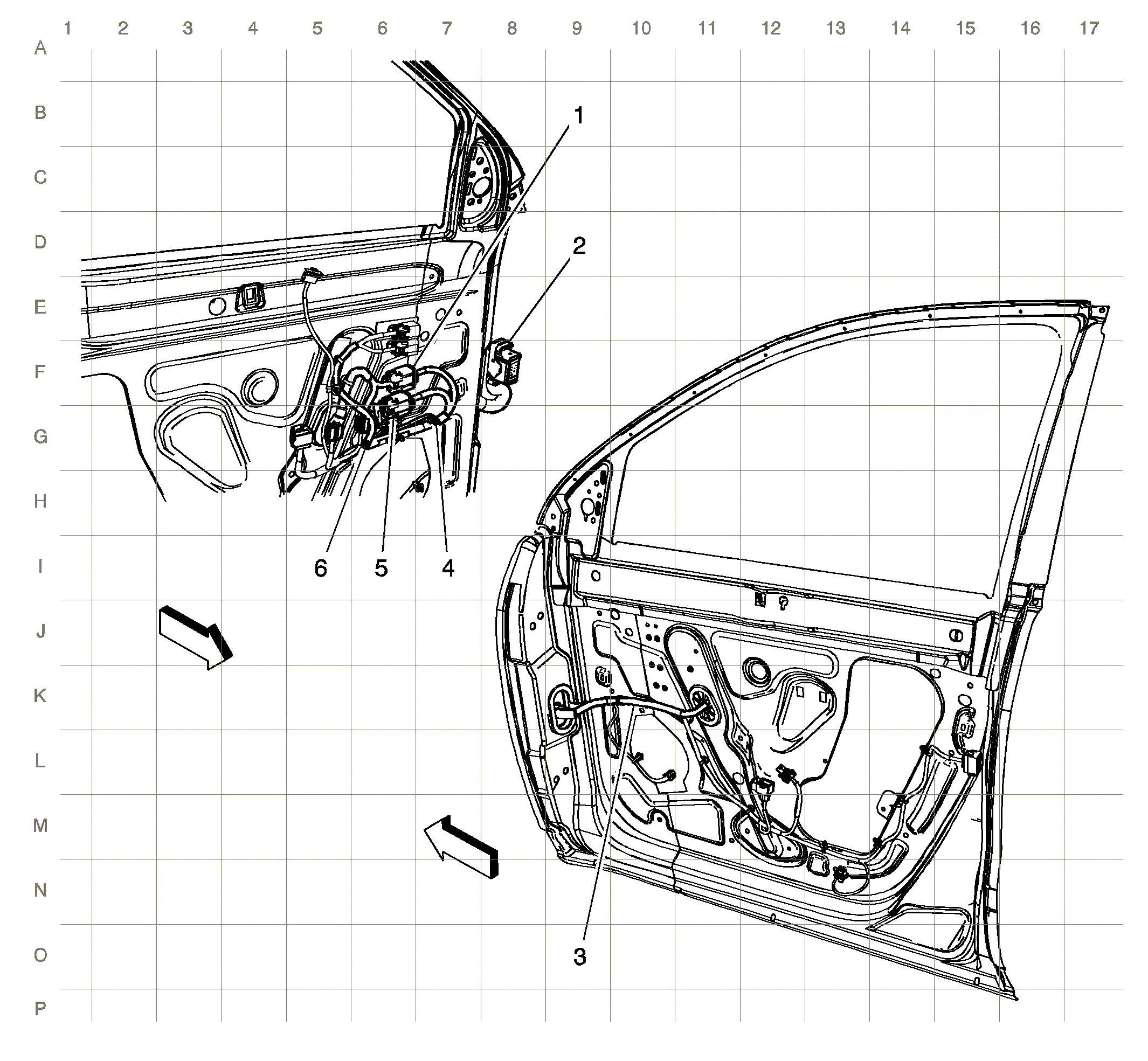

Fig 1: Driver Door Harness Routing
GM2867690Courtesy of GENERAL MOTORS COMPANY
Items
1. J577
2. X553
3. X500
4. J555
5. J575
6. X555
