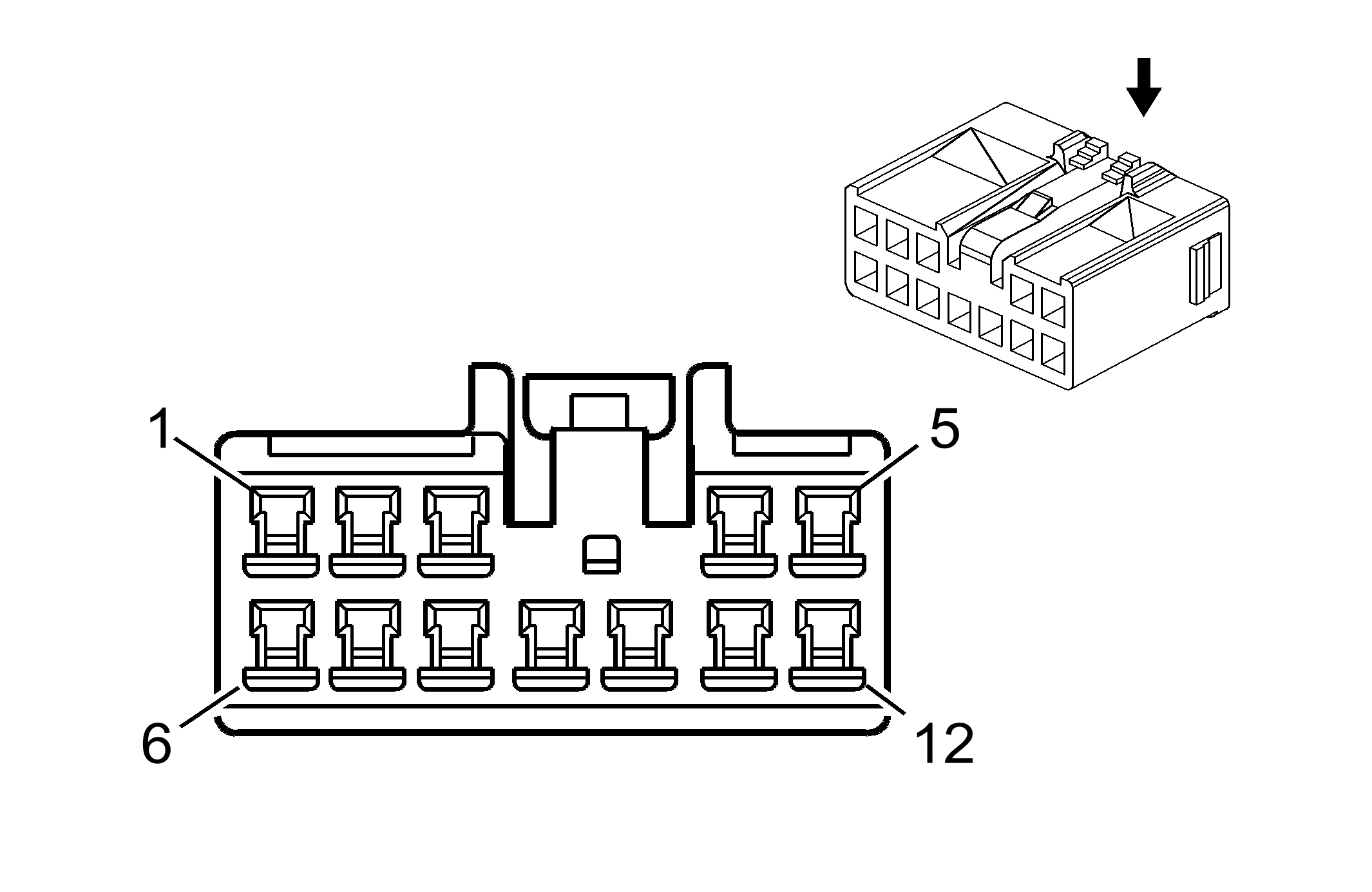

JX205 Splice Pack
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575272 | J-35616-18 (BK) | J-38125-553 | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 2 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 3 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | A45 or AXE |
| 4 | - | - | - | Not Occupied | - | - |
| 5 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | A45 or AXE |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 8 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 9 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | UV6 |
| 10 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 11 | 0.35 0.35 |
D-GN D-GN |
5060 5060 |
Low Speed GMLAN Serial Data Low Speed GMLAN Serial Data |
I | CJ2 C67 |
| 12 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | ULD with UQA or UQS |
