Second Row Seat Area Floor

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Second Row Seat Area Floor

Items
1. B18 Battery Current Sensor B18 Battery Current Sensor
2. X55B Fuse Holder - Telematics (UE1) X55B Fuse Holder - Telematics (UE1)
3. X55AF Fuse Holder - Engine Control Module X55AF Fuse Holder - Engine Control Module

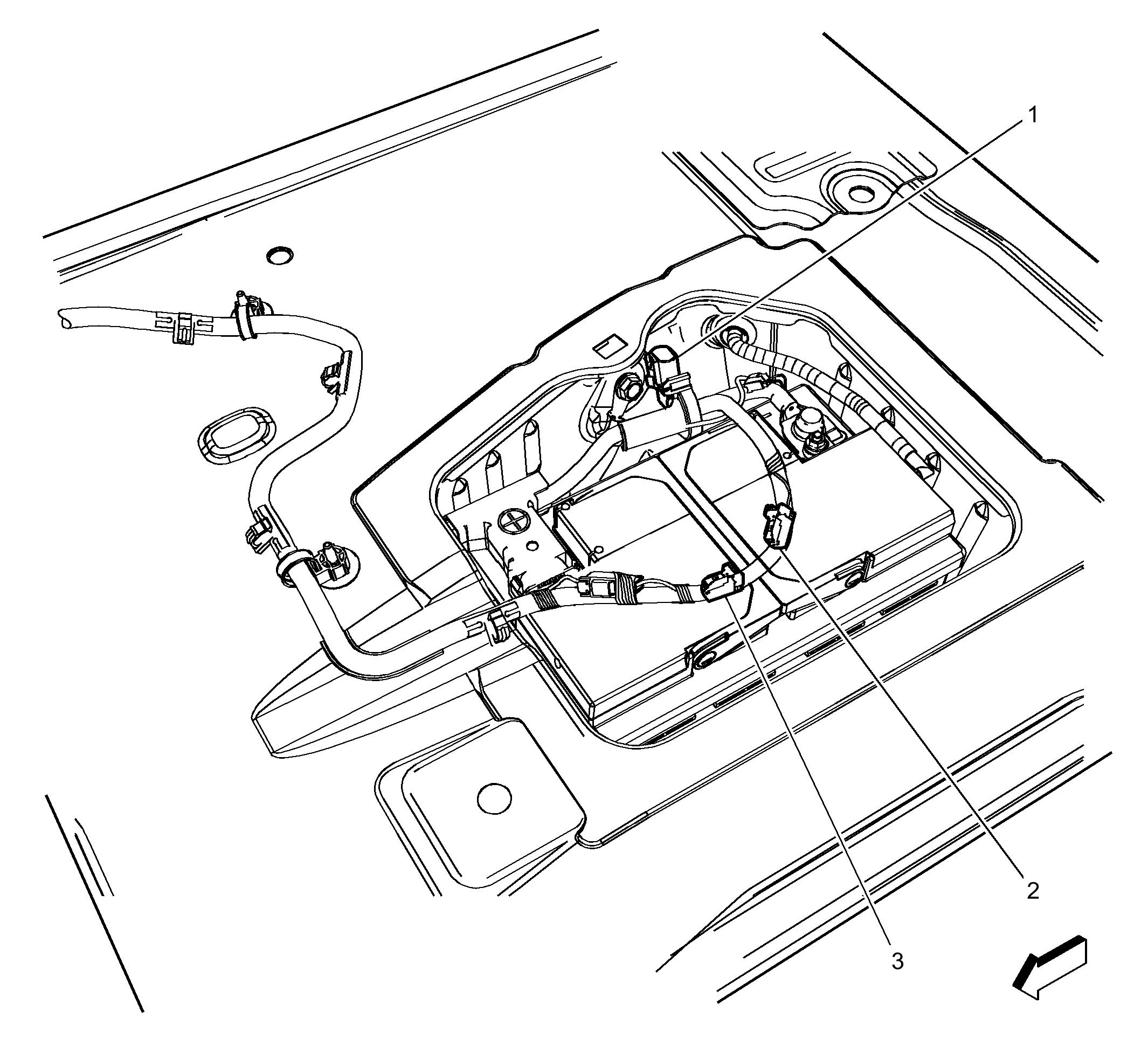

Fig 1: Second Row Seat Area Floor
GM3220726Courtesy of GENERAL MOTORS COMPANY
