Roof Panel

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Roof Panel

Items
1. K61 Sunroof Control Module (C3U) K61 Sunroof Control Module (C3U)

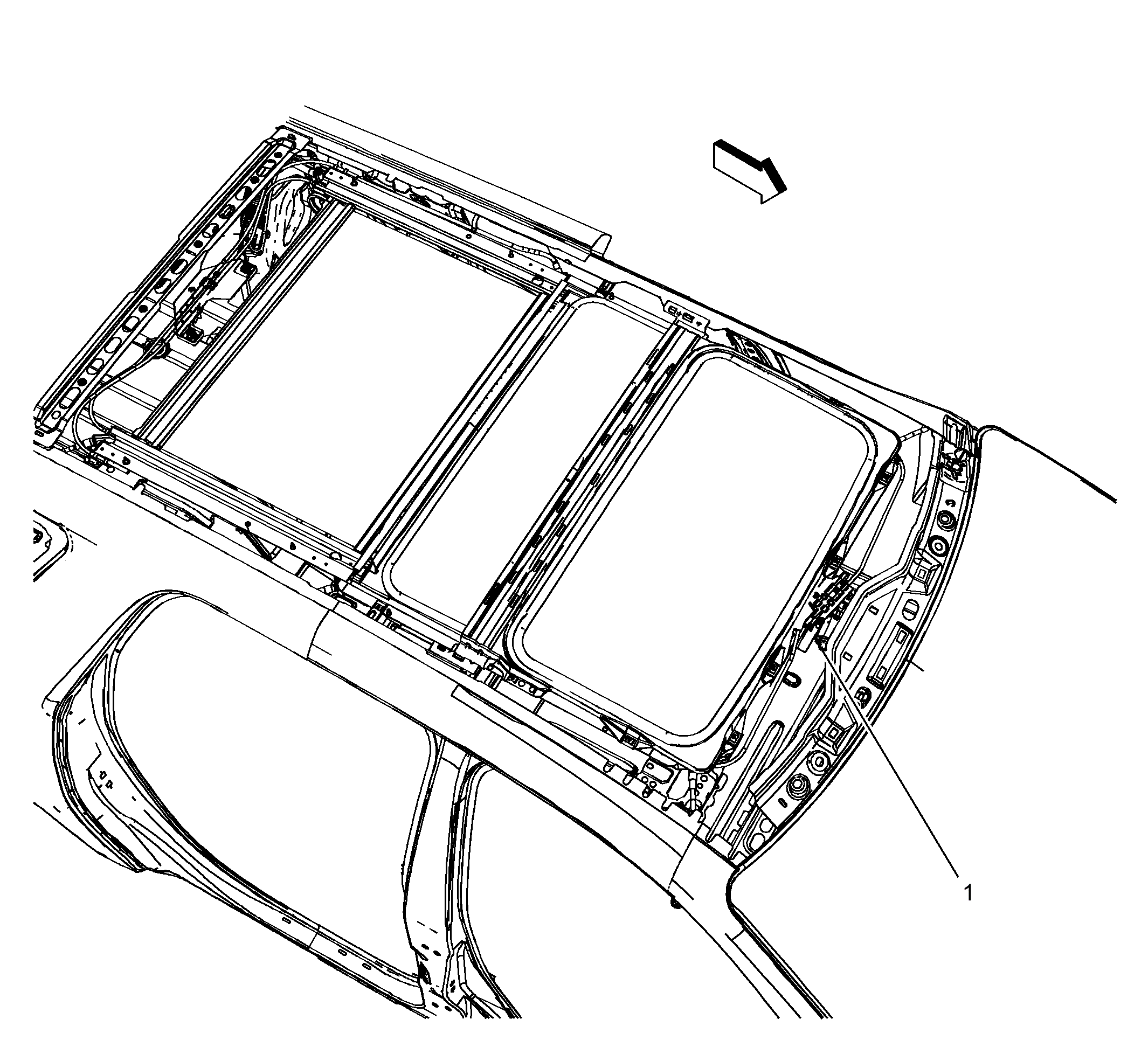

Fig 1: Roof Panel
GM3220674Courtesy of GENERAL MOTORS COMPANY
