Passenger Side Footwell and Door Sill (B8K)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Passenger Side Footwell and Door Sill (B8K)

Items
1. E8B Door Sill Plate Lamp - Passenger (B8K) E8B Door Sill Plate Lamp - Passenger
2. E8K Instrument Panel Courtesy Lamp - Right (B8K) E8K Instrument Panel Courtesy Lamp - Right

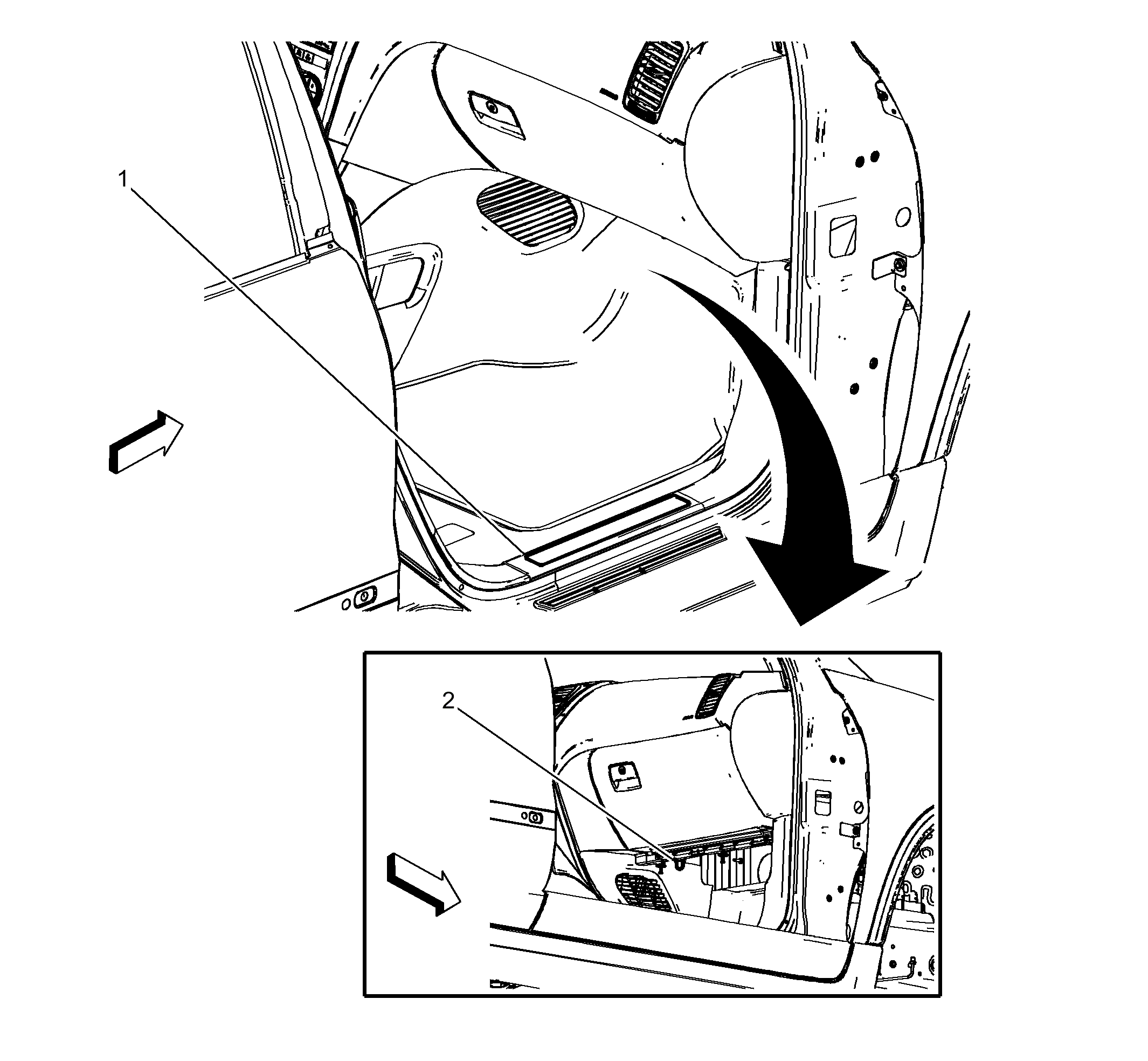

Fig 1: Passenger Side Footwell and Door Sill (B8K)
GM2475628Courtesy of GENERAL MOTORS COMPANY
