Passenger Seat Components

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Items
1. B153P Seat Belt Buckle - Passenger B153P Seat Belt Buckle - Passenger
2. E14D Seat Heating Element - Passenger Cushion (KA1 or KB6 or SPO Accessory) E14D Seat Heating Element - Passenger Cushion (KA1)E14D Seat Heating Element - Passenger Cushion (KB6)
3. F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver (AYQ)
4. K85 Passenger Presence Module K85 Passenger Presence Module
5. M56P Seat Recline Motor - Passenger (AH8) M56P Seat Recline Motor - Passenger
6. M52P Seat Lumbar Support Horizontal Motor - Passenger (AAQ) M52P Seat Lumbar Support Horizontal Motor - Passenger
7. K53P Seat Blower Assembly - Passenger Back (KB6) K53P Seat Blower Assembly - Passenger Back
8. M51P Seat Horizontal Motor - Passenger (AAQ or AG2) M51P Seat Horizontal Motor - Passenger
9. K55P Seat Blower Assembly - Passenger Cushion (KB6) K55P Seat Blower Assembly - Passenger Cushion
10. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger
11. S65P Seat Lumbar Support Switch - Passenger (AH8) S65P Seat Lumbar Support Switch - Passenger
12. E14C Seat Heating Element - Passenger Back (KA1 or KB6 or SPO Accessory) E14C Seat Heating Element - Passenger Back (KA1)E14C Seat Heating Element - Passenger Back (KB6)E14C Seat Heating Element - Passenger Back (SPO Accessory)
13. S64P Seat Adjuster Switch - Passenger (AH8 or AG2) S64P Seat Adjuster Switch - Passenger (AG2)S64P Seat Adjuster Switch - Passenger (AH8)

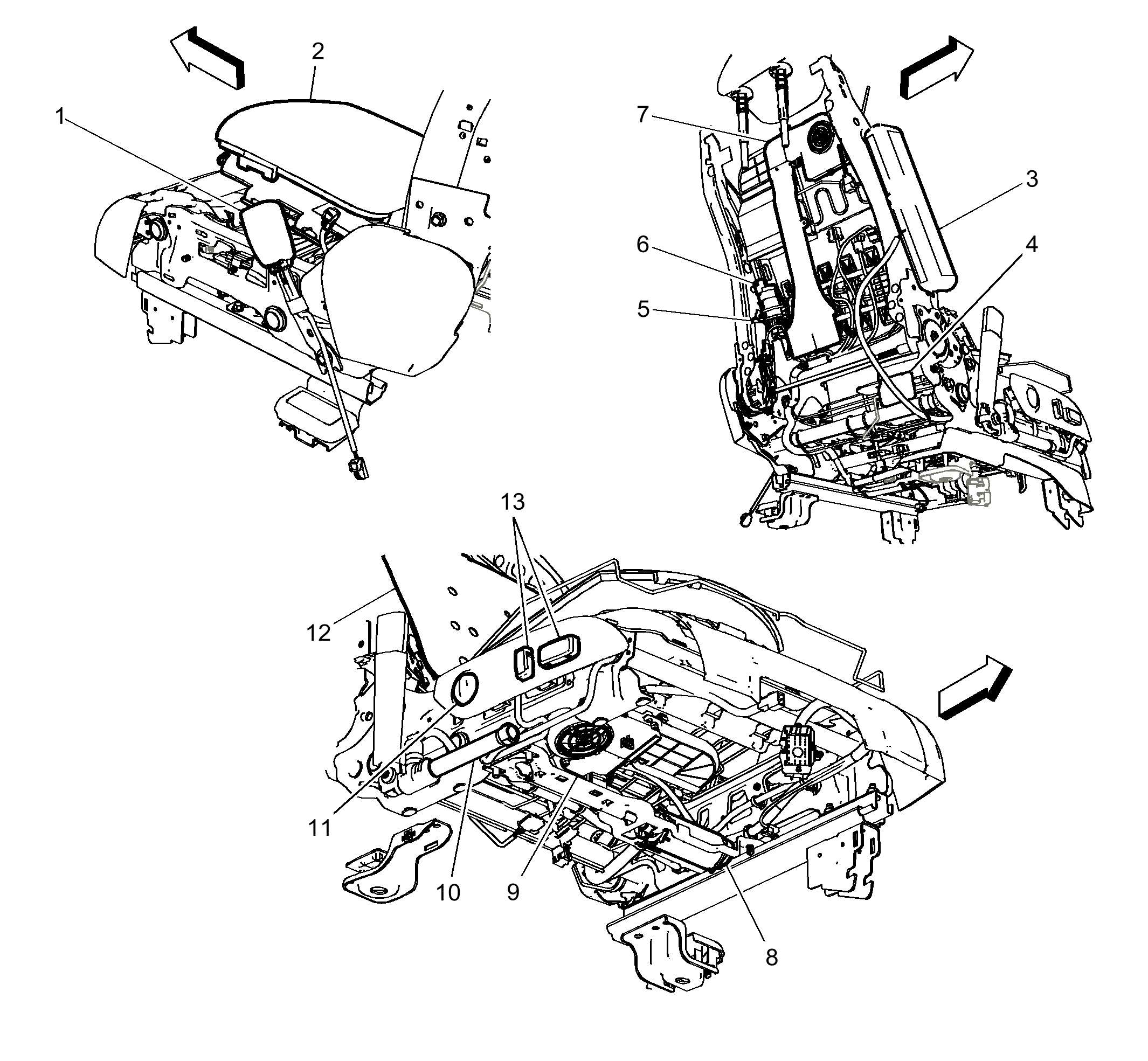

Fig 1: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS COMPANY
