Near the Passenger Seat

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Near the Passenger Seat

Items
1. B18 Battery Current Sensor B18 Battery Current Sensor
2. C1 Battery
3. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0)
4. B119 Multi-axis Acceleration Sensor B119 Multi-axis Acceleration Sensor

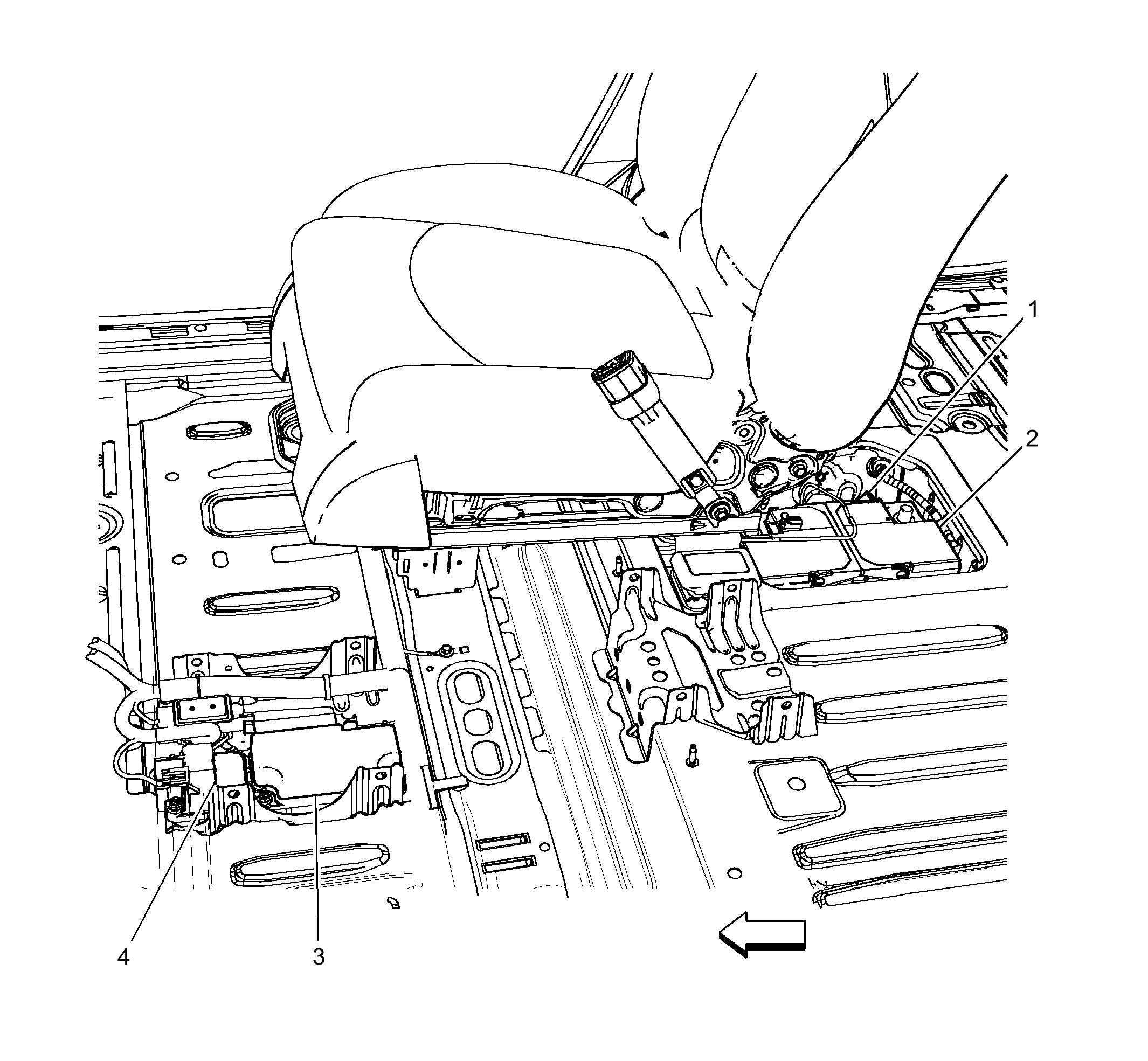

Fig 1: Near Passenger Seat
GM2522612Courtesy of GENERAL MOTORS COMPANY
