Driver Side Footwell and Door Sill (B8K)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Driver Side Footwell and Door Sill (B8K)

Items
1. E8A Door Sill Plate Lamp - Driver (B8K) E8A Door Sill Plate Lamp - Driver
2. E8J Instrument Panel Courtesy Lamp - Left (B8K) E8J Instrument Panel Courtesy Lamp - Left

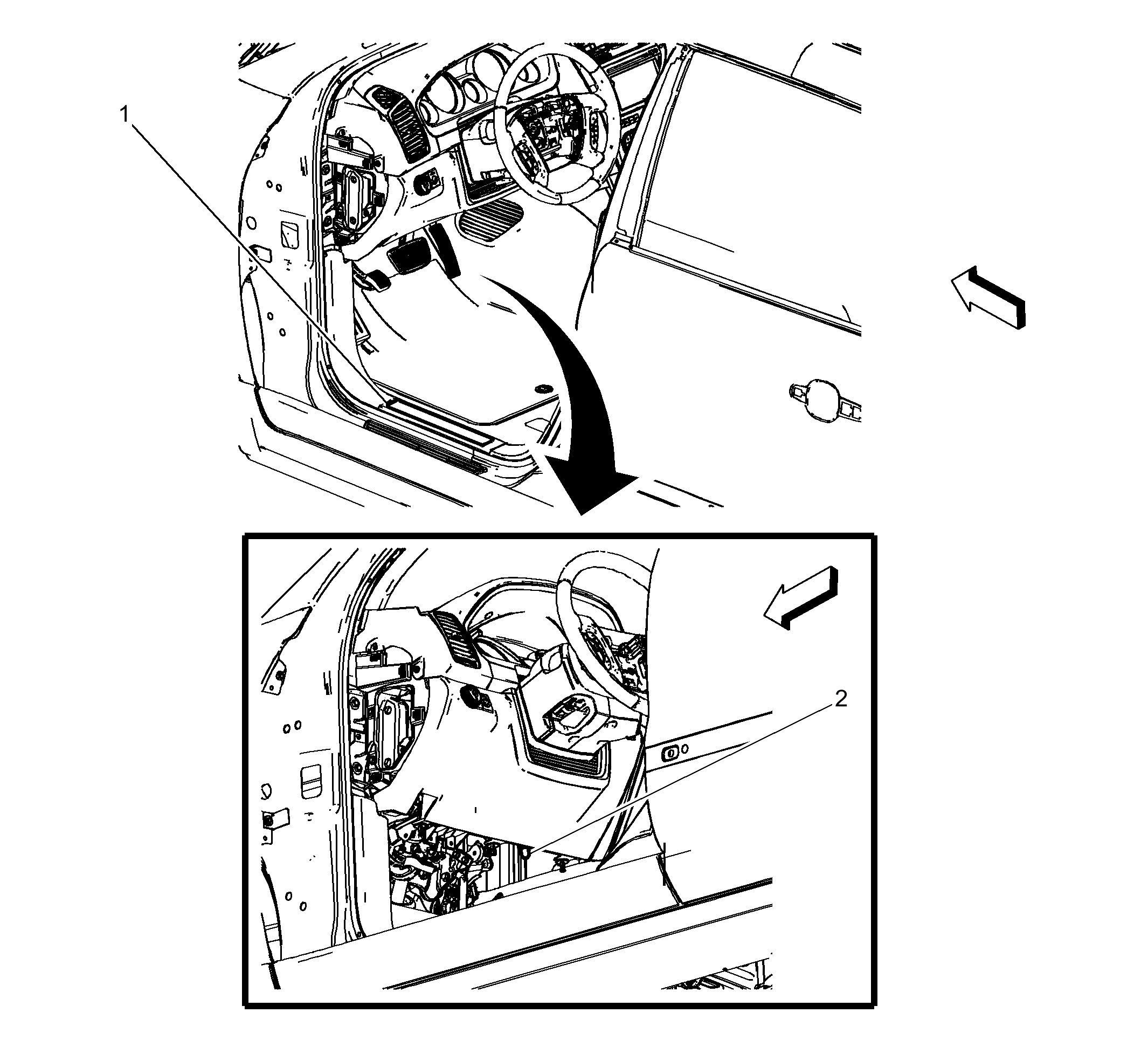

Fig 1: Driver Side Footwell and Door Sill (B8K)
GM2475624Courtesy of GENERAL MOTORS COMPANY
