Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

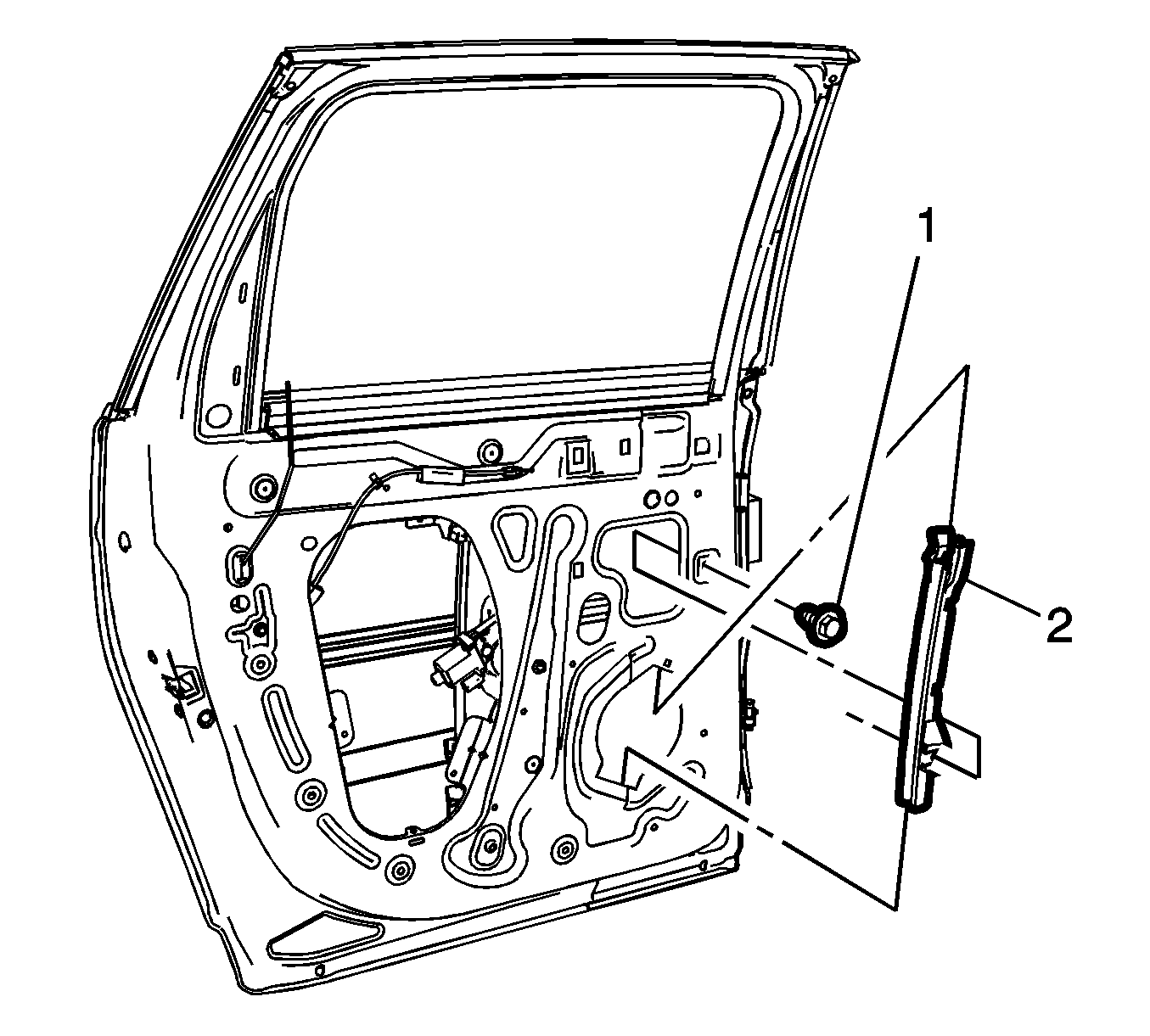

    Fig 1: Rear Side Door Window Front Channel (Acadia/Traverse)
    GM2874442Courtesy of GENERAL MOTORS COMPANY
  1. Place the door window in the full up position.
  2. Remove the bolt (1) from the rear side door window front channel.
  3. Pull the weatherstrip out of the lower section of the rear side door window front channel (2).
  4. Remove the rear side door window front channel from the door.
