Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

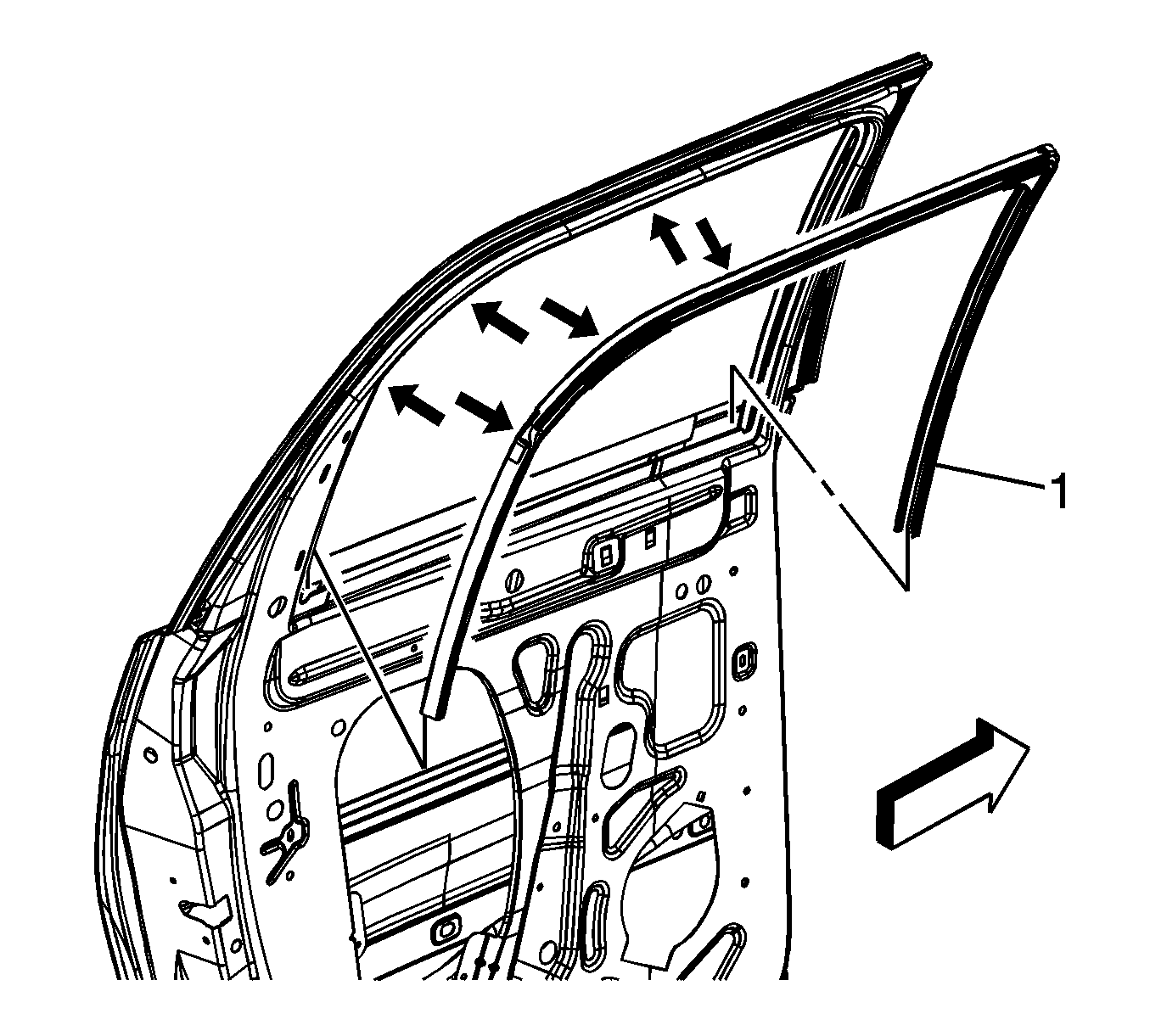

    Fig 1: Rear Side Door Window Inner Weatherstrip
    GM1840775Courtesy of GENERAL MOTORS COMPANY
    IMPORTANT:

    Install the weatherstrip/run channel by fitting both corners to the upper door frame and then pushing inward on the sides.

  1. Install the weatherstrip/run channel (1) to the door.
  2. Press the weatherstrip/run channel (1) into the window frame opening.
  3. Install the rear side door window inner weatherstrip. Refer to Rear Side Door Window Inner Weatherstrip Replacement (Acadia/Traverse) .
