Front Side Door Window Upper Reveal Molding Replacement (Acadia/Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

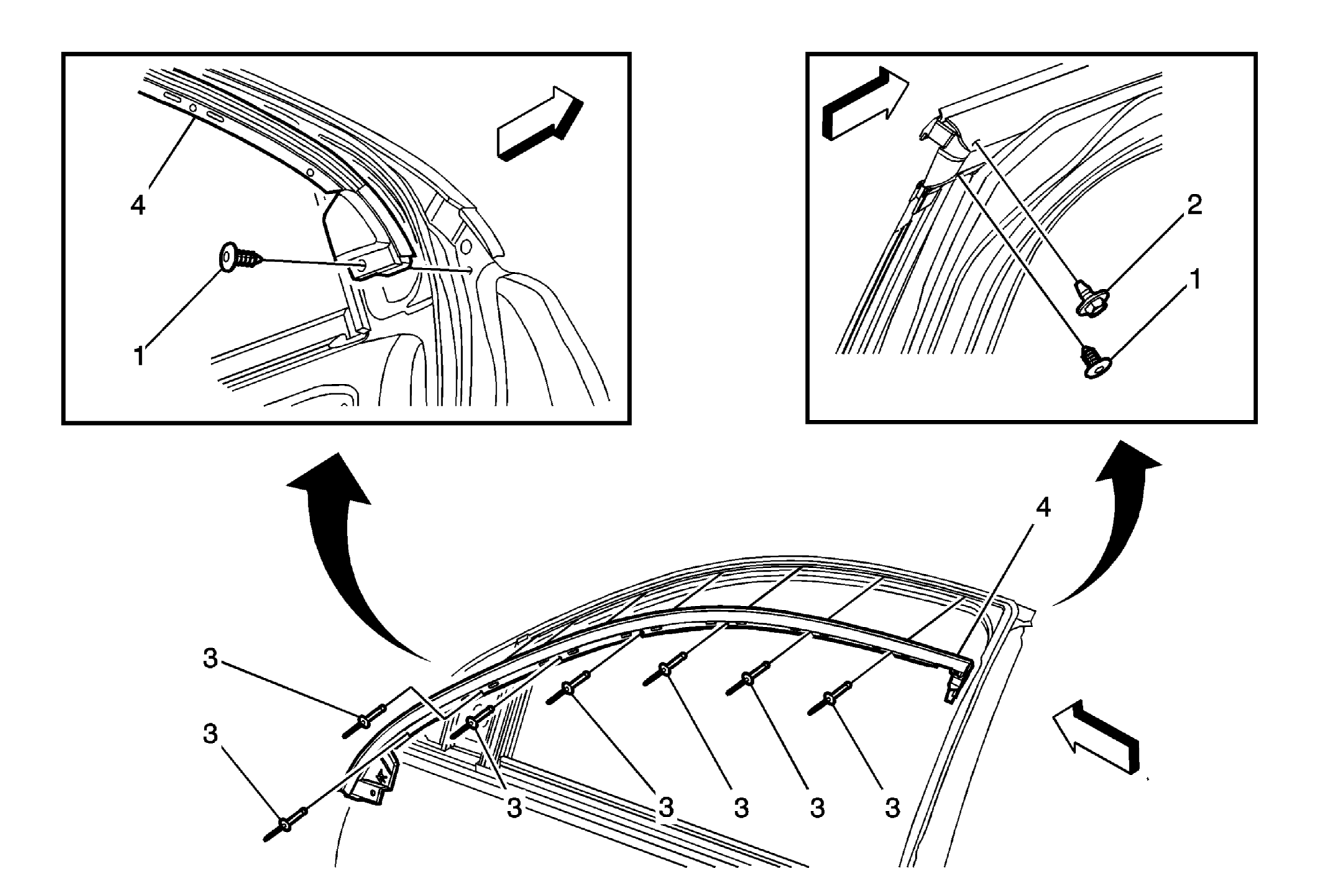

Fig 1: Front Side Door Window Upper Reveal Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the outside rearview mirror. Refer to Power Mirror Replacement . Remove the front side door window channel. Refer to Front Side Door Window Channel Replacement (Traverse) .
1	Front Side Door Window Lower Reveal Molding Screw CAUTION: Refer to Fastener Caution . Procedure The screw is located in the front lower door frame. Tighten 5 N.m (44 lb in)
2	Front Side Door Window Upper Reveal Molding Screw Procedure The screw is located in the upper rear corner of the door frame.
3	Front Side Door Window Upper Reveal Molding Rivets (Qty: 7) WARNING: Refer to Glass and Sheet Metal Handling Warning. Procedure Lower the window to the fully down position. When drilling cover/protect the interior trim and door from the metal shavings. The rivets are located in the inner upper door frame. Use a suitable tool, drill out the rivets from around the upper door frame.
4	Front Side Door Window Upper Reveal Molding Procedure Use a suitable tool, install the rivets in the upper door frame.
