Front Side Door Window Switch Replacement - Left Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

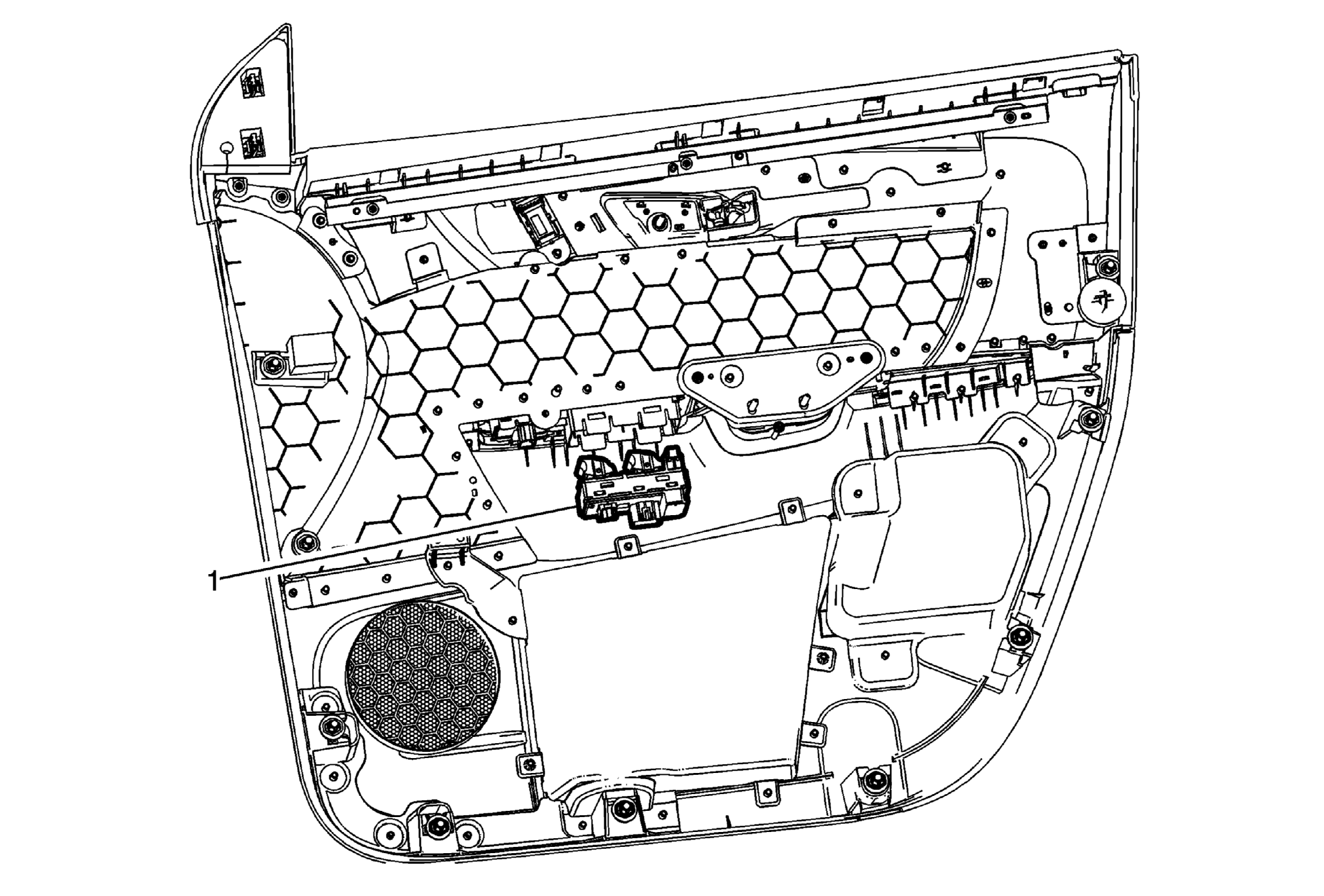

Fig 1: Front Side Door Window Switch - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver side door trim panel and place on a flat surface. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse)Front Side Door Trim Panel Replacement - Left Side (Enclave) .
1	Front Side Door Window Switch - Left Side Assembly Procedure Disconnect the electrical connectors from the switch assembly. Release the switch from the underside of the door trim panel by depressing the tabs along each side of the switch. Refer to Control Module References for programming and set-up procedures, if required.

Callout

Component Name

Preliminary Procedure
Remove the driver side door trim panel and place on a flat surface. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse)Front Side Door Trim Panel Replacement - Left Side (Enclave) .

Front Side Door Window Switch - Left Side Assembly

Procedure

Disconnect the electrical connectors from the switch assembly.
Release the switch from the underside of the door trim panel by depressing the tabs along each side of the switch.
Refer to Control Module References for programming and set-up procedures, if required.
