Front Side Door Window Inner Weatherstrip Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

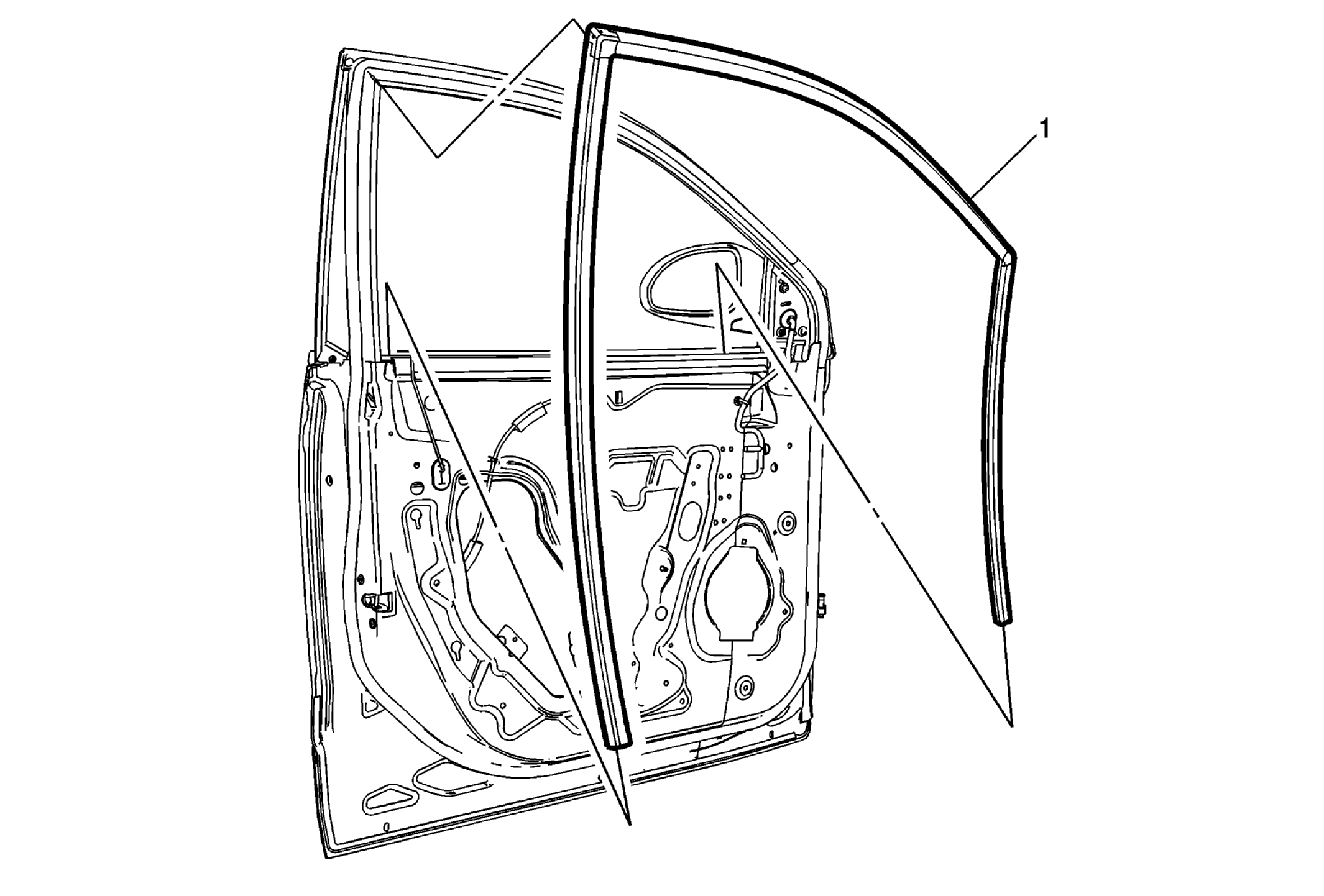

Fig 1: Front Side Door Window Inner Weatherstrip (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door window. Refer to Front Side Door Window Replacement .
1	Front Side Door Window Inner Weatherstrip Procedures Pull the front side door window inner weatherstrip out of the both lower window guides. Start in the center of the door frame, pulling downward releasing the weatherstrip from the door frame. When installing, start in the left up corner of the door frame. Work the weatherstrip around the door frame and down both lower window guides until fully seated. Inspect the door window for proper operation.

Callout

Component Name

Preliminary Procedure
Remove the front side door window. Refer to Front Side Door Window Replacement .

Front Side Door Window Inner Weatherstrip

Procedures

Pull the front side door window inner weatherstrip out of the both lower window guides.
Start in the center of the door frame, pulling downward releasing the weatherstrip from the door frame.
When installing, start in the left up corner of the door frame.
Work the weatherstrip around the door frame and down both lower window guides until fully seated.
Inspect the door window for proper operation.
