Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

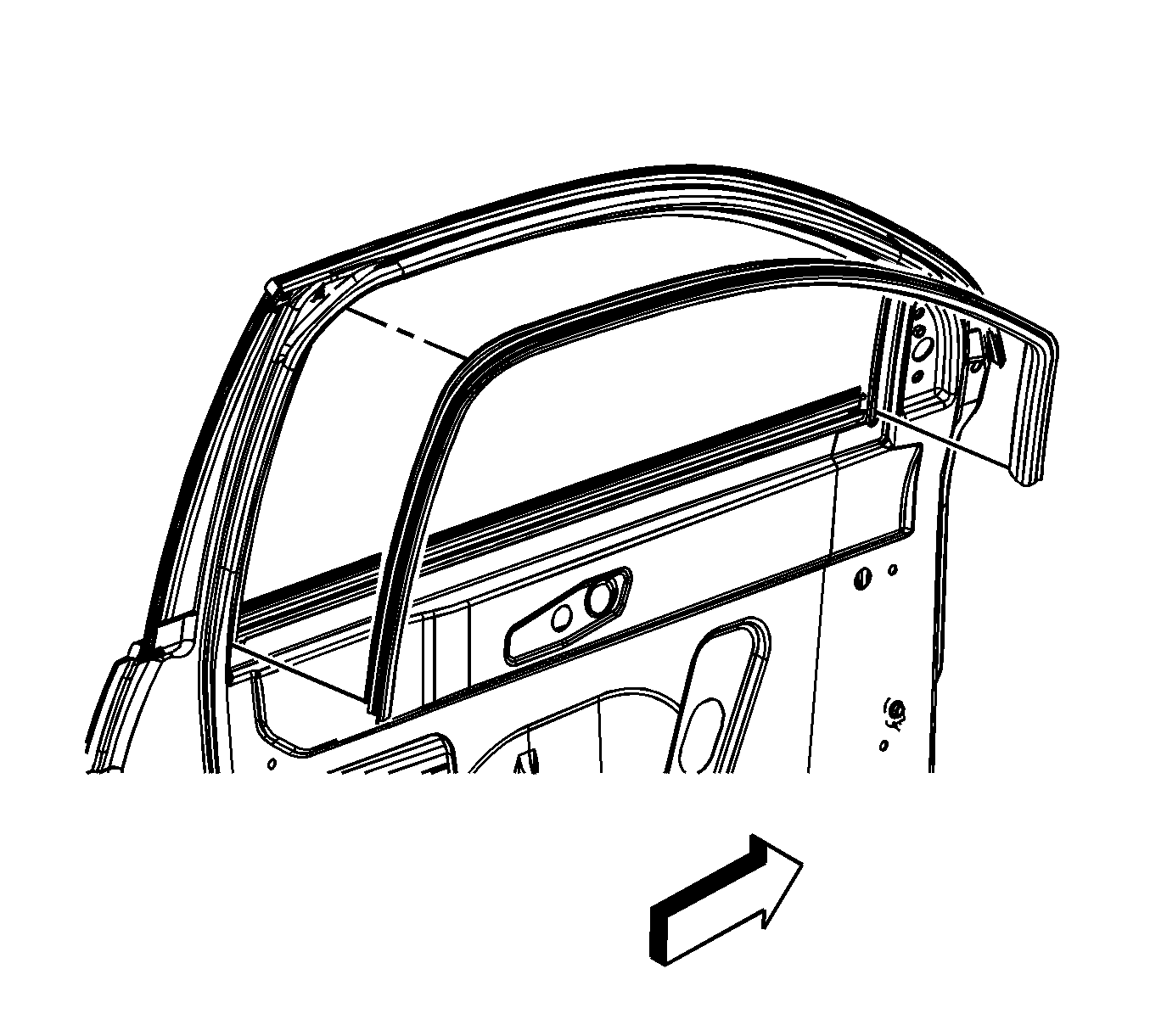

    Fig 1: Front Side Door Window Inner Weatherstrip
    GM1847490Courtesy of GENERAL MOTORS COMPANY
    IMPORTANT:

    It is Not necessary to remove the inner door trim panel.

    IMPORTANT:

    Install the weatherstrip/run channel by fitting both corners to the upper door frame and then pushing inward on the sides.

  1. Open the door.
  2. Lower the window to the full down position.
  3. Grasp the window weatherstrip in the center.

    Pull downward until the window weatherstrip fully releases from the door frame.

  4. Remove the window weatherstrip from the front door.
