Rear Compartment Floor Panel Carpet Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

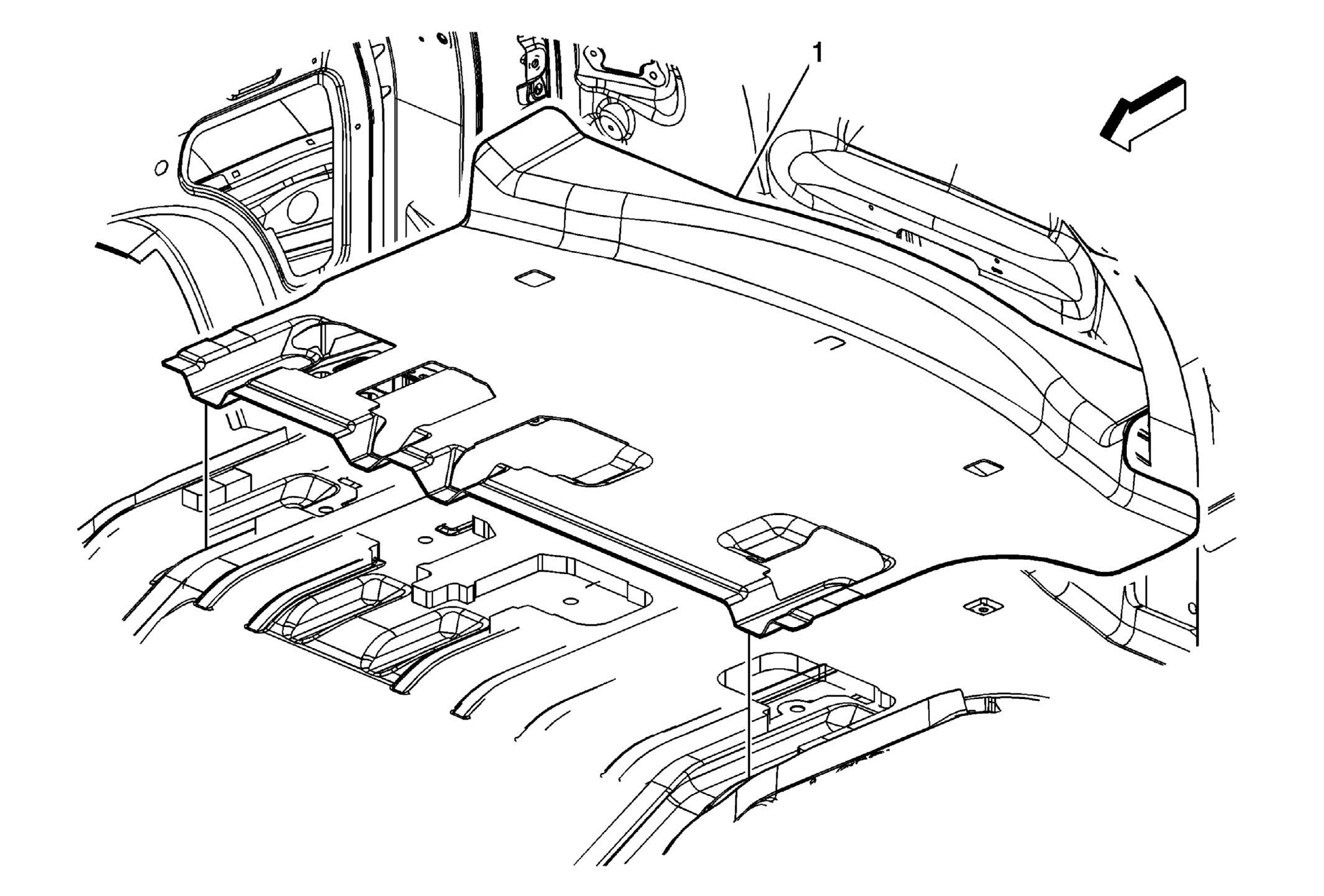

Fig 1: Rear Compartment Floor Panel Carpet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear number 2 seats. Refer to 3rd Row Seat Removal and Installation . Remove the rear quarter lower trim. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) . Remove the liftgate sill plate. Refer to Liftgate Door Sill Plate Replacement (Enclave)Liftgate Door Sill Plate Replacement (Traverse)Liftgate Door Sill Plate Replacement (Acadia) .
1	Rear Compartment Carpet Assembly

Callout

Component Name

Preliminary Procedures

Remove the rear number 2 seats. Refer to 3rd Row Seat Removal and Installation .
Remove the rear quarter lower trim. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .
Remove the liftgate sill plate. Refer to Liftgate Door Sill Plate Replacement (Enclave)Liftgate Door Sill Plate Replacement (Traverse)Liftgate Door Sill Plate Replacement (Acadia) .

Rear Compartment Carpet Assembly
