Driver Footrest Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

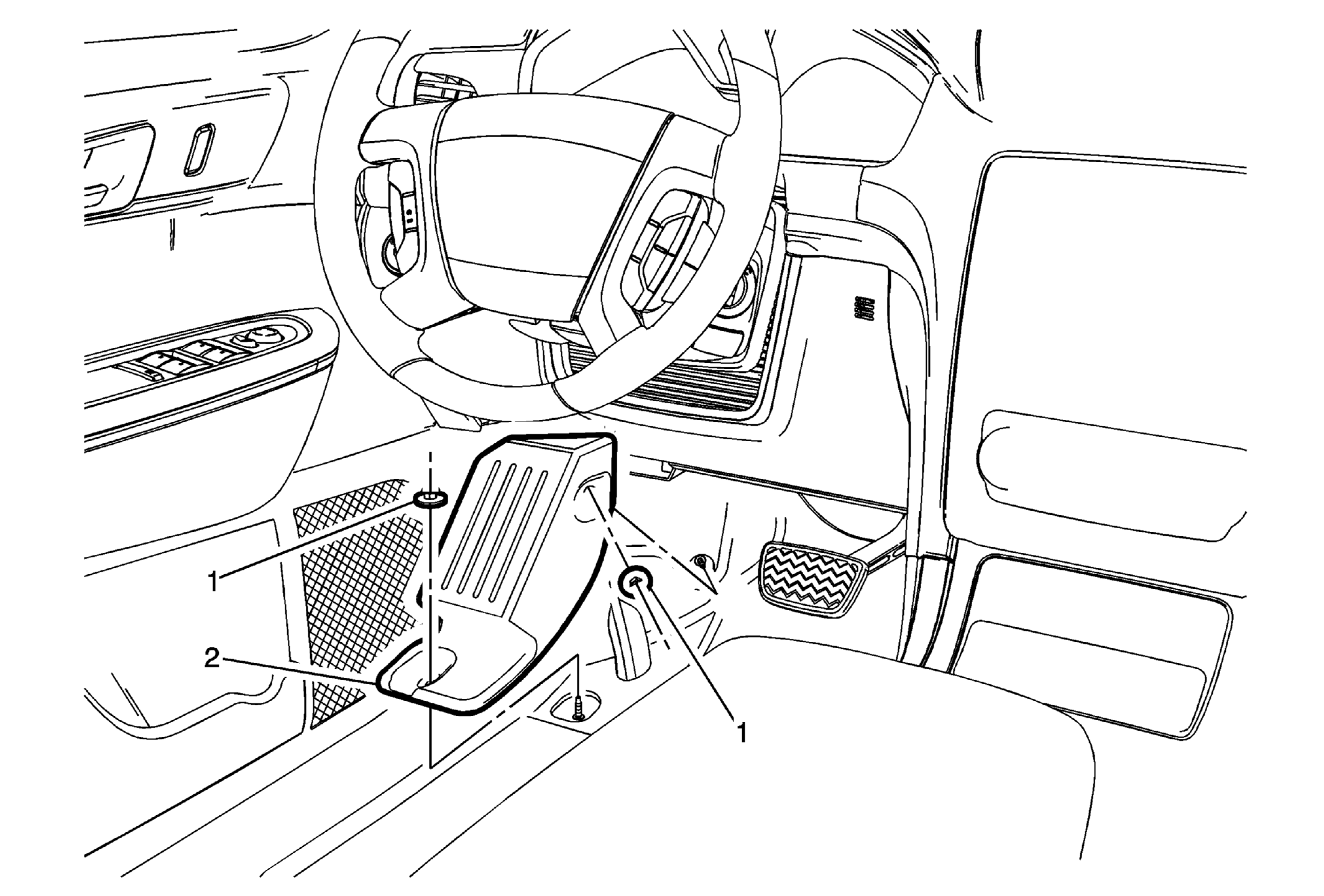

| Callout | Component Name |
|---|---|
| 1 | Driver Footrest Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Driver Footrest Procedure Use a flat-bladed plastic trim tool in order to release the driver footrest from the driver footrest bracket. |
