Sunroof Housing Rear Drain Hose Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

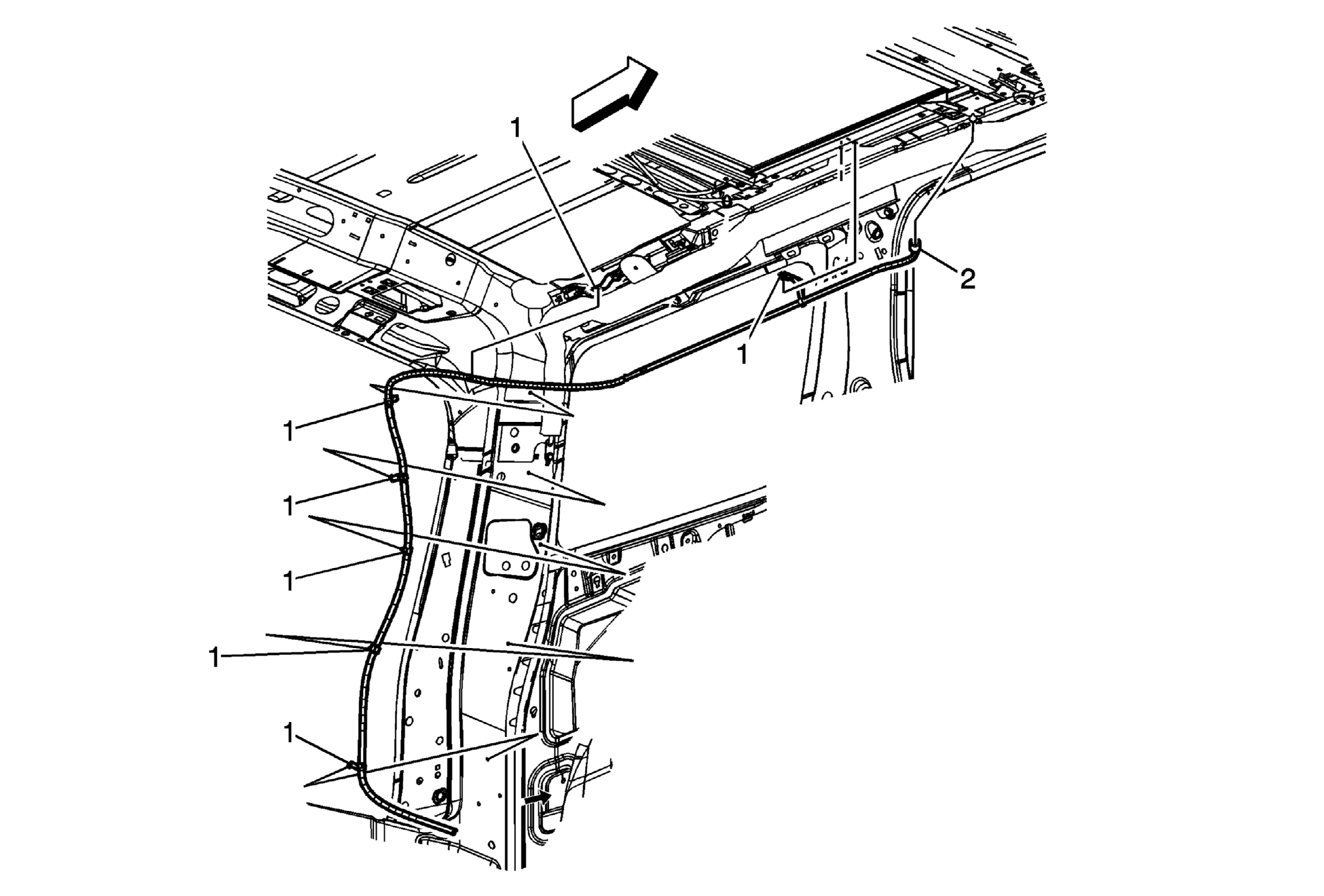

Fig 1: Sunroof Housing Rear Drain Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headliner. Only do those step in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement .
1	Sunroof Drain Hose Retainers (Qty: 8)
2	Sunroof Drain Hose Procedure Disconnect the sunroof drain hose from the sunroof module spigot. When install drain hoses, ensure to route the end of the drain hose through the access hole in the side quarter panel to prevent interior water leaks.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headliner. Only do those step in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement .

Sunroof Drain Hose Retainers (Qty: 8)

Sunroof Drain Hose

Procedure

Disconnect the sunroof drain hose from the sunroof module spigot.
When install drain hoses, ensure to route the end of the drain hose through the access hole in the side quarter panel to prevent interior water leaks.
