Removal Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
- Cover the following parts to protect from broken glass:
- Upper dash pad
- Defroster outlets and A/C outlets
- Seats and carpeting
- If equipped, inspect the roof window reveal molding for damage. If the roof window reveal molding is damaged or becomes detached from the window, the reveal molding cannot be reused and must be replaced.
- Remove the window from the urethane adhesive.
- Leave a base of urethane approximately 2 mm (0.078 in) on the pinch-weld flange.
- The only suitable lubrication is clear water.

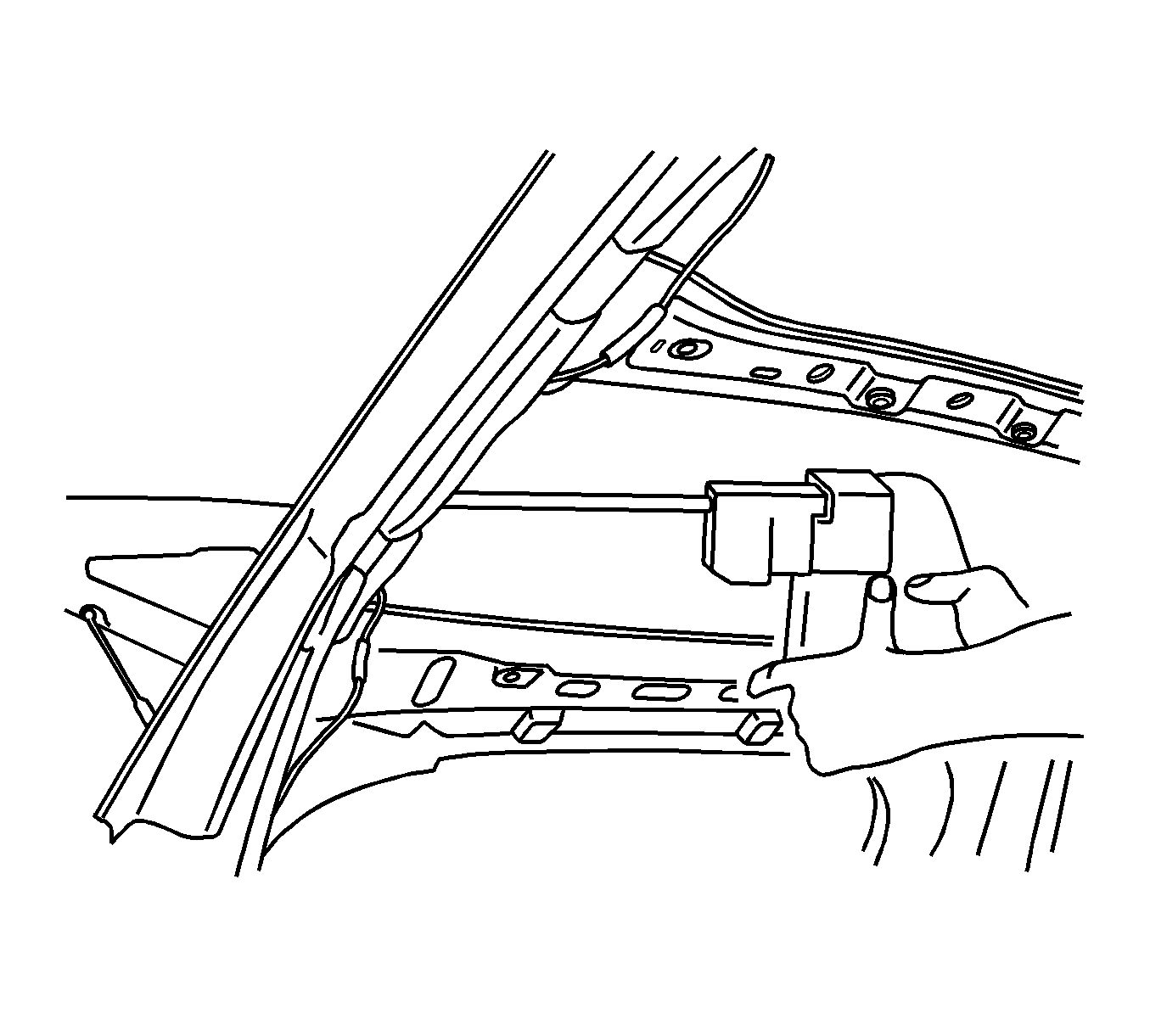

- Use J 24402-A glass sealant (cold knife) remover, J 39032 stationary glass removal tool or equivalent in order to cut the urethane bead to remove the window.

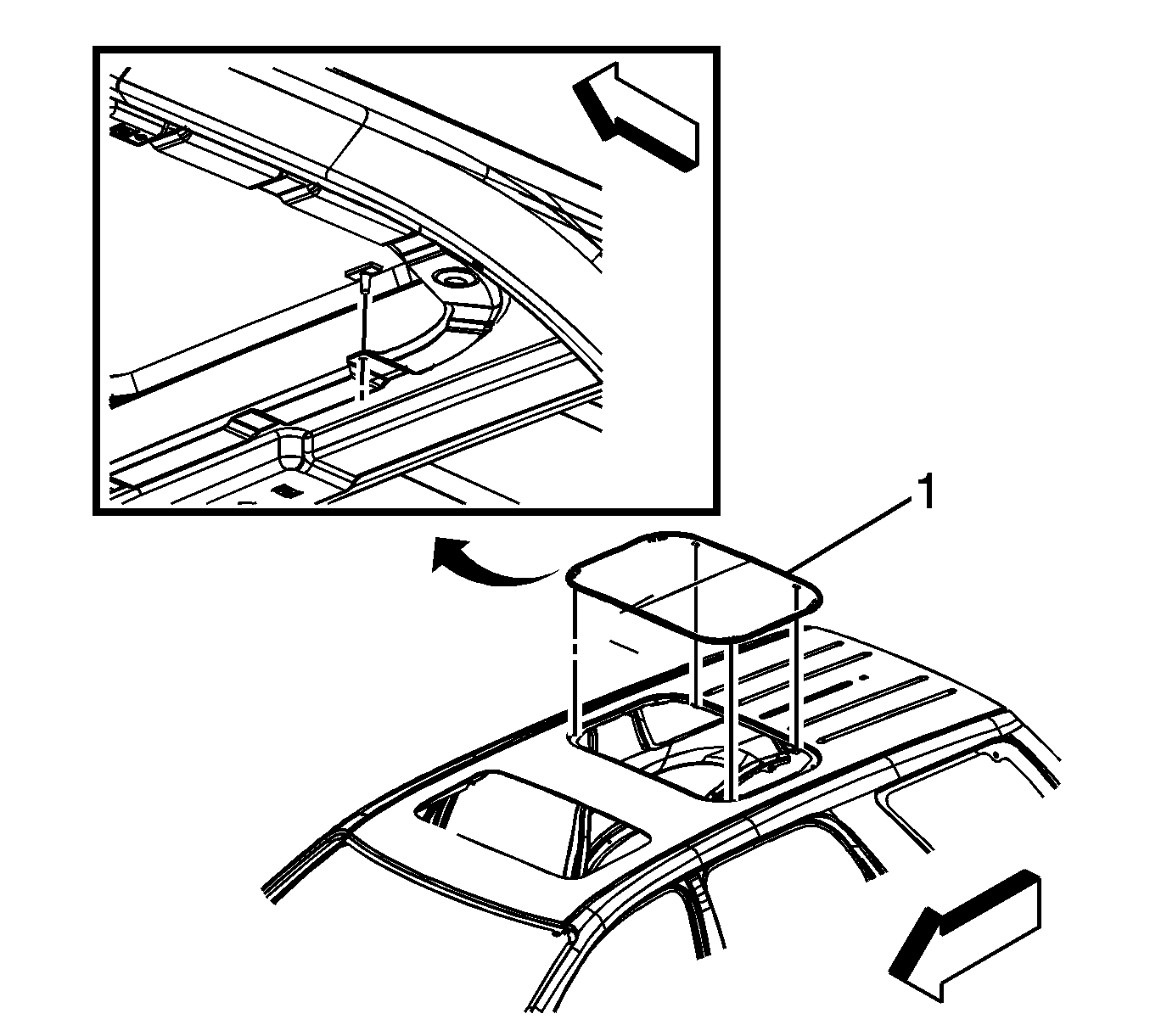

- With the aid of an assistant, remove the window (1) from the vehicle.
WARNING:
Refer to Cracked Window Warning .
WARNING:
Refer to Defroster Outlet Warning .
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
NOTE:
The roof window reveal molding is a one piece molding and fills the cavities between the body and the roof window (1).
NOTE:
Keep the cutting edge of the tool against the window.
