Section 443 (Wiring Systems And Power Management - Schematic Wiring Diagrams - Ignition Lock Schematics)
>>
Schematic Wiring Diagrams
>>
Ignition Lock Wiring Schematics
>>
Ignition Lock
Ignition Lock
WARNING:
This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

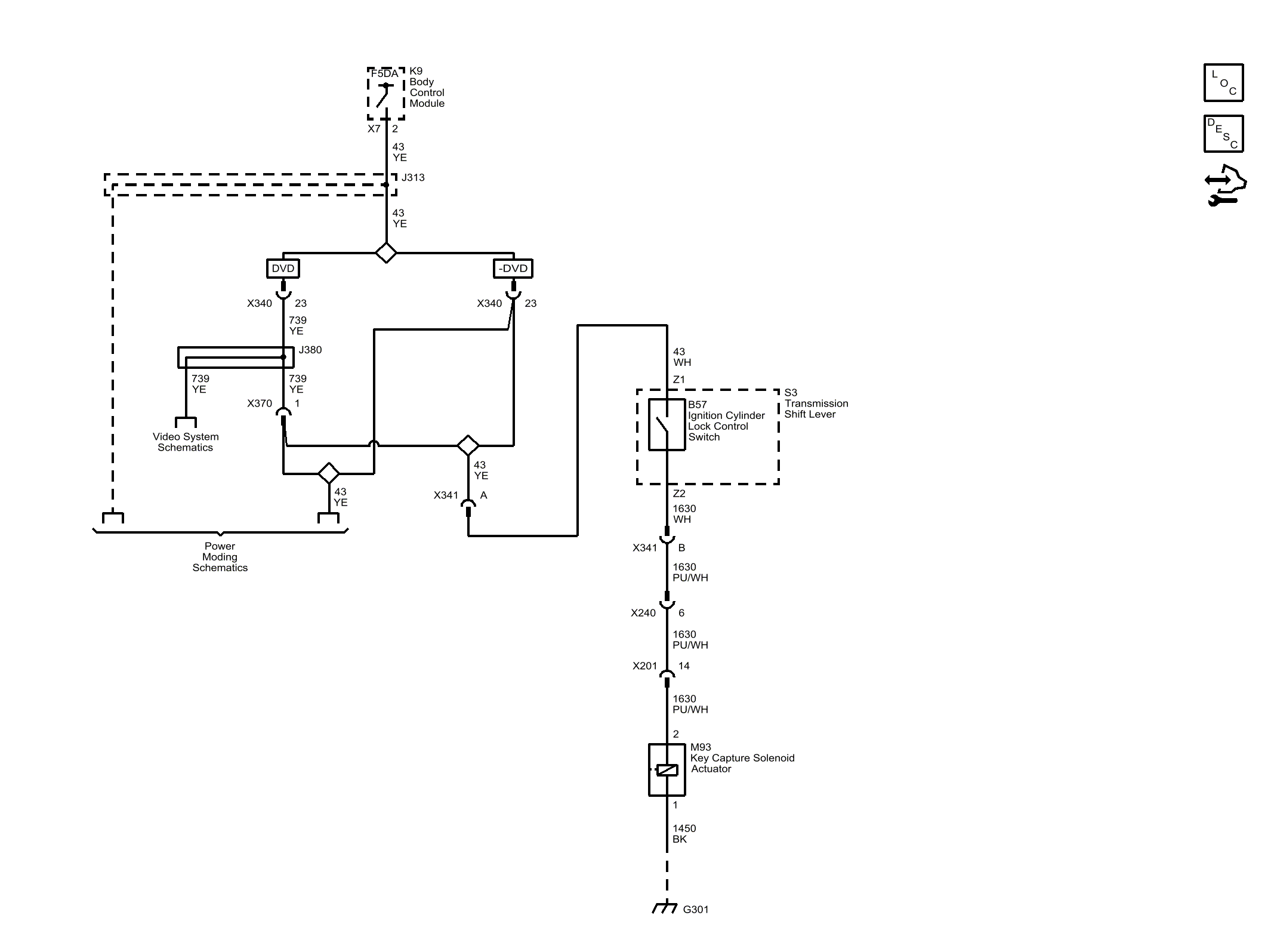

Fig 1: Ignition Lock
Courtesy of GENERAL MOTORS COMPANY
