Turn Signal Bulb Replacement (Acadia)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

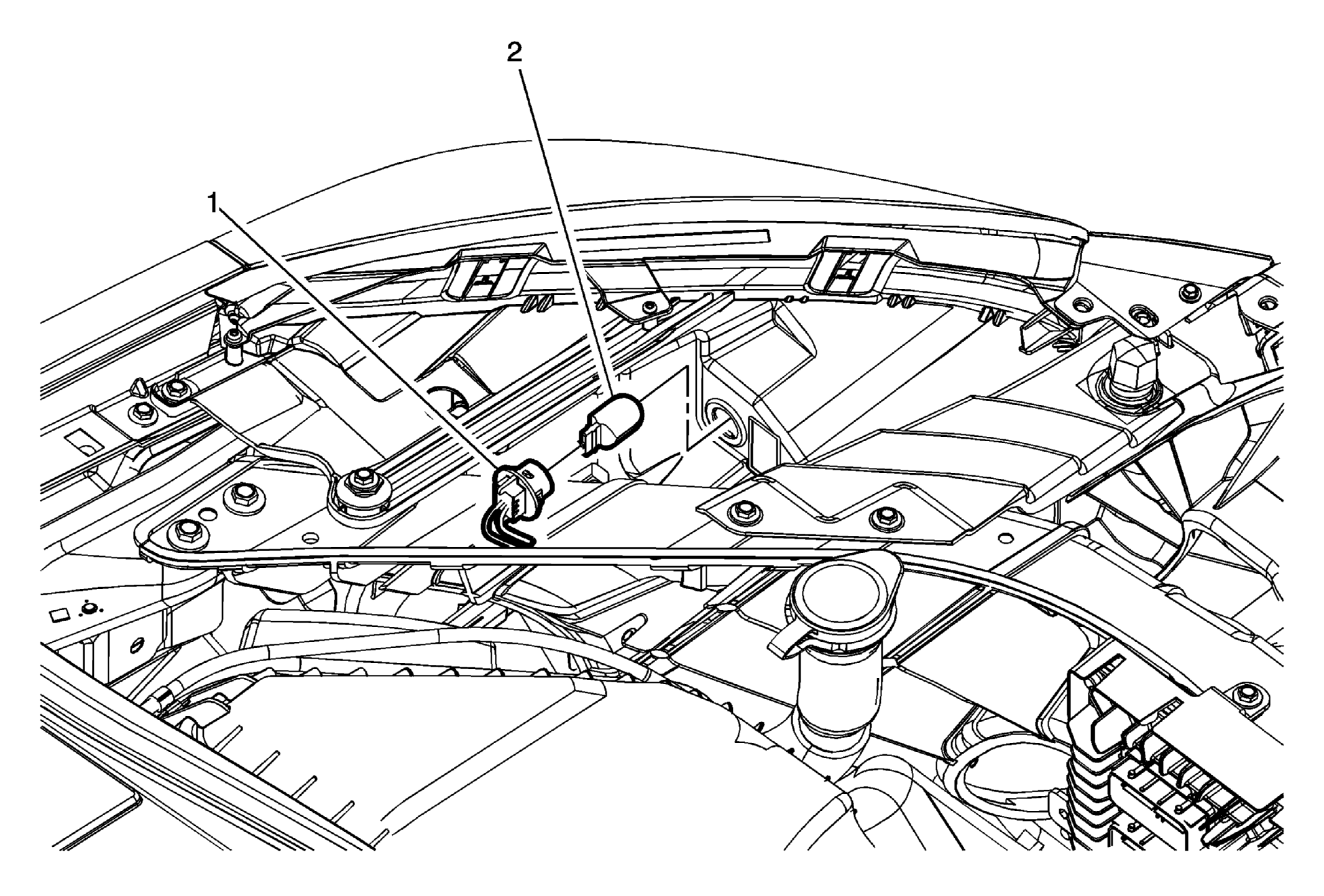

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Acadia) . |
|
| 1 | Turn Signal Bulb Socket Procedure Turn the turn signal bulb socket counter-clockwise and pull from headlamp. |
| 2 | Turn Signal Bulb Procedure Pull the turn signal bulb straight from the turn signal bulb socket. |
