Stop and Tail Lamp Bulb Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

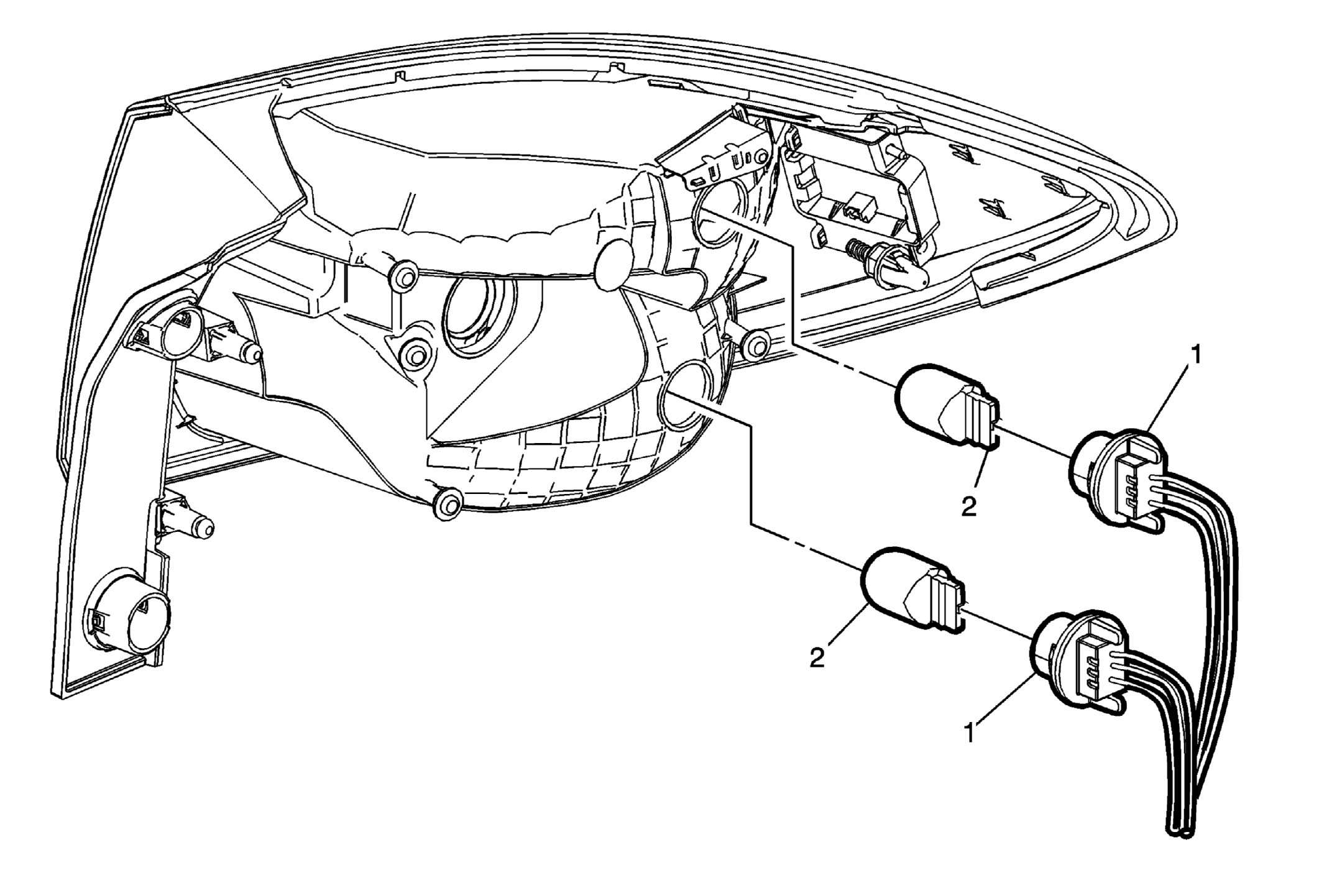

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tail lamp. Refer to Tail Lamp Replacement (Traverse) . |
|
| 1 | Rear Lamp Wiring Harness Procedure Rotate and remove the rear lamp wiring harness from the tail lamp. |
| 2 | Stop and Tail Lamp Bulb Procedure Pull the stop and tail lamp bulb straight from the rear lamp wiring harness socket. |
