Stop and Tail Lamp Bulb Replacement (Enclave)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

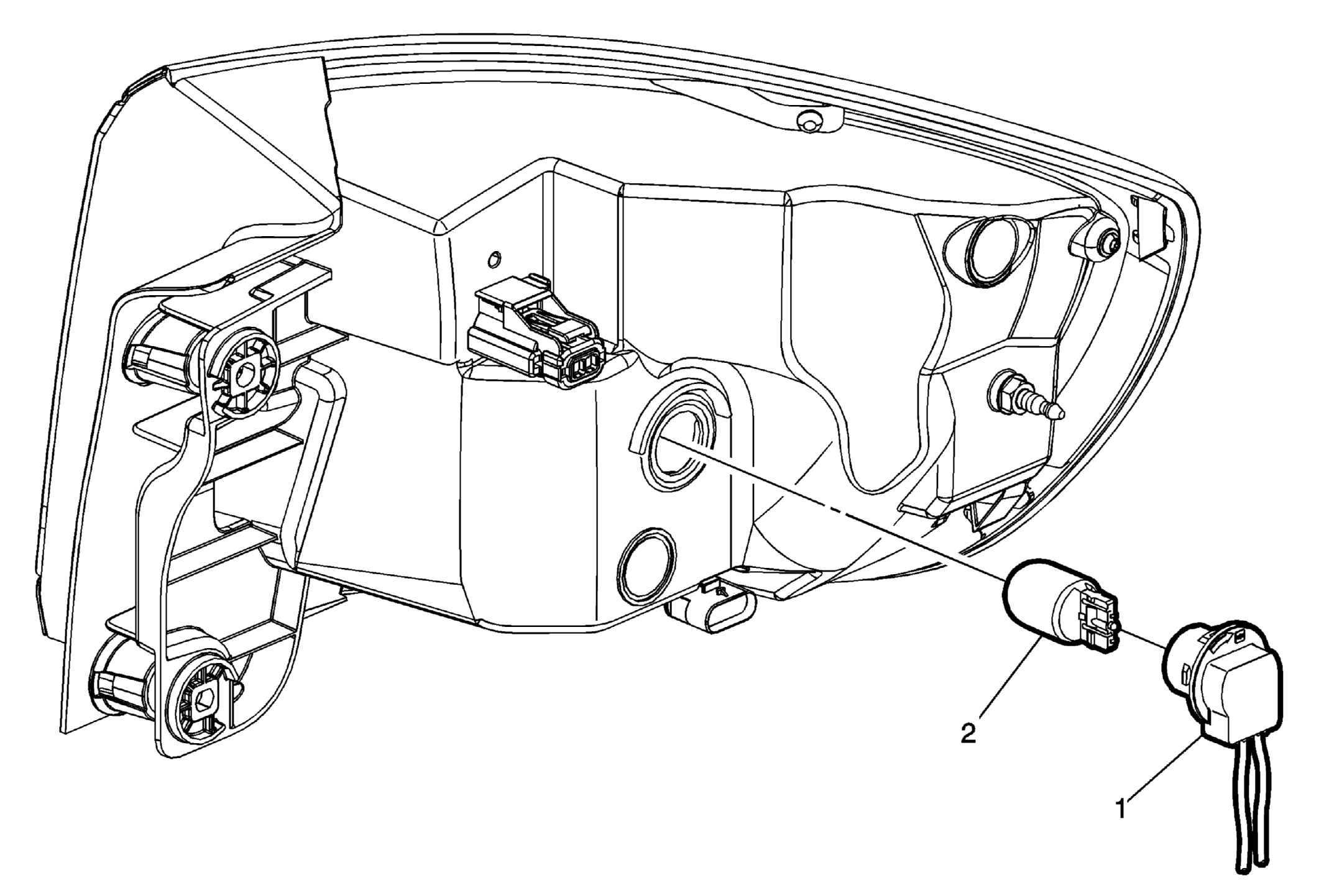

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tail lamp. Refer to Tail Lamp Replacement (Enclave) . |
|
| 1 | Tail Lamp Bulb Socket Procedure Rotate counter-clockwise and remove from the tail lamp. |
| 2 | Tail Lamp Bulb Procedure Pull tail lamp bulb straight from tail lamp bulb socket. |
