Rear License Plate Lamp Wiring Harness Replacement (Without UVC)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

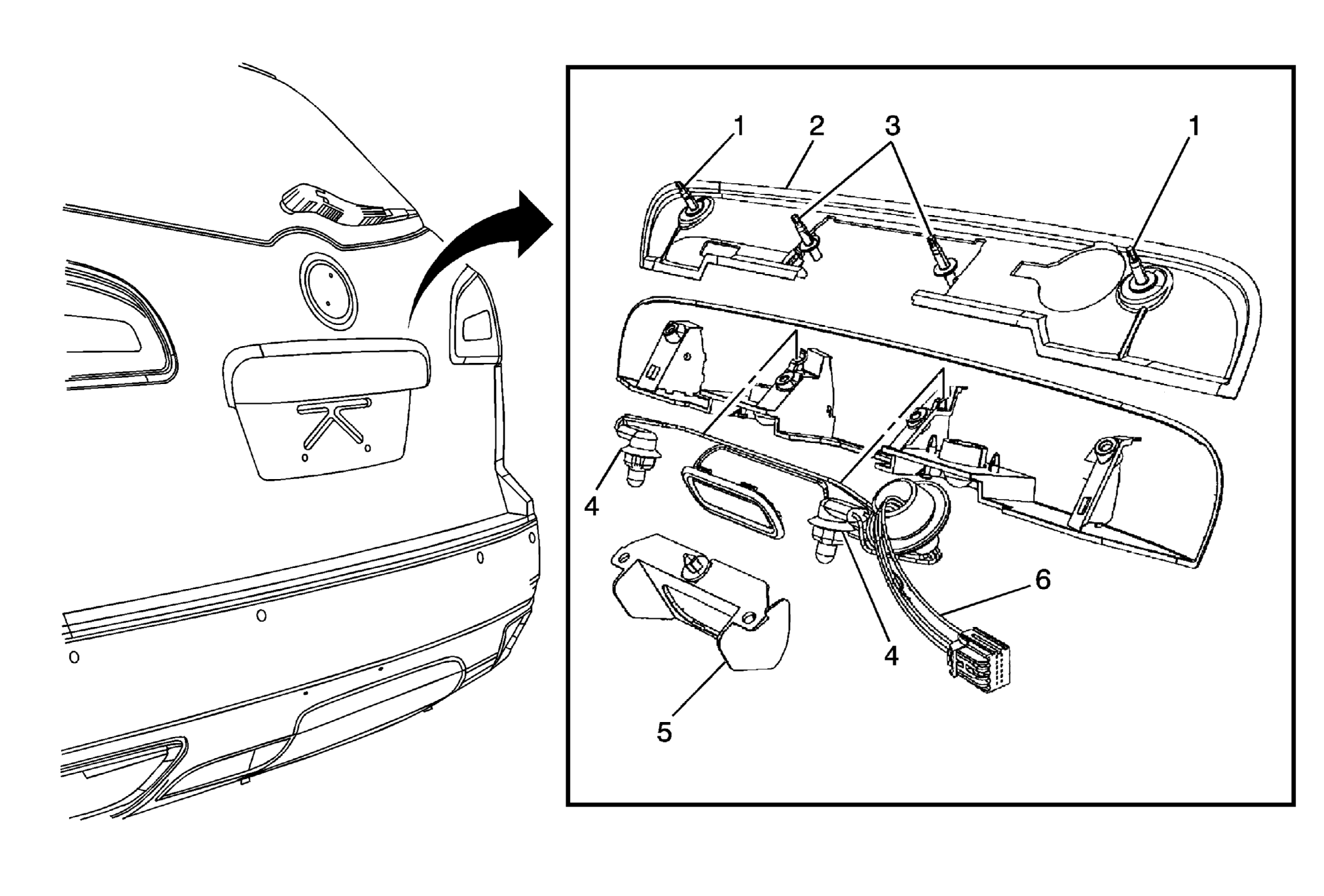

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear liftgate applique. Refer to Liftgate Applique Replacement (Traverse)Liftgate Applique Replacement (Acadia) . |
|
| 1 | Applique Outer Retainer Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Remove the screw from the applique. |
| 2 | Applique Isolator Procedure Remove the isolator. |
| 3 | Lift Handle Bracket Screw (Qty: 2) Procedure Remove the bracket screws. |
| 4 | Rear License Plate Bulb Socket (Qty: 2) Procedure Disengage the bulb sockets from the liftgate applique lamp housing. |
| 5 | Touch Pad Bracket Procedure Release the touch pad from the bracket. |
| 6 | Rear License Plate Lamp Wiring Harness |
