Rear License Plate Lamp Replacement (Acadia, Enclave)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

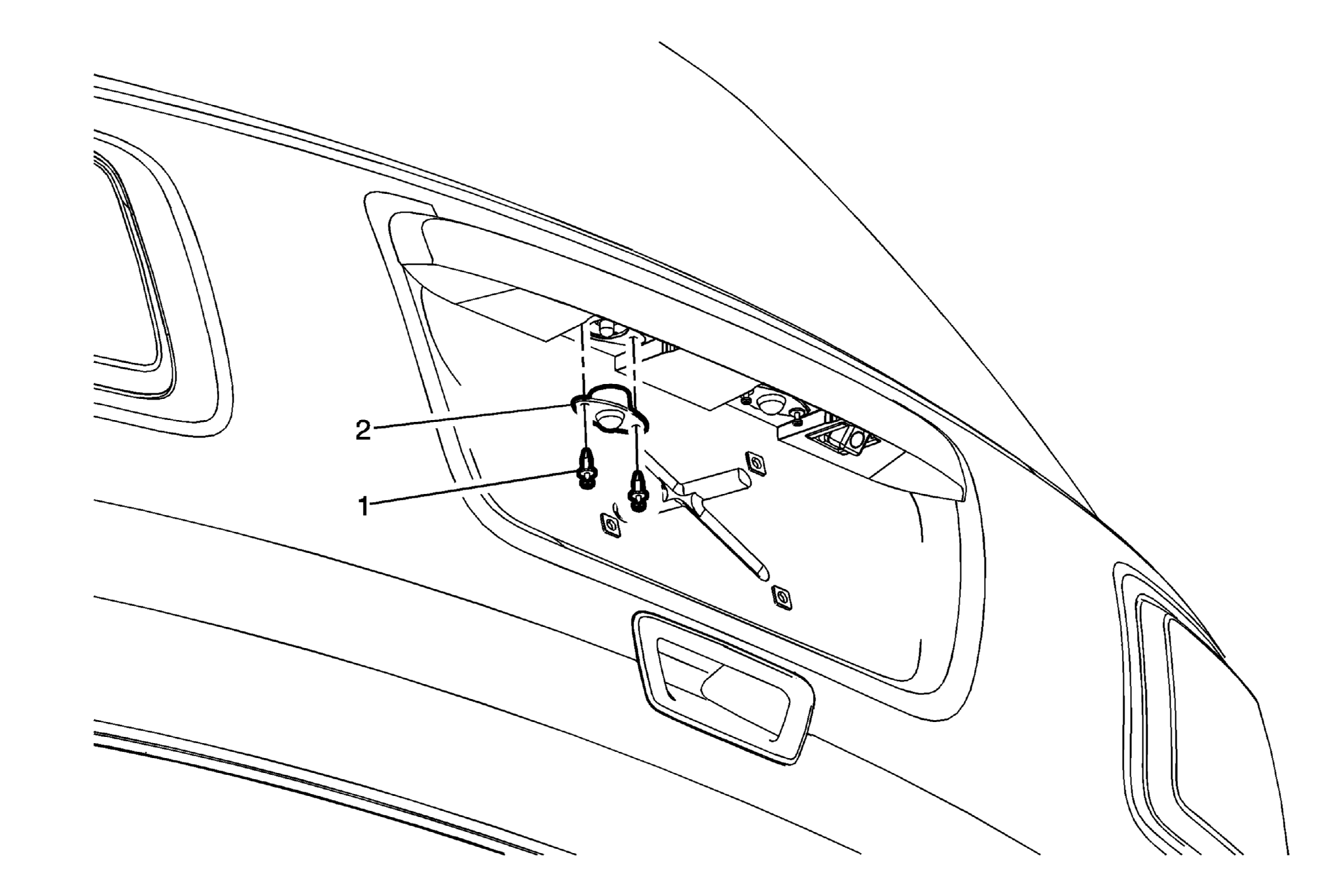

| Callout | Component Name |
|---|---|
| 1 | Rear License Plate Lamp Wiring Harness Retainer (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Rear License Plate Lamp (Qty: 2) Procedure Pull the rear license plate lamp downward and disconnect the bulb socket. |
