Rear Lamp Wiring Harness Replacement (Traverse Tail Lamp)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tail lamp. Refer to Tail Lamp Replacement (Traverse) . |
|

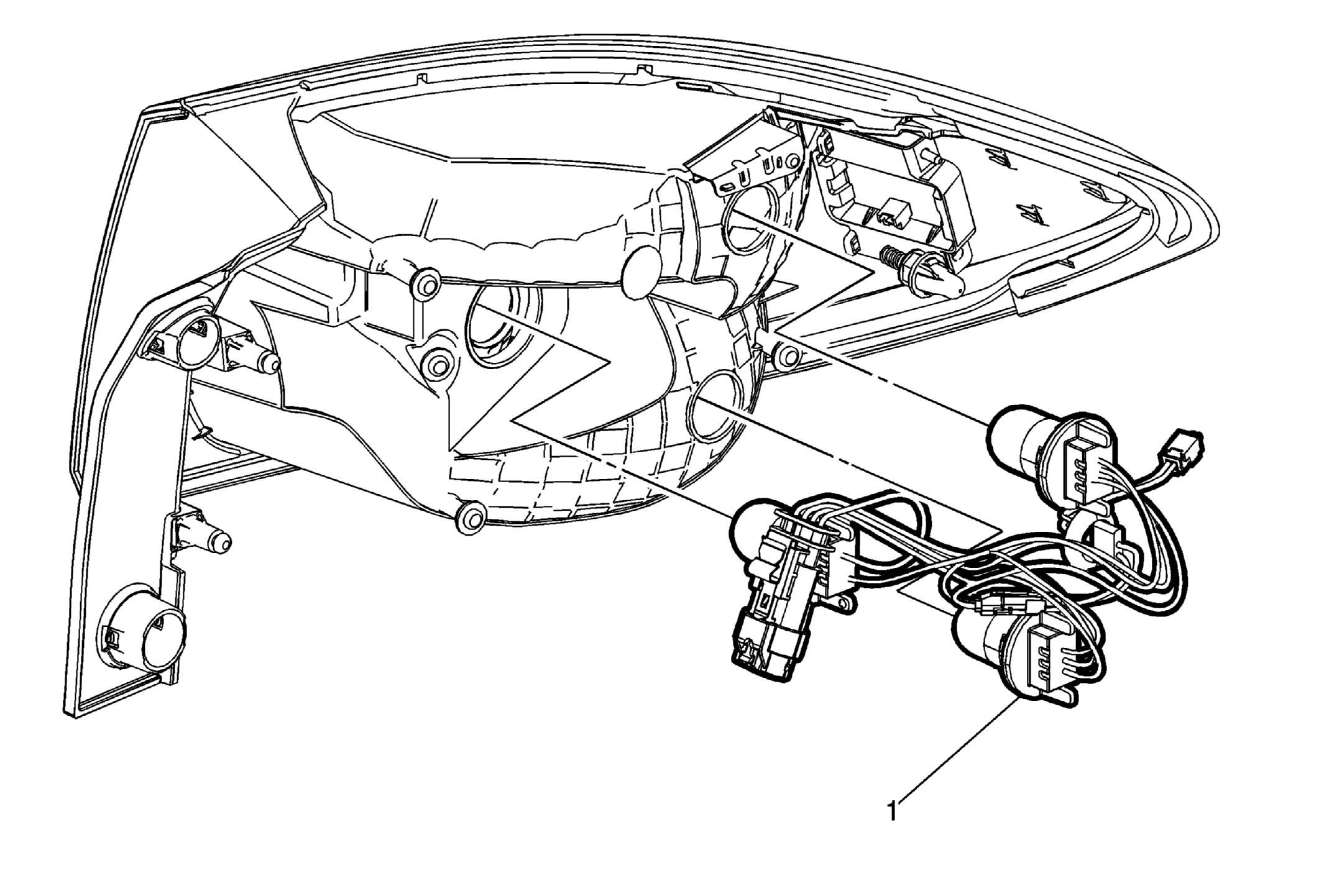

| 1 | Rear Lamp Wiring Harness Procedure Rotate the rear lamp wiring harness sockets counter-clockwise and pull from the backup lamp applique. |
