Parking and Turn Signal Lamp Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

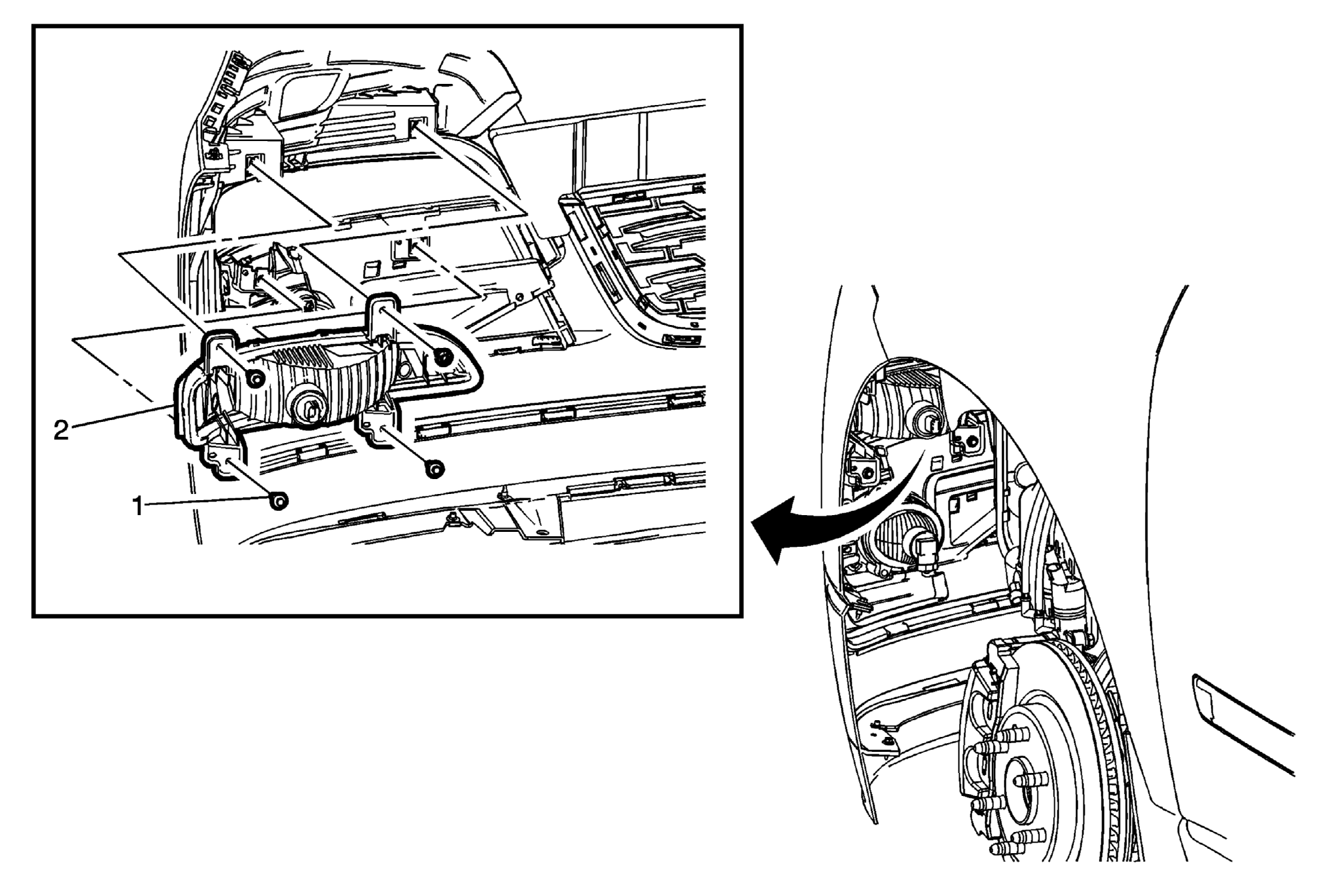

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) . |
|
| 1 | Parking and Turn Signal Lamp Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Parking and Turn Signal Lamp Procedure Disconnect the electrical connector. |
