Front Fog Lamp Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

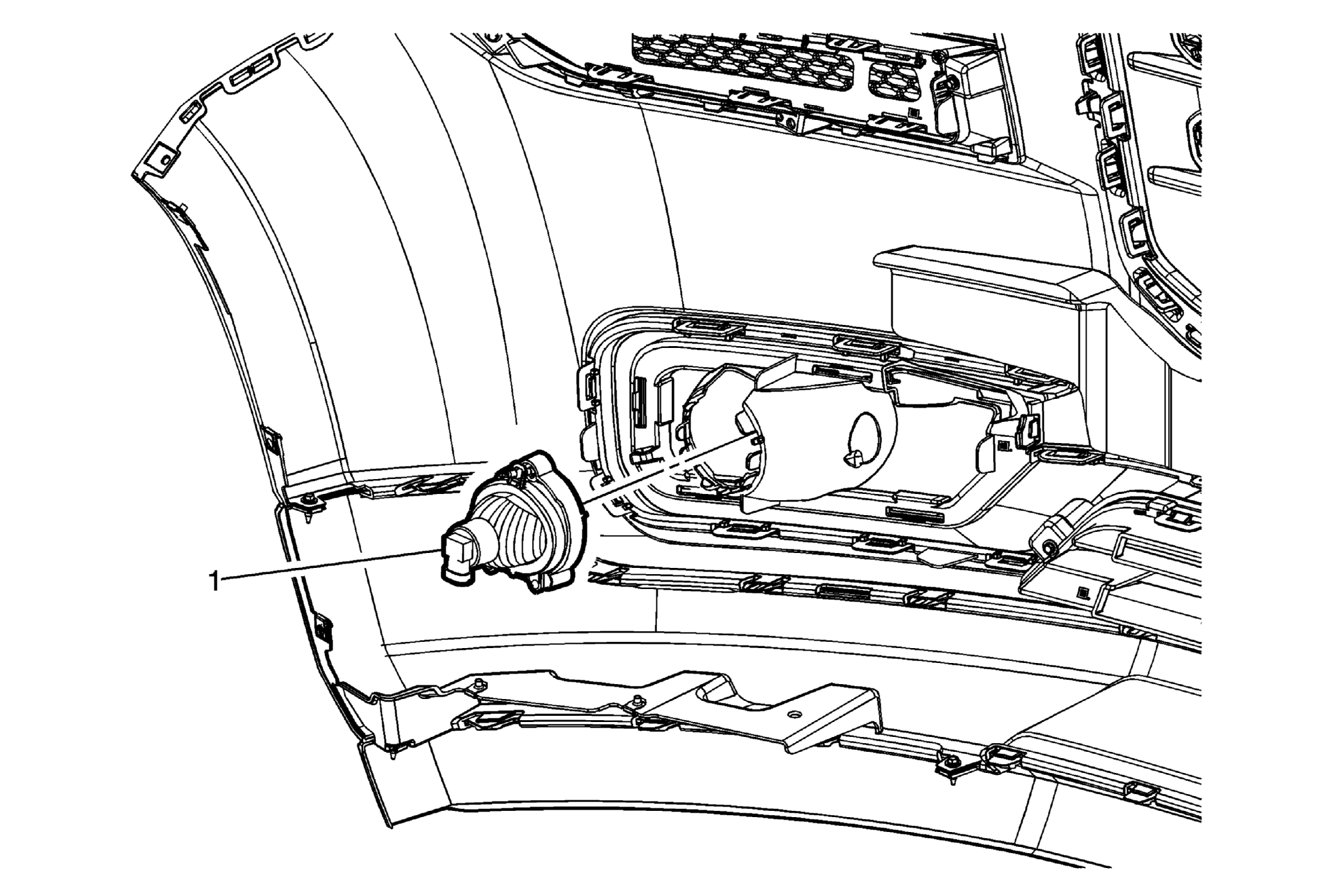

Fig 1: Front Fog Lamp (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front lower grille outer. Refer to Front Lower Grille Replacement (Acadia) .
1	Front Fog Lamp Procedure Disconnect the electrical connector. Using a plastic flat bladed tool release the 8 locking tabs from the front fog lamp and pull from the front bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove the front lower grille outer. Refer to Front Lower Grille Replacement (Acadia) .

Front Fog Lamp

Procedure

Disconnect the electrical connector.
Using a plastic flat bladed tool release the 8 locking tabs from the front fog lamp and pull from the front bumper fascia.
