Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

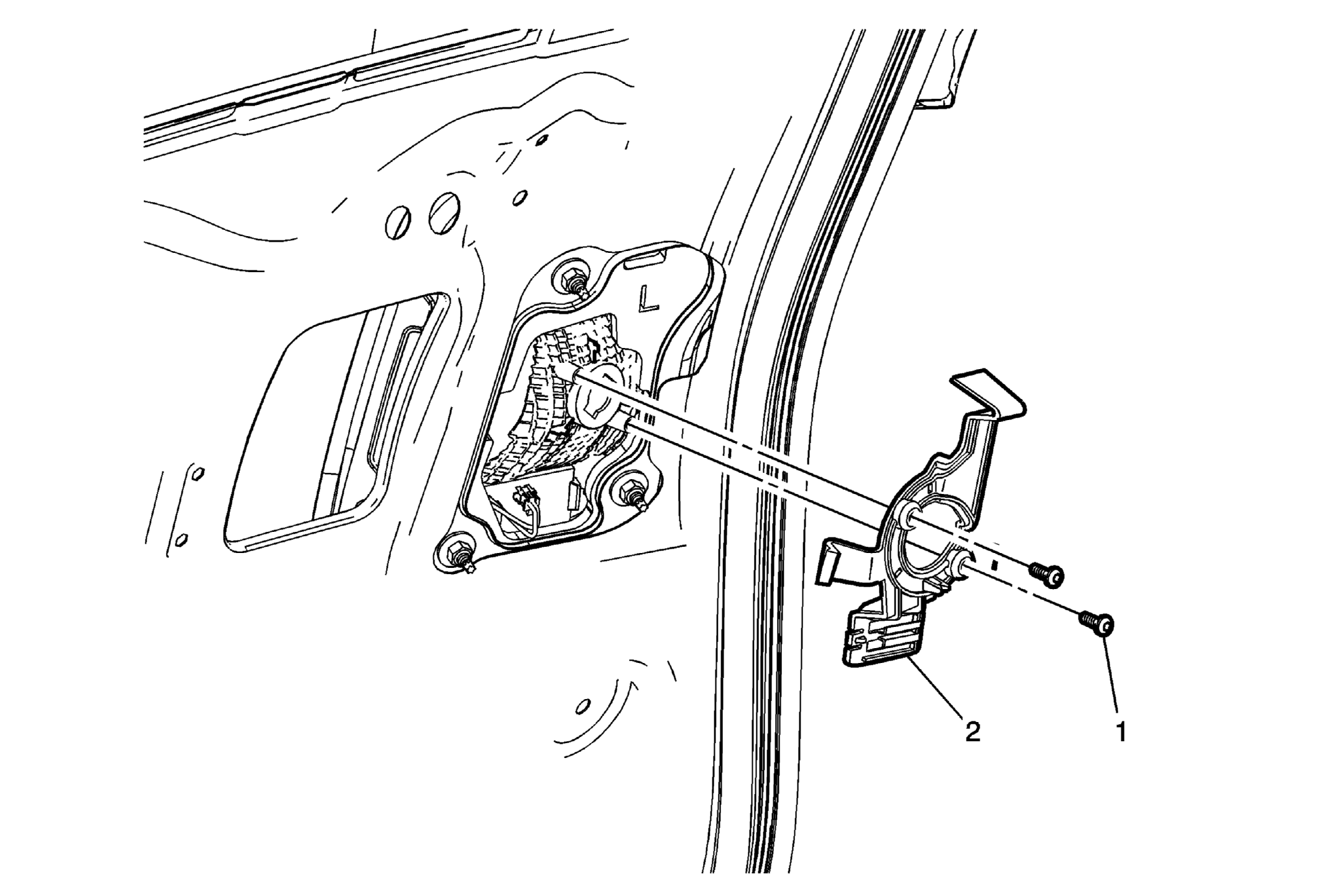

    Fig 1: Body Rear Mount Bracket
    GM3350745Courtesy of GENERAL MOTORS COMPANY
  1. Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement (Acadia) .
  2. Disconnect the backup lamp electrical connector.
  3. Remove the backup lamp applique bulb and socket harness.
  4. Remove the screw (1) securing the body rear mount bracket (2) to the backup lamp applique.
  5. Remove the bracket.

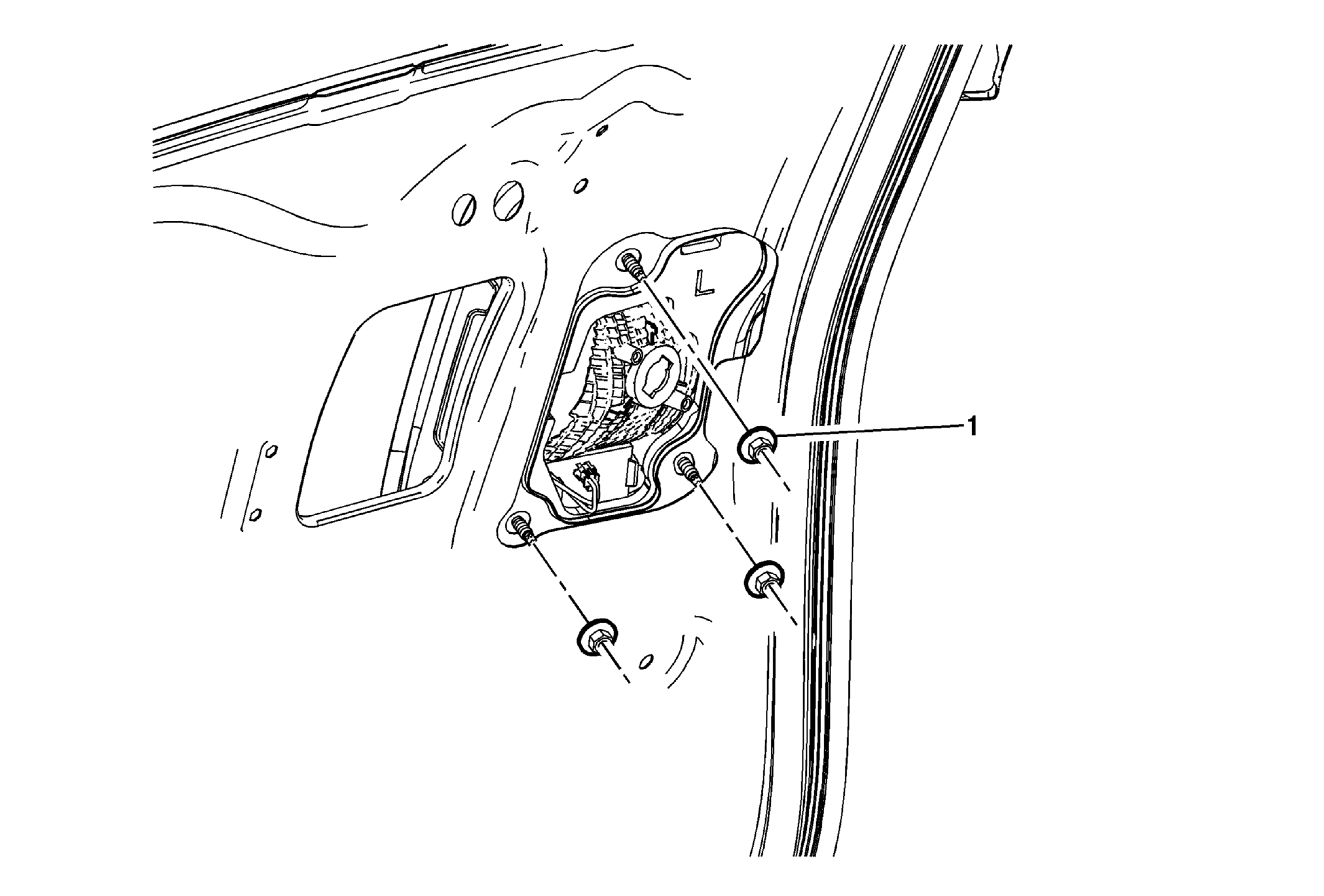

    6. Fig 2: Backup Lamp Applique Nuts
    GM3350748Courtesy of GENERAL MOTORS COMPANY
  6. Remove the backup lamp applique nuts (1).

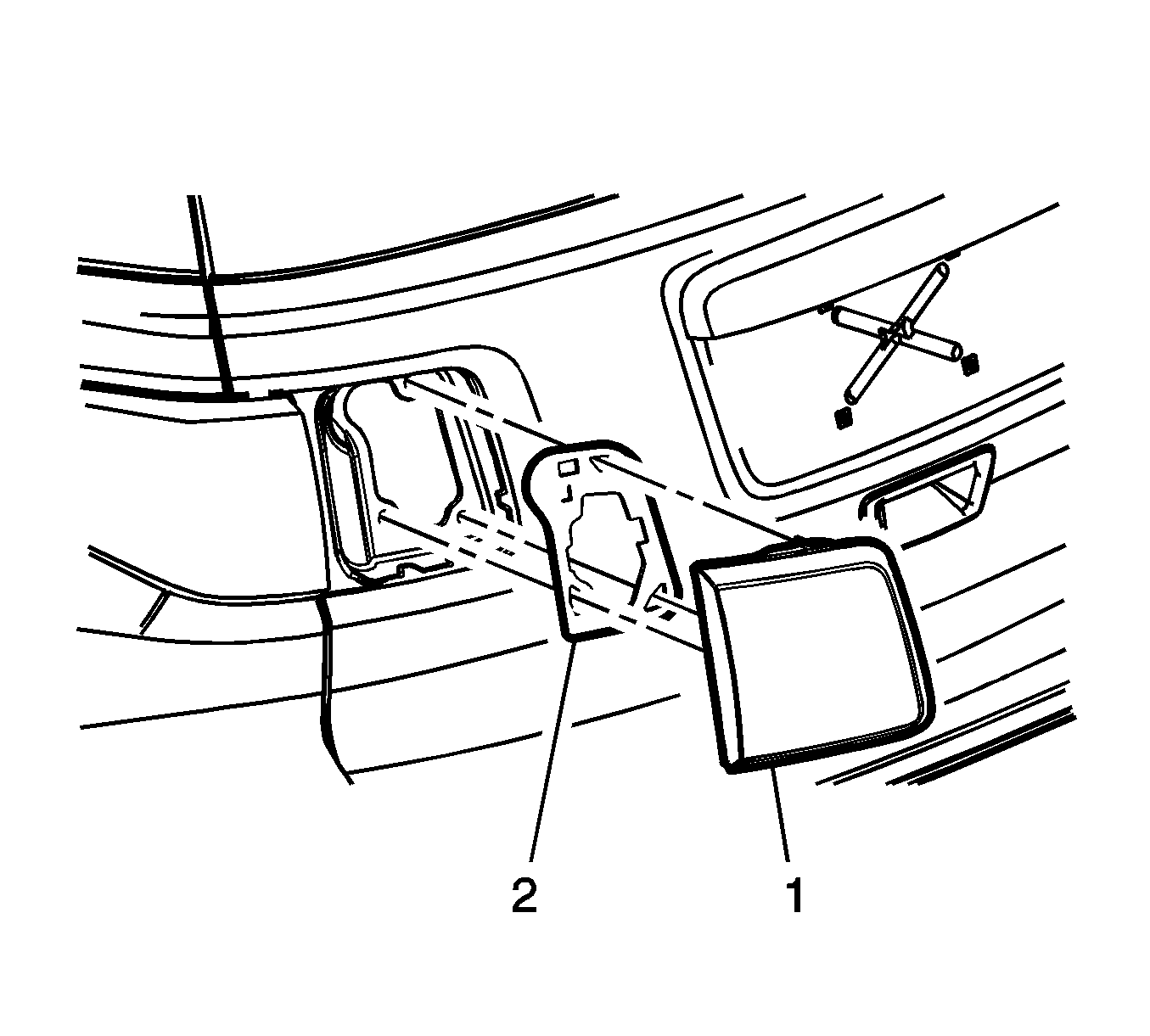

    7. Fig 3: Backup Lamp Applique
    GM2889642Courtesy of GENERAL MOTORS COMPANY
  7. Pull the backup lamp applique (2) from the filler panel outer liftgate.
  8. Remove the backup lamp seal (2).
