Steering Column Tilt Wheel and Telescope Switch Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

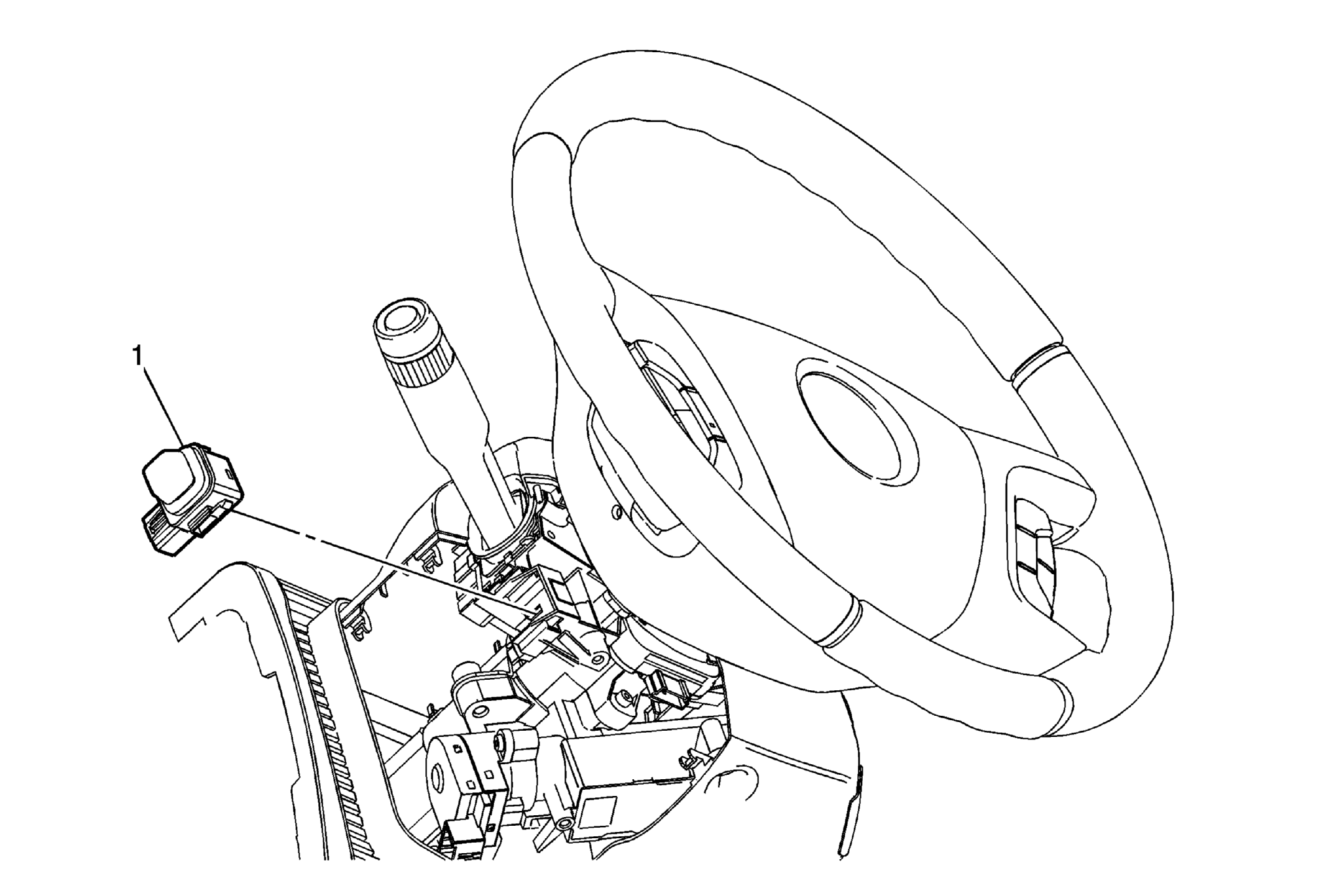

Fig 1: Steering Column Tilt Wheel And Telescope Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1	Steering Column Tilt Wheel and Telescope Switch Procedure Disconnect any electrical connectors as needed. Release the plastic retaining tabs to release the switch from the turn signal switch bracket.

Callout

Component Name

Preliminary Procedure
Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .

Steering Column Tilt Wheel and Telescope Switch

Procedure

Disconnect any electrical connectors as needed.
Release the plastic retaining tabs to release the switch from the turn signal switch bracket.
