Instrument Panel Upper Trim Plate Replacement (Enclave)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

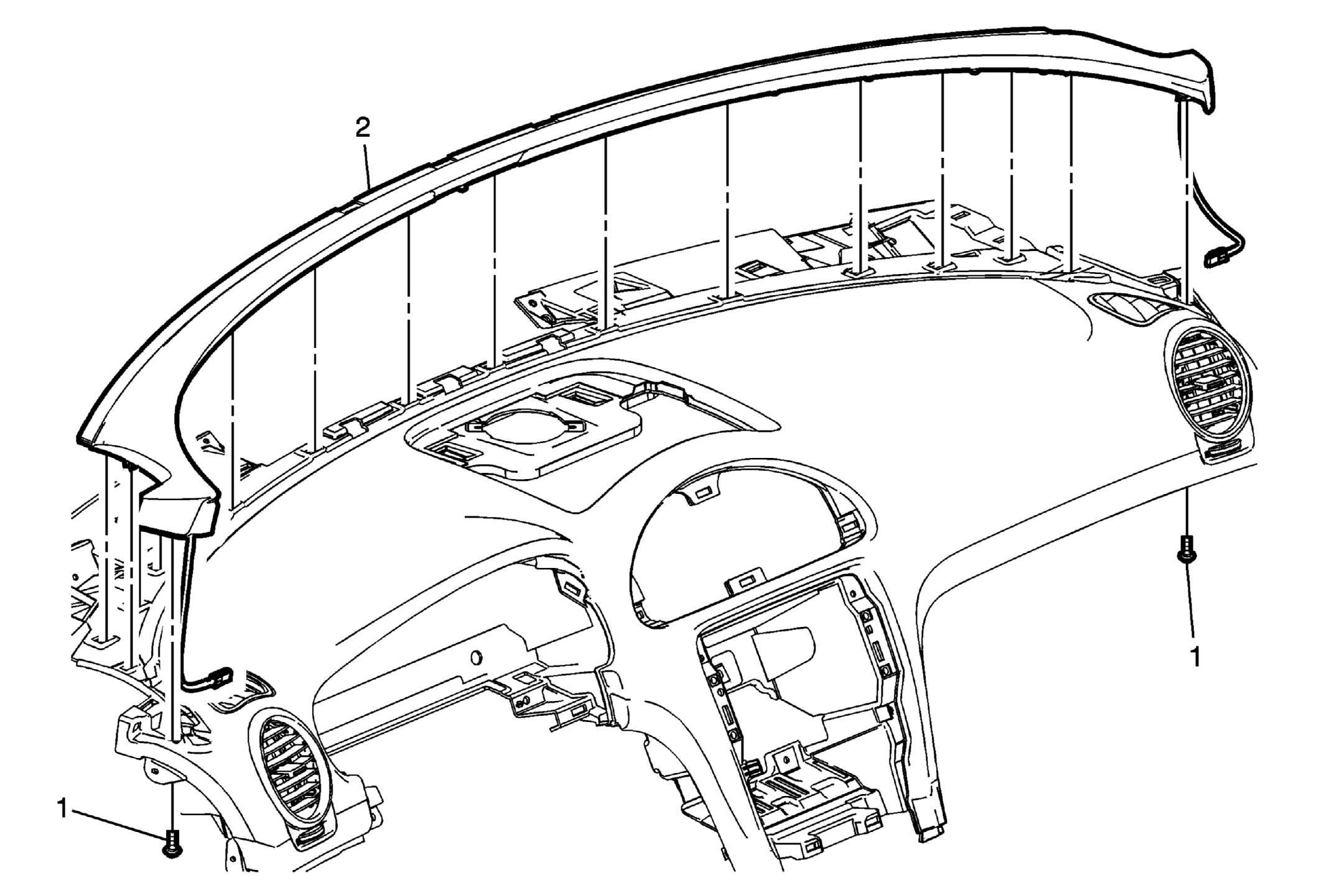

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement (Enclave) . |
|
| 1 | Instrument Panel Upper Trim Plate Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Instrument Panel Upper Trim Plate Procedure Use a flat bladed plastic trim tool to release the retainers securing the instrument panel upper trim plate to the instrument panel trim pad. |
