Removal Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Open the instrument panel compartment door.

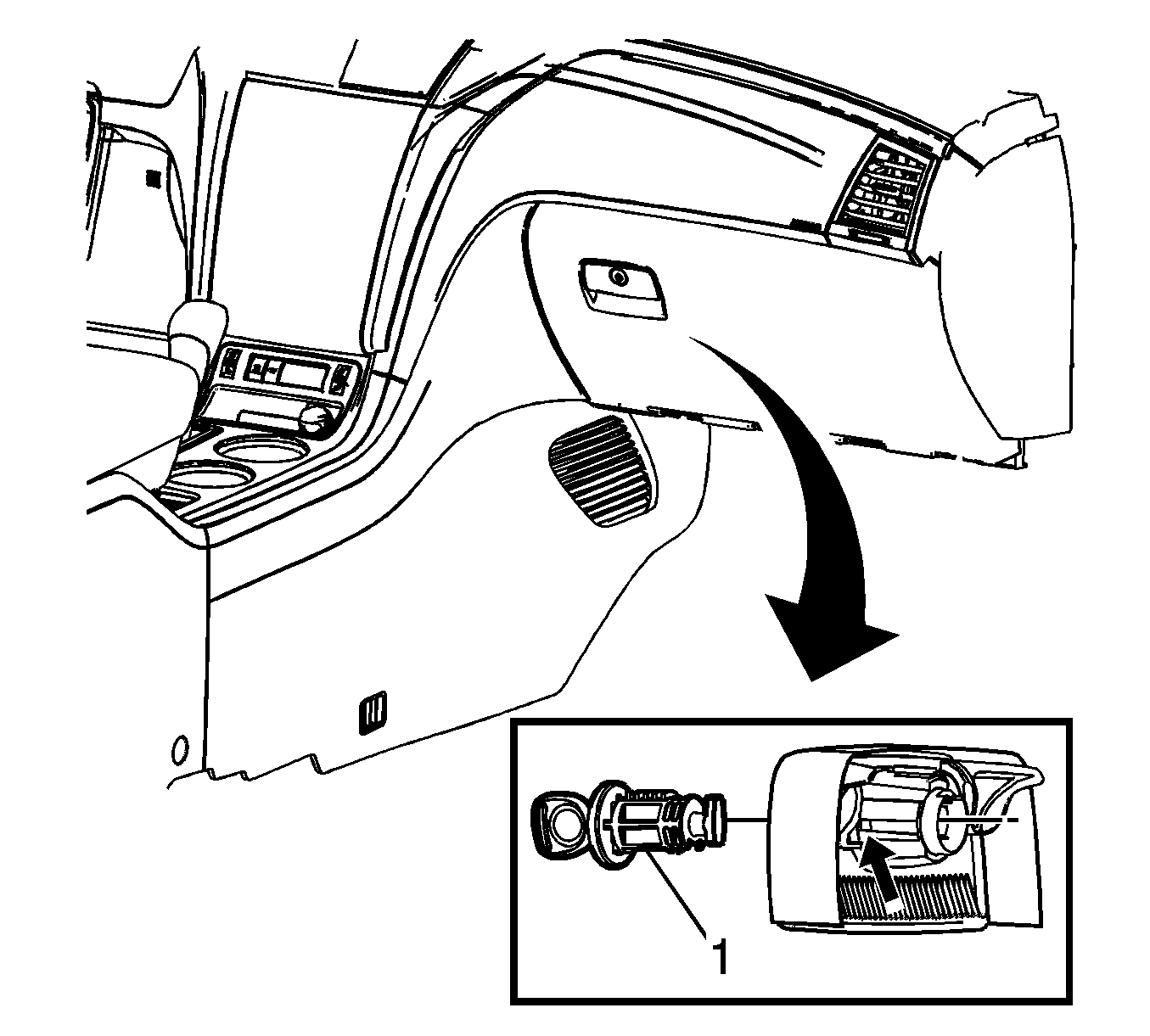

- Insert the key into the instrument panel compartment door lock cylinder (1).
- Lift up on the instrument panel compartment door latch.
- Rotate the key clockwise to the locked position.
- Use a suitable tool and depress the retaining tumbler through the access hole indicated.
- With the retaining tumbler depressed, rotate the lock cylinder (1) clockwise an additional 90° and pull the instrument panel compartment door lock cylinder out of the instrument panel compartment door latch assembly.
