Instrument Panel Compartment Door Dampener Replacement (Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

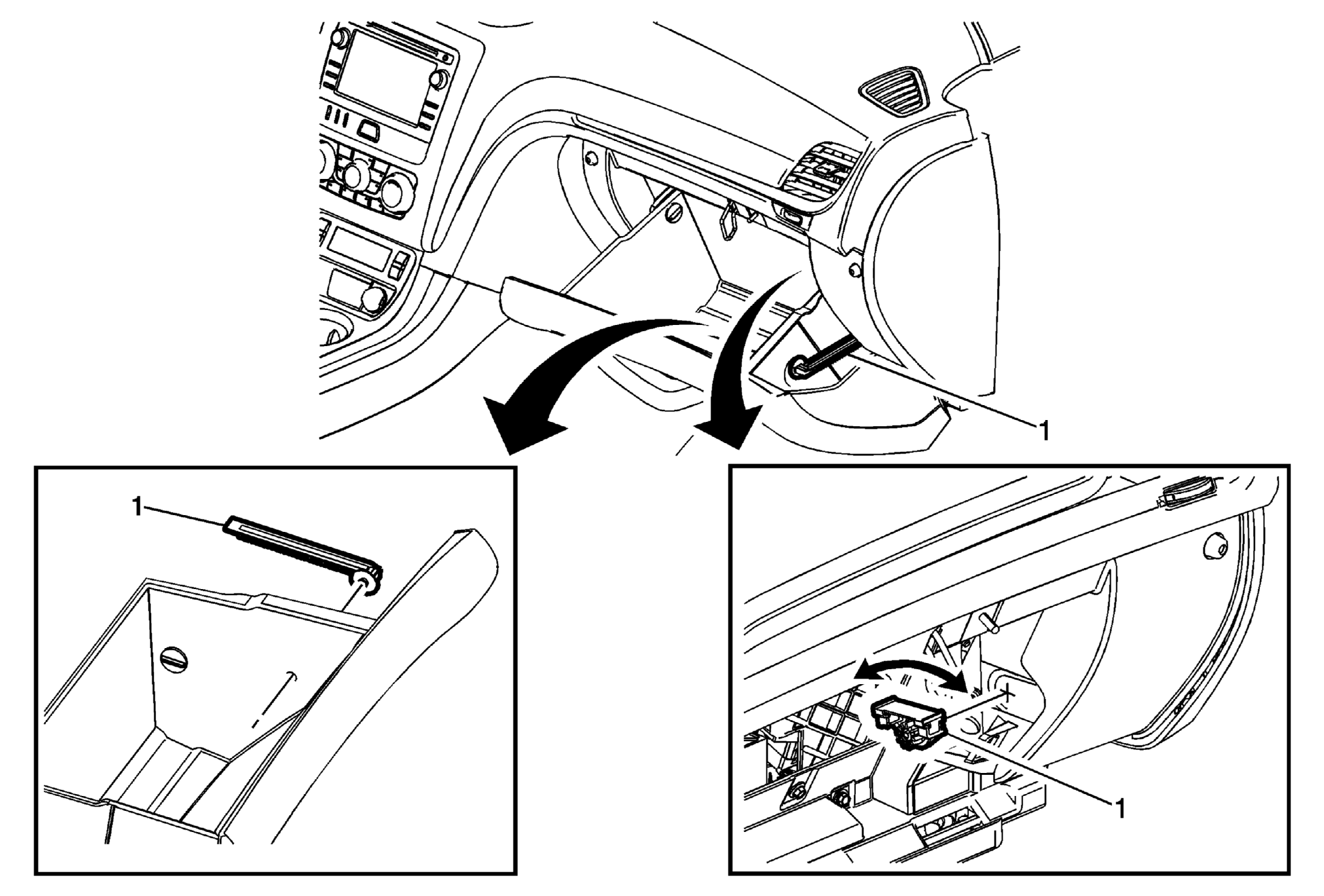

Fig 1: Instrument Panel Compartment Door Dampener (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Compartment Door Dampener Procedure Remove the dampener arm from the compartment door Twist the dampener gear and pull outward to remove the dampener from the instrument panel assembly. When reinstalling the instrument panel compartment door dampener assembly ensure the instrument panel compartment dampener arm is aligned properly to the dampener gear assembly.

Callout

Component Name

Instrument Panel Compartment Door Dampener

Procedure

Remove the dampener arm from the compartment door
Twist the dampener gear and pull outward to remove the dampener from the instrument panel assembly.
When reinstalling the instrument panel compartment door dampener assembly ensure the instrument panel compartment dampener arm is aligned properly to the dampener gear assembly.
