Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

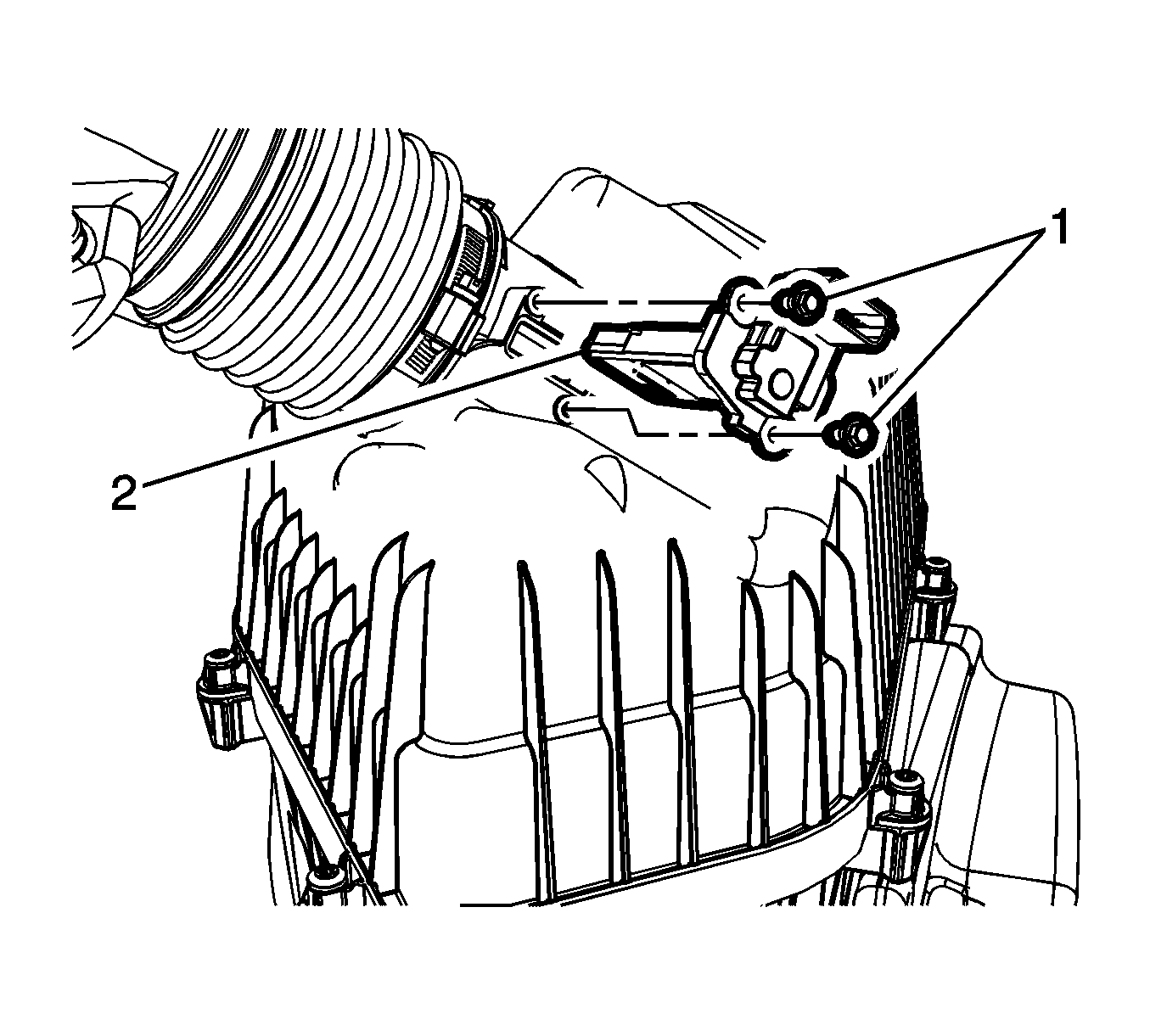

    Fig 1: MAF/IAT Sensor Screws
    GM2667675Courtesy of GENERAL MOTORS COMPANY
  1. Install the MAF/IAT sensor (2) to the air cleaner assembly.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the MAF/IAT sensor screws (1).

    Tighten

    Tighten the screws to 4 N.m (35 lb in).

  3. Connect the engine wiring harness electrical connector to the MAF/IAT sensor.
