Fuel Pump Fuel Feed Hose Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

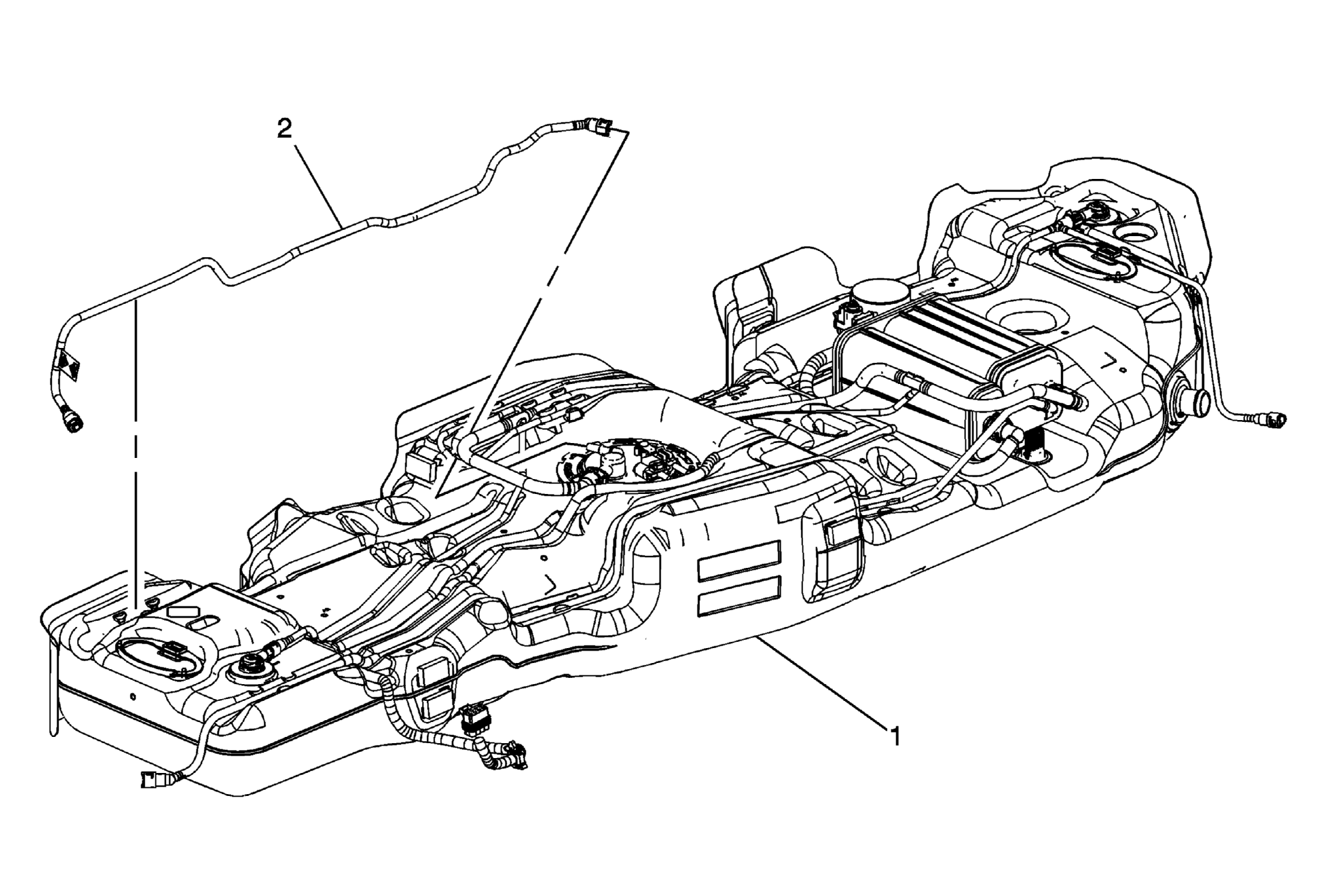

Fig 1: View Of Fuel Pump Fuel Feed Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel tank. Refer to Fuel Tank Replacement . Remove the foam pad insulators.
1	Fuel Tank
2	Fuel Pump Fuel Feed Hose Procedure Disconnect the quick connect fitting from the module. Refer to Plastic Collar Quick Connect Fitting Service . Disengage from the tank retaining features. When installing, route under the evaporative emission (EVAP) canister vent front pipe.

Callout

Component Name

Preliminary Procedures

Remove the fuel tank. Refer to Fuel Tank Replacement .
Remove the foam pad insulators.

Fuel Tank

Fuel Pump Fuel Feed Hose

Procedure

Disconnect the quick connect fitting from the module. Refer to Plastic Collar Quick Connect Fitting Service .
Disengage from the tank retaining features.
When installing, route under the evaporative emission (EVAP) canister vent front pipe.
