Fuel Pressure Sensor Replacement - Fuel Feed Pipe

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

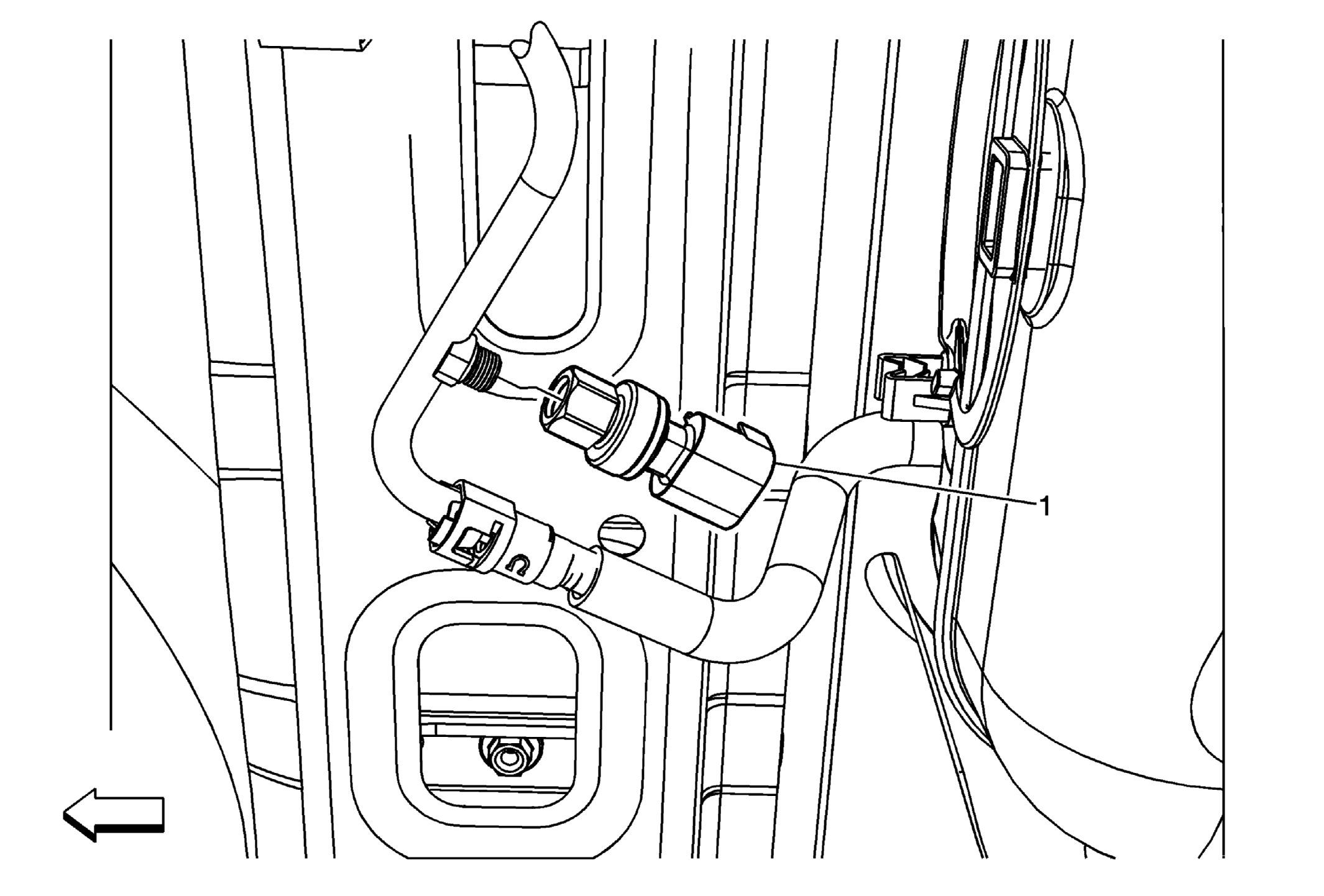

Fig 1: Identifying Fuel Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Relieve the fuel system pressure. Refer to Fuel Pressure Relief Fuel Pressure Relief (High Side) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Fuel Pressure Sensor CAUTION: To avoid fuel system contamination clean the area where the sensor connects to the fuel line or fuel injection fuel rail before removing the sensor. Procedure Use a NEW O-ring seal. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Relieve the fuel system pressure. Refer to Fuel Pressure Relief Fuel Pressure Relief (High Side) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle

Fuel Pressure Sensor

CAUTION:

To avoid fuel system contamination clean the area where the sensor connects to the fuel line or fuel injection fuel rail before removing the sensor.

Procedure

Use a NEW O-ring seal.
Disconnect the electrical connector.
