Evaporative Emission Canister Vent Front Pipe Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

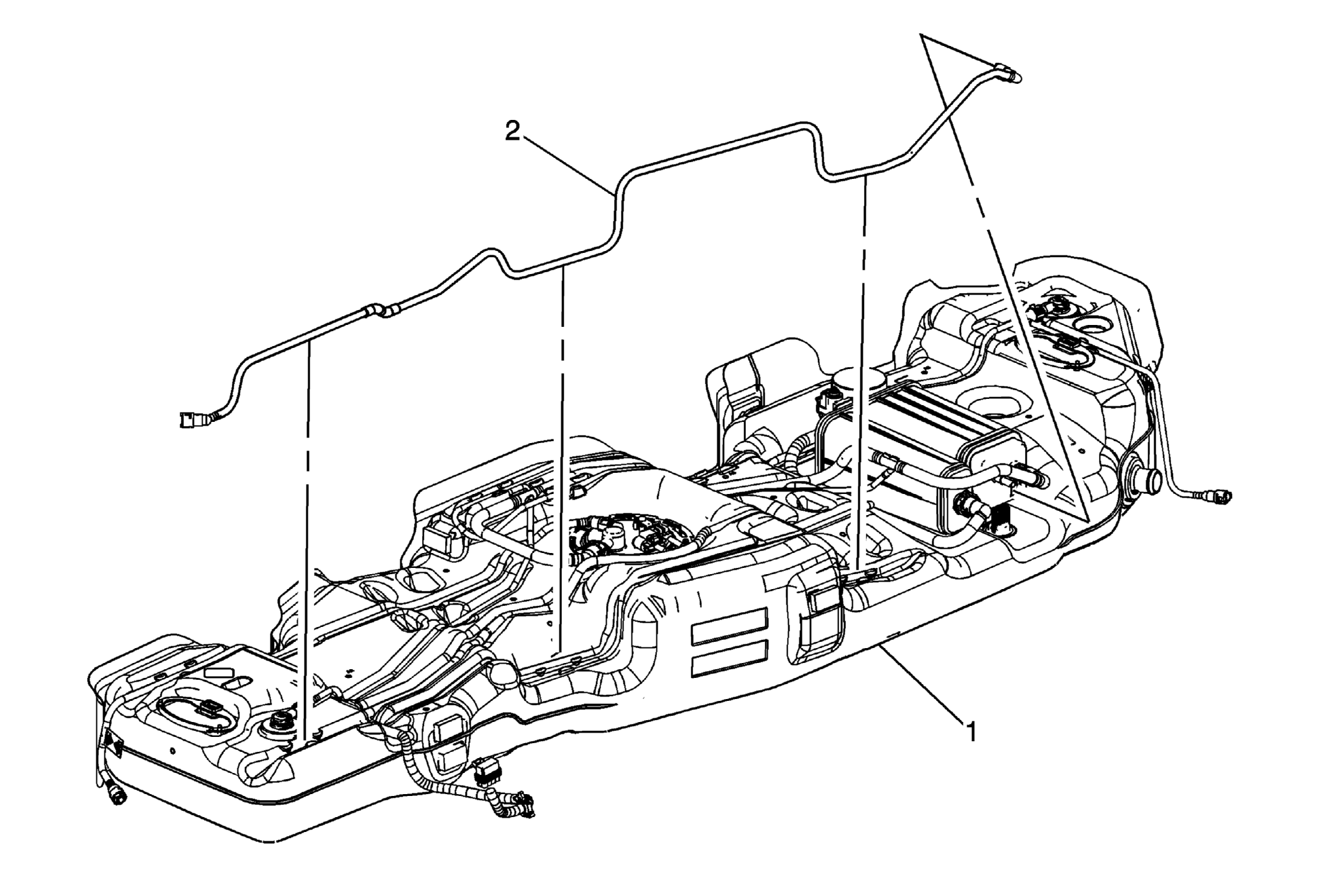

Fig 1: Identifying Evaporative Emission Canister Vent Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel tank. Refer to Fuel Tank Replacement . Remove the foam pad insulators, as required.
1	Fuel Tank
2	Evaporative Emission Canister Vent Front Pipe Procedure Disconnect the quick connect fitting from the evaporative emission canister. Refer to Plastic Collar Quick Connect Fitting Service . Disengage from the tank retaining features.

Callout

Component Name

Preliminary Procedures

Remove the fuel tank. Refer to Fuel Tank Replacement .
Remove the foam pad insulators, as required.

Fuel Tank

Evaporative Emission Canister Vent Front Pipe

Procedure

Disconnect the quick connect fitting from the evaporative emission canister. Refer to Plastic Collar Quick Connect Fitting Service .
Disengage from the tank retaining features.
