Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

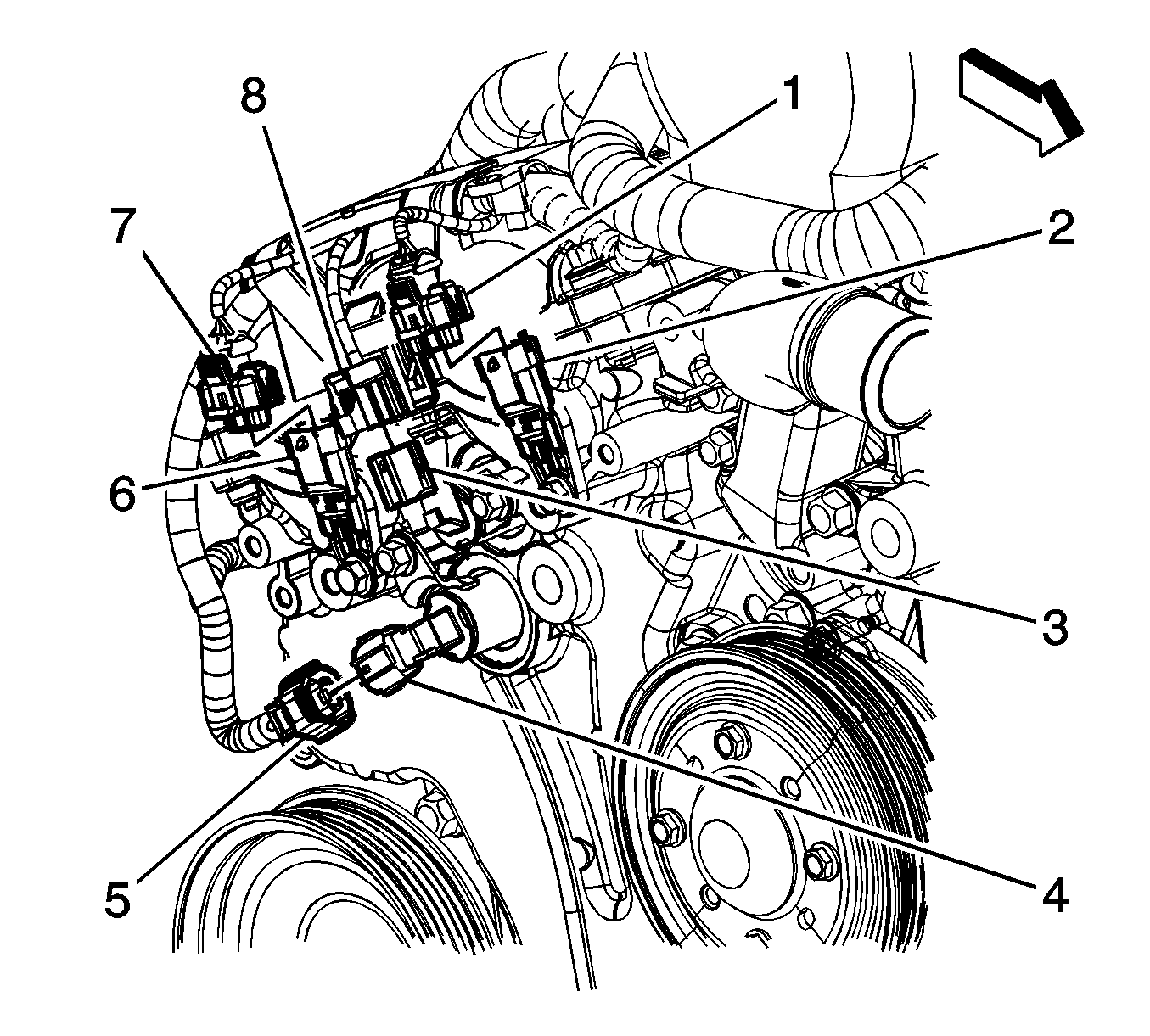

    Fig 1: Identifying Intake & Exhaust Camshaft Position (CMP) Sensors
    GM1860428Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the engine wiring harness electrical connector (1) from the bank 1 intake camshaft position (CMP) sensor (2).

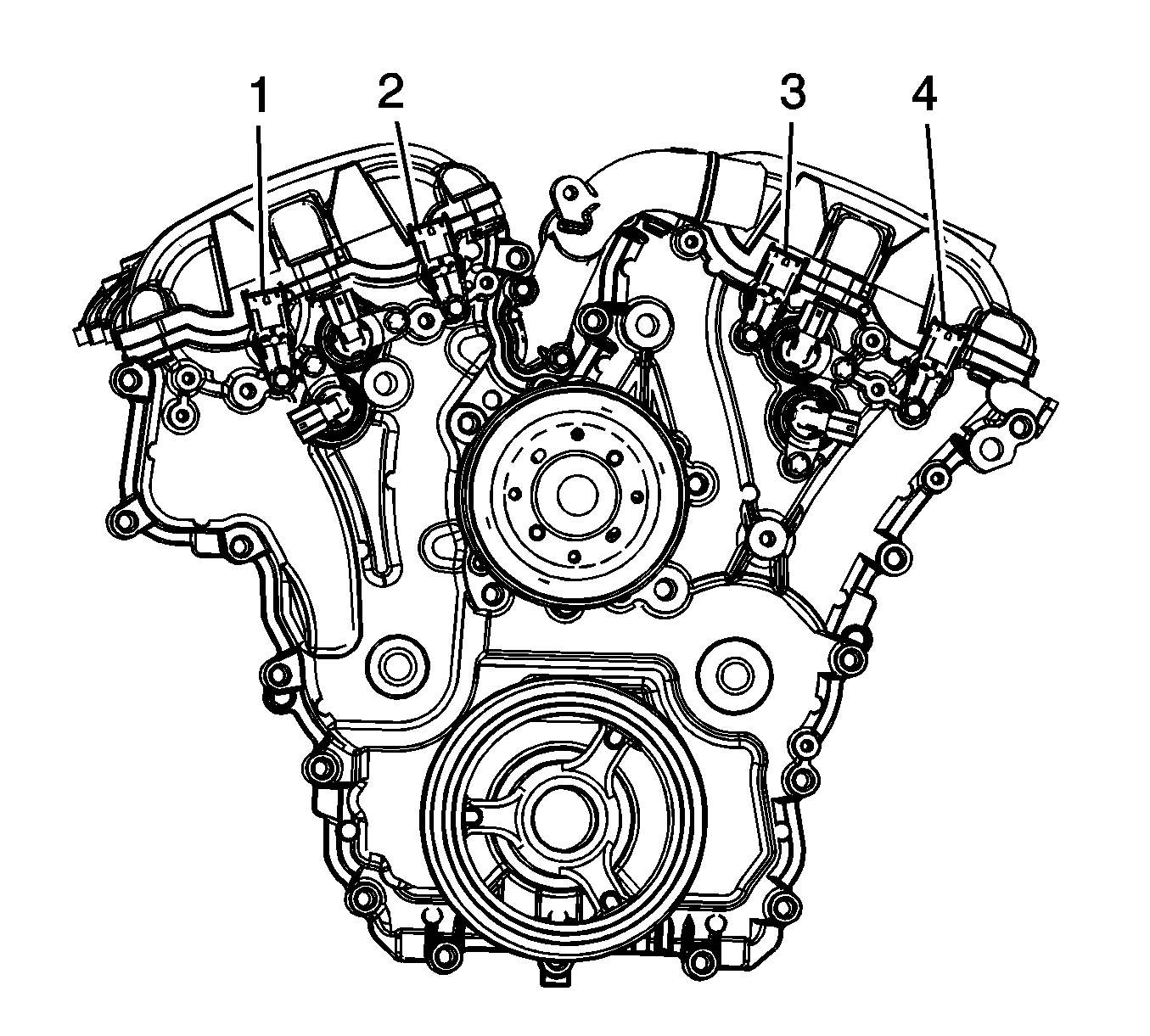

    2. Fig 2: View Of CMP Sensor Bolt & Sensor
    GM1860459Courtesy of GENERAL MOTORS COMPANY
  2. Remove the CMP sensor bolt and sensor (2).
