Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

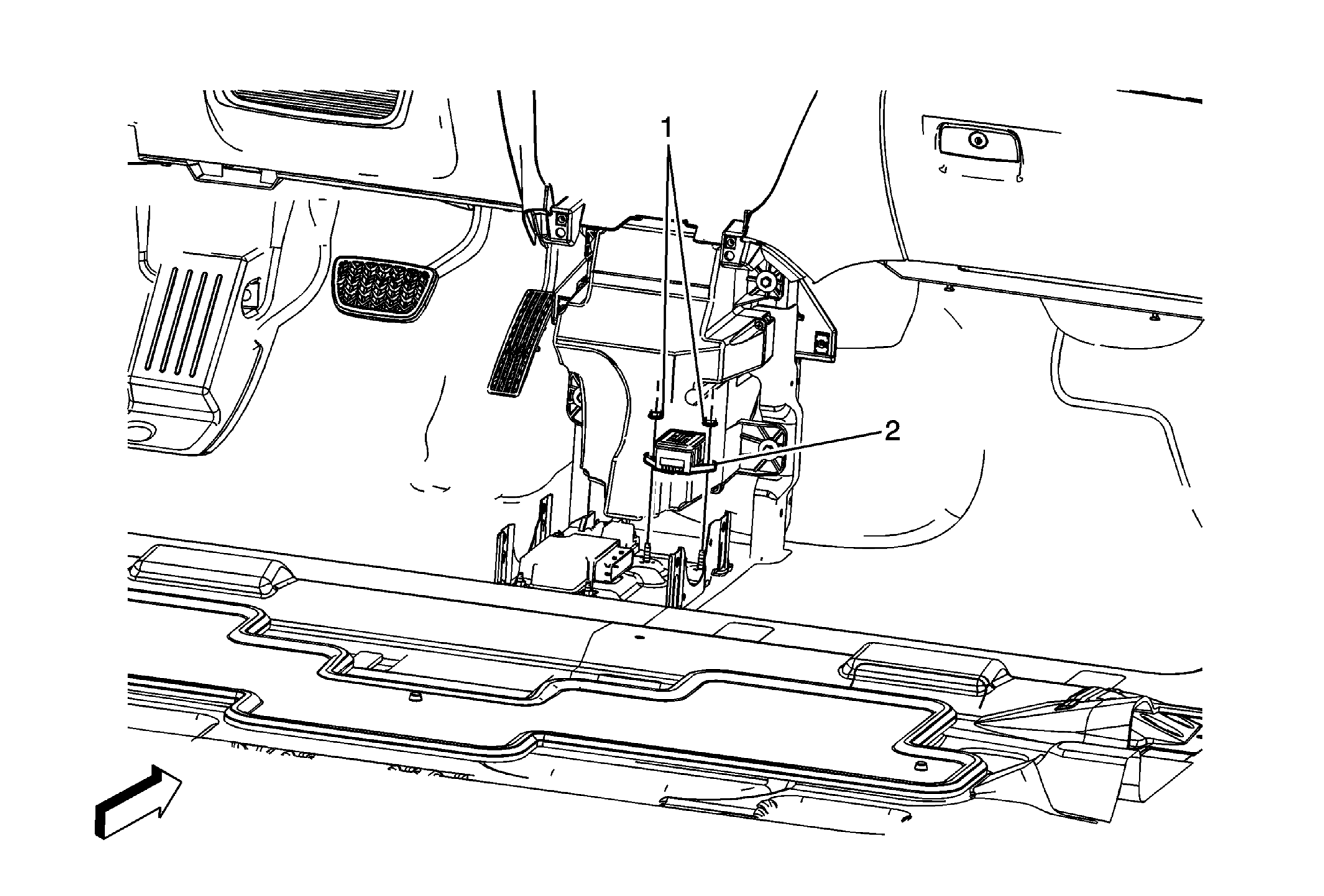

Fig 1: Yaw Sensor with Vehicle Lateral Accelerometer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove front floor console. Refer to Front Floor Console Replacement (Acadia)Front Floor Console Replacement (Enclave)Front Floor Console Replacement (Traverse) .
1	Vehicle Yaw Sensor and Lateral Accelerometer Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb ft)
2	Vehicle Yaw with Vehicle Lateral Accelerometer Sensor Assembly Procedure Disconnect the electrical connector.

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove front floor console. Refer to Front Floor Console Replacement (Acadia)Front Floor Console Replacement (Enclave)Front Floor Console Replacement (Traverse) .

Vehicle Yaw Sensor and Lateral Accelerometer Nut (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb ft)

Vehicle Yaw with Vehicle Lateral Accelerometer Sensor Assembly
Procedure
Disconnect the electrical connector.
