Antilock Brake System
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

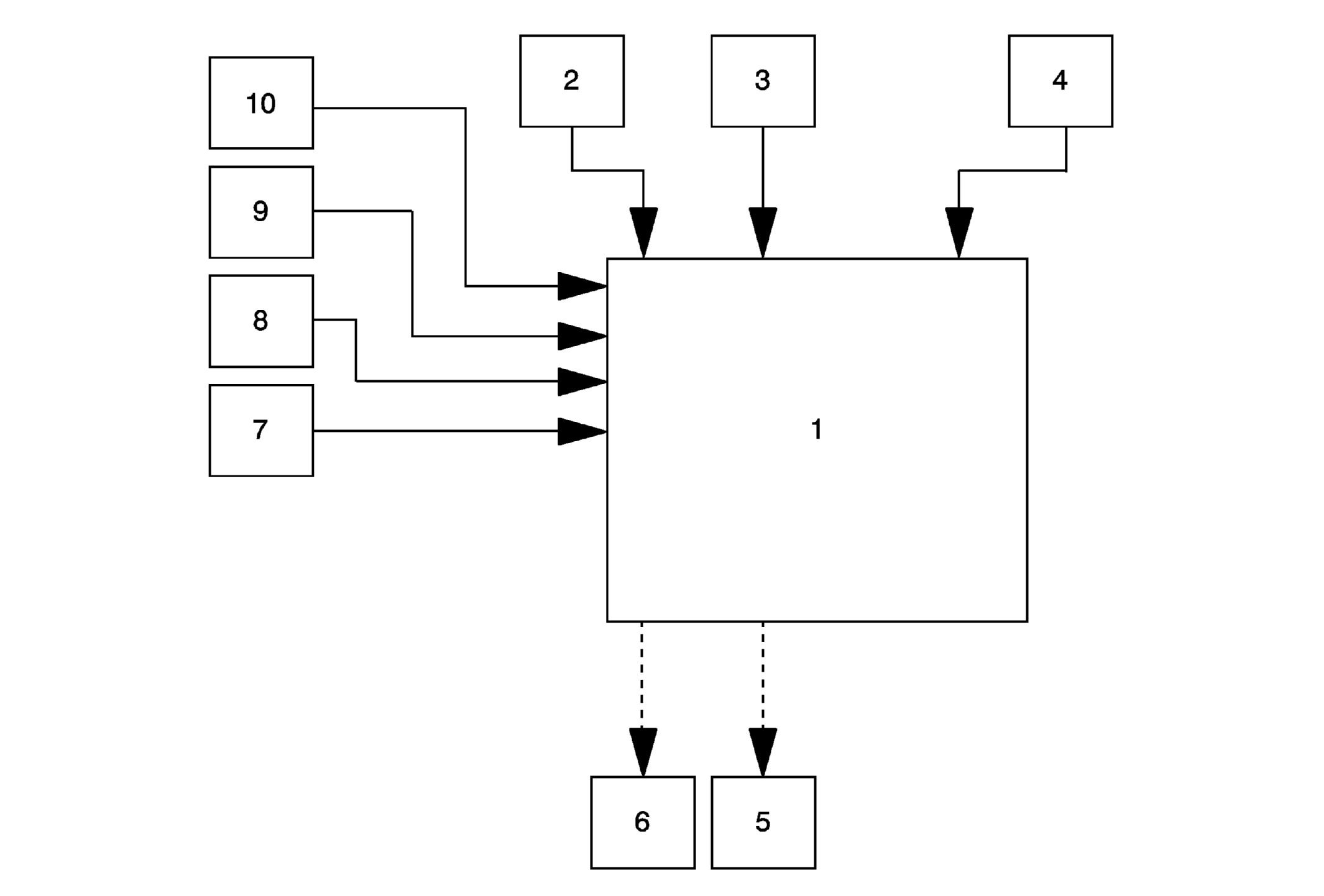

| Solid Line - Hard Wire I/O Dash Line - Serial Data |
|
| 1 | Electronic Brake Control Module (EBCM) |
| 2 | Steering Wheel Speed Position Sensor |
| 3 | Yaw and Lateral Accelerometer Sensor |
| 4 | Brake Booster Vacuum Sensor |
| 5 | Instrument Panel Cluster (IPC) |
| 6 | Body Control Module |
| 7 | Wheel Speed Sensor (WSS)- LF |
| 8 | Wheel Speed Sensor (WSS)- RF |
| 9 | Wheel Speed Sensor (WSS)- LR |
| 10 | Wheel Speed Sensor (WSS)- RR |
The following components are involved in the operation of the above systems.
- ABS pump motor-The ABS pump motor is part of the brake pressure modulator valve. The ABS pump motor is active during ABS, VSES and base brake power assist functions.
- System relays-There are two system relays internal to the EBCM. The solenoid relay is energized when the ignition is ON. The ABS pump motor relay supplies a ground path to the ABS pump motor when the EBCM commands the ABS pump motor on. The system relays are non serviceable.
- Solenoids-The solenoids are commanded ON and OFF by the EBCM to operate the appropriate valves in the brake pressure modulator valve (BPMV).
- Brake booster vacuum sensor-The Brake Booster Vacuum Sensor is a input to EBCM, and operates the ABS pump motor to precharge the brake system.
- Brake pressure modulator valve (BPMV)-The BPMV uses a 4-circuit configuration to control hydraulic pressure to each wheel independently.
The BPMV contains the following components:
- ABS pump motor and pump
- Four inlet valves
- Four outlet valves
- Two TC isolation valves
- Two TC supply valves
- A master cylinder pressure sensor
- A front low-pressure accumulator
- A rear low-pressure accumulator
- Master cylinder pressure sensor-The master cylinder pressure sensor is located within the brake pressure modulator valve. The master cylinder pressure sensor uses a 5-volt reference and generates an output signal proportionate to the hydraulic fluid pressure which is present in the front brake circuit at the master cylinder.
- Steering wheel speed position sensor-The EBCM receives several inputs from the steering wheel position sensor. Three digital square wave signal inputs and one analog signal input are wired directly to the EBCM harness connector. The EBCM uses the signals A and B for determining position movement and uses the analog and index signals to determine absolute center. All signals are monitored for plausibility to each other. The sensor is provided ground and 5-volt power directly from the EBCM.
- Traction control switch-The vehicle stability enhancement system and the engine torque reduction function of traction control system are manually disabled or enabled by pressing the traction control switch.
- Wheel speed sensors (WSS)-EBCM sends a 12-volt reference voltage signal to each wheel speed sensor. As the wheel spins, the wheel speed sensor produces a square wave DC signal voltage. The wheel speed sensor increases the signal frequency as the wheel speed increases, but does not increase the signal amplitude.
- Yaw/lateral accelerometer sensor--The yaw rate, lateral acceleration and longitudinal acceleration sensors are combined into one yaw/lateral accelerometer sensor, external to the EBCM. The EBCM receives serial data message inputs from the yaw rate, lateral acceleration and longitudinal acceleration sensor and activates stability control and hill start assist function depending on multi-axis acceleration sensor input
